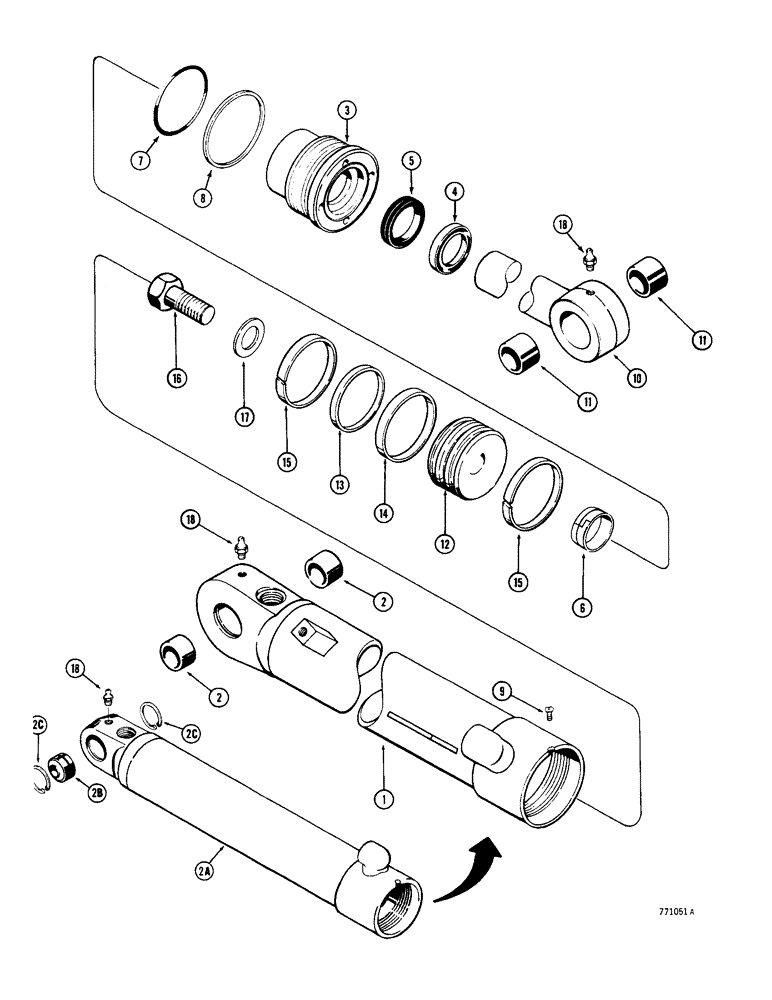

Запчасти Case 350 (310) - G101247 TILT CYLINDER - ANGLE TILT DOZER, G102744 TILT CYLINDER - ANGLE TILT DOZER (07) - HYDRAULIC SYSTEM

G101247

JACK BODY

CYLINDER - 2-1/2" (64 MM) ID x 7-9/16" (192 MM) stroke, Includes: Ref. 1 and 2

1шт.

1

G34422

TUBE

- bushing, Includes: Ref. 2

1шт.

2

D34337

BUSHING

- tube

2шт.

G102744

JACK BODY

CYLINDER - 2-1/2" (64 MM) ID x 7-9/16" (192 MM) stroke, Includes: Ref. 2A - 2C

1шт.

2a

D46621

TUBE - cylinder, Includes: Ref. 2B and 2C

1шт.

2b

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - tube, self-aligning

1шт.

2c

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing 2", Int, #200

2шт.

G33578

GLAND

ASSEMBLY - both cylinders, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95141

WIPER SEAL

WIPER - outer

1шт.

Part of Seal Kit P/N G102407

1шт.

5

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod, see G100775 option

1шт.

Part of Seal Kit P/N G102407

1шт.

Service option P/N G100775 - severe heat or cold

1шт.

6

D27705

WIPER

- inner

1шт.

Part of Seal Kit P/N G102407

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G102407

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G102407

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-locking, no. 8 - 32 NC x 1/4"

1шт.

10

G34425

ROD

- 1-1/4" (32 MM) diameter, Includes: Ref. 11

1шт.

11

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod

2шт.

12

G100708

PISTON

- cylinder

1шт.

13

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING - rubber

1шт.

Part of Seal Kit P/N G102407

1шт.

14

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G102407

1шт.

15

G100714

RING

- wear

2шт.

Part of Seal Kit P/N G102407

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G102407

SEAL

KIT - seal, Includes: Ref. 4 - 8 and 13 - 15

1шт.

G100775

SEAL

- rod, service option - severe heat or cold

1шт.
