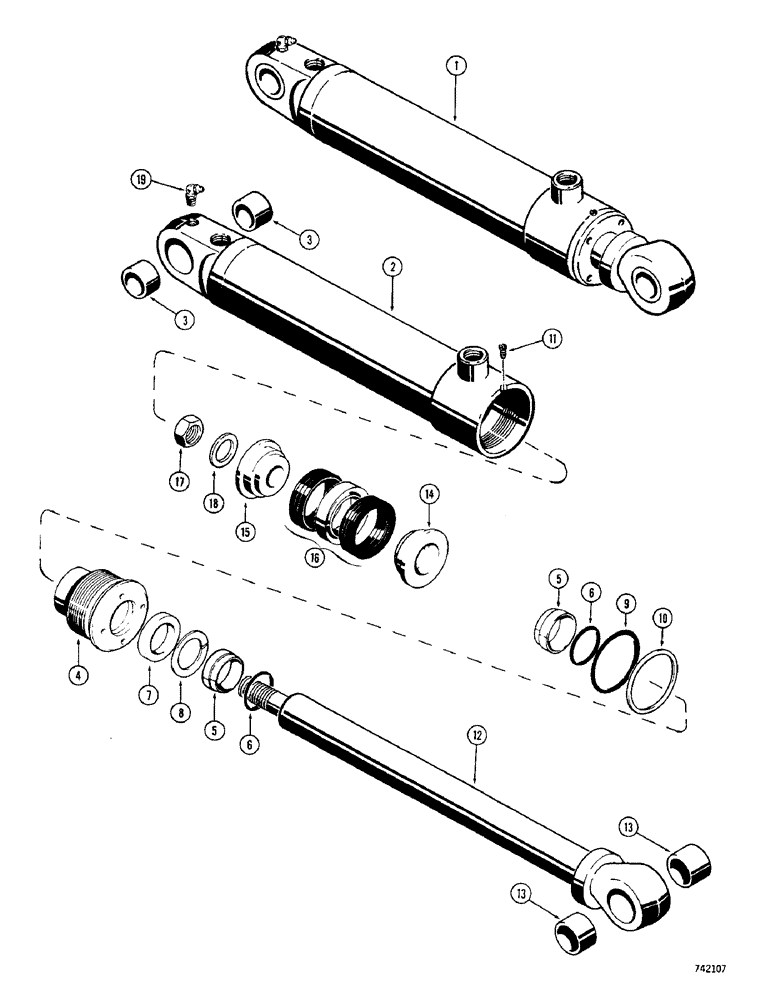

Запчасти Case 350 (308) - D28218 TILT CYLINDER - TILT DOZER, HAS SPLIT INNER AND OUTER ROD WIPERS (07) - HYDRAULIC SYSTEM

1

D28218

CYLINDER ASSY.

CYLINDER - 2-1/2" (64 MM) ID x 4-3/4" (121 MM) stroke, service with G101238 cylinder, Includes: Ref. 2 - 19

1шт.

2

D28254

TUBE - cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

D45065

GLAND

- use G32732 gland, figure 306, Includes: Ref. 5 - 11

1шт.

D42867

GLAND

PACKING KIT - gland

1шт.

5

D27705

WIPER

- piston rod

2шт.

6

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- gland, small, if used

2шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

8

D28497

RING

- backup

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland, large

1шт.

10

D27856

RING

- backup

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

D28251

X

ROD - piston, 1-1/4" (32 MM) diameter, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

D28362

SCREW

- split, rod end

1шт.

15

D28364

PISTON

- split, nut end

1шт.

16

G33193

PACKING

- piston

1шт.

17

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

19

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 65 degree, 1/8" NPT

1шт.

G100775

SEAL

- piston rod, service option - severe heat and cold

1шт.
