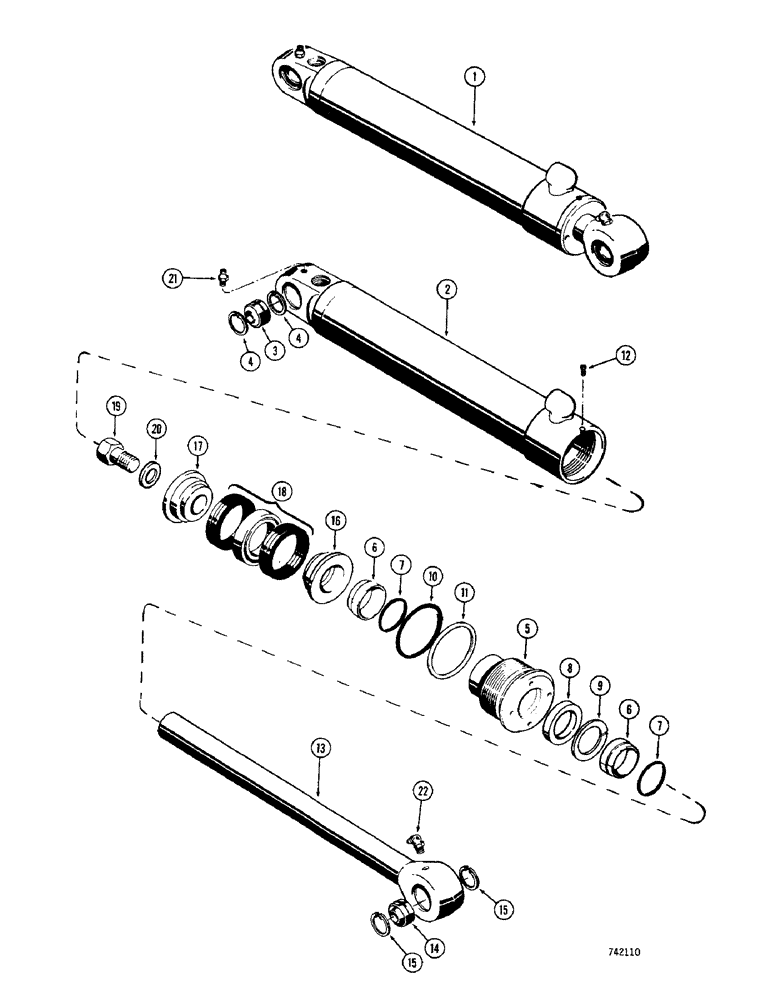

Запчасти Case 350 (300) - D46626 ANGLE CYLINDER - ANGLE TILT DOZER, HAS SPLIT INNER AND OUTER ROD WIPERS (07) - HYDRAULIC SYSTEM

1

D46626

CYLINDER - 3" (76 MM) ID x 8" (203 MM) stroke, service with G101250 cylinder, Includes: Ref. 2 - 22

2шт.

2

D46631

CYLINDER

TUBE - cylinder, Includes: Ref. 3 and 4

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - tube

1шт.

4

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing 2", Int, #200

2шт.

5

D45067

GLAND

- use G32734 gland, figure 298

1шт.

D42870

GASKET KIT

PACKING KIT - gland, Includes: Ref. 7 - 12

1шт.

6

D27706

WIPER SEAL

WIPER - piston rod

2шт.

7

D27878

O-RING,1.609" ID x 1.887" OD

- not used in this cylinder

2шт.

8

D36969

CUP

SEAL - piston rod

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

9

D28498

RING

- piston rod seal backup

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

11

D28049

RING

- backup

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

13

D46627

ROD ASSY.

ROD - piston, 1-1/2" (38 MM) diameter, use G33452 rod, G33485 gland and G33150 piston, figure 296, Includes: Ref. 14 and 15

1шт.

14

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - piston rod

1шт.

15

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing 2", Int, #200

2шт.

16

D28365

PISTON

- split, rod end

1шт.

17

D28366

PISTON

- split, bolt end

1шт.

18

G33151

PACKING

- piston

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
