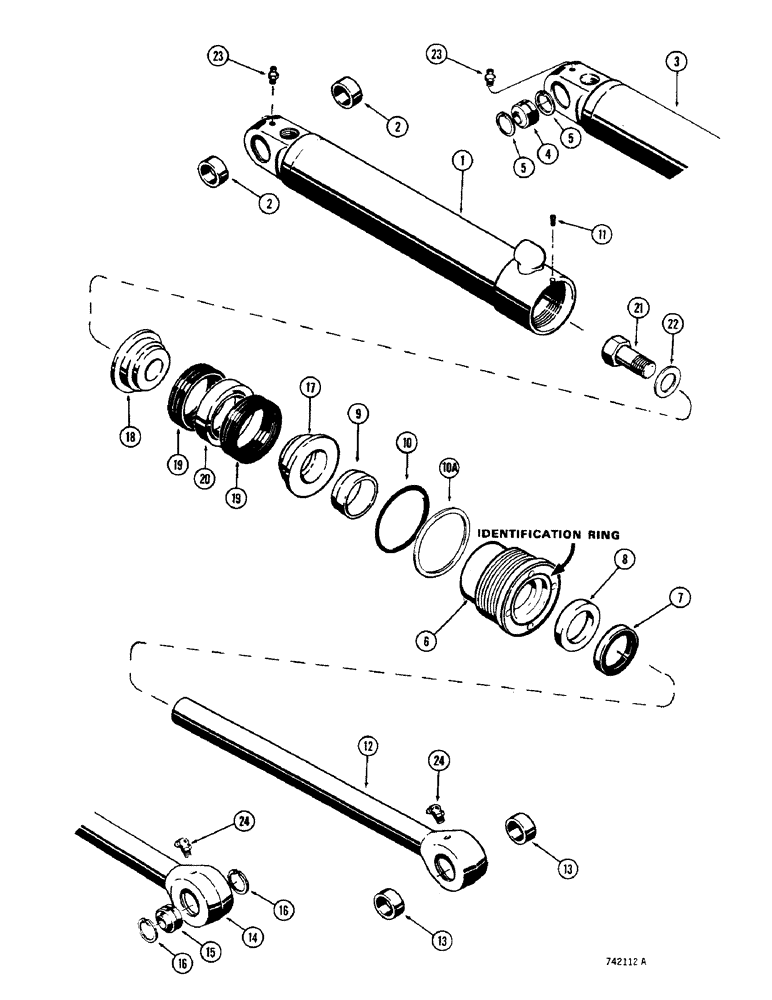

Запчасти Case 350 (296) - G34414 AND G33451 ANGLE CYLINDERS - ANGLE TILT DOZER, HAS SOLID OUTER WIPER & SPLIT INNER WIPER (07) - HYDRAULIC SYSTEM

G34414

- 3" (76 MM) ID x 8" (203 MM) stroke, non-aligning bushing, service with G101250 cylinder, Includes: Ref. 1 and 2

2шт.

1

G34418

TUBE

- G34414 cylinder, Includes: Ref. 2

1шт.

2

D36333

BUSHING,31.98mm ID x 41.27mm OD x 22.1mm L

- tube

2шт.

G33451

CYLINDER

- 3" (76 MM) ID x 8" (203 MM) stroke, self-aligning bushing, service with G101250 cylinder, Includes: Ref. 3 - 24

2шт.

3

D46631

CYLINDER

TUBE - G33451 cylinder, Includes: Ref. 4 and 5

1шт.

4

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - tube

1шт.

5

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing 2", Int, #200

2шт.

G33485

GLAND

ASSEMBLY - cylinder, Includes: Ref. 6 - 10A

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G34332

1шт.

8

D36969

CUP

SEAL - piston rod, see G100776 option

1шт.

Part of Seal Kit P/N G34332

1шт.

9

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of Seal Kit P/N G34332

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- backup

1шт.

Part of Seal Kit P/N G34332

1шт.

10a

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G34415

ROD

- piston, non-aligning bushing, 1-1/2" (38 MM) diameter, Includes: Ref. 13

1шт.

13

D36333

BUSHING,31.98mm ID x 41.27mm OD x 22.1mm L

- rod

2шт.

14

G33452

ROD ASSY.

ROD - piston, self-aligning bushing, 1-1/2" (38 MM) diameter, Includes: Ref. 15

1шт.

15

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - rod

1шт.

16

D28436

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

2шт.

17

G33150

PISTON

- split, rod end

1шт.

18

D28366

PISTON

- split, bolt end

1шт.

G33151

PACKING

ASSEMBLY - piston, Includes: Ref. 19 and 20

1шт.

Part of Seal Kit P/N G34332

1шт.

19

NSS

NOT SOLD SEPARAT

PACKING - piston

2шт.

20

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

21

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

22

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34332

SEAL

KIT - seal, Includes: Ref. 7 - 10 and P/N G33151

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
