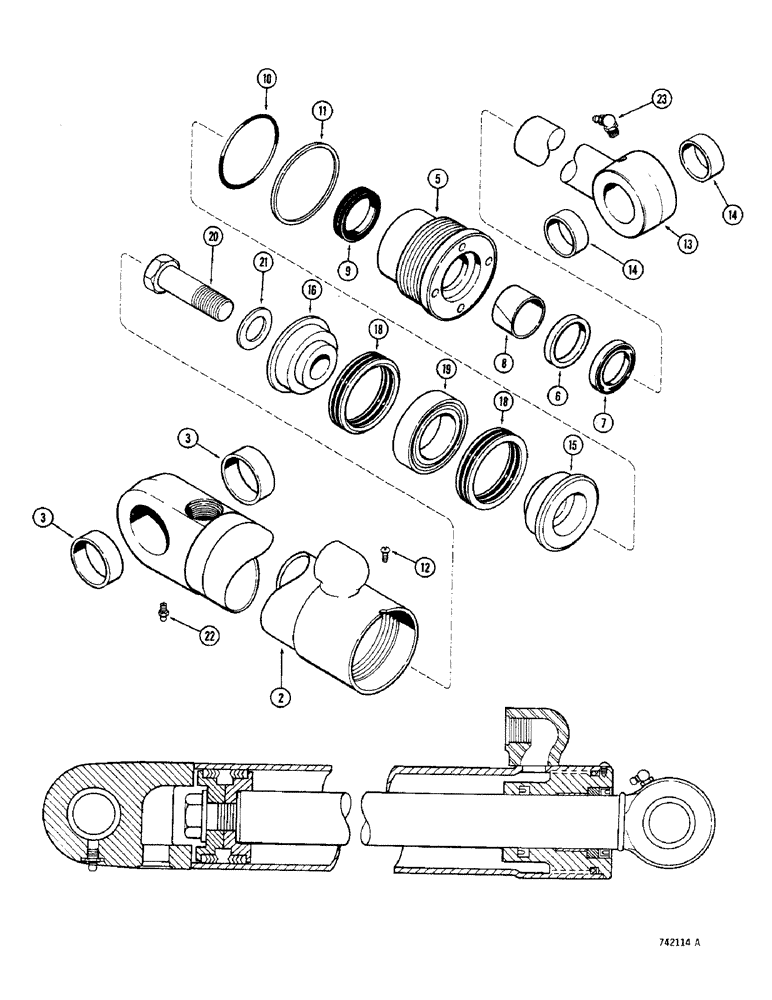

Запчасти Case 350 (294) - G34414 ANGLE CYLINDER - ANGLE TILT DOZER, HAS SINGLE, SOLID ROD WIPER (07) - HYDRAULIC SYSTEM

G34414

- 3" (76 MM) ID x 8" (203 MM) stroke, service with G101250 cylinder, Includes: Ref. 1 - 23

2шт.

2

G34418

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

D36333

BUSHING,31.98mm ID x 41.27mm OD x 22.1mm L

- tube

2шт.

G34328

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G34332

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of Seal Kit P/N G34332

1шт.

9

D36969

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G34332

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G34332

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34332

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G34415

ROD

- piston, 1-1/2" (38 MM) diameter, Includes: Ref. 14

1шт.

14

D36333

BUSHING,31.98mm ID x 41.27mm OD x 22.1mm L

- piston rod

2шт.

15

G33150

PISTON

- split, rod end

1шт.

16

D28366

PISTON

- split, bolt end

1шт.

G33151

PACKING

- piston, Includes: Ref. 18 and 19

1шт.

Part of Seal Kit P/N G34332

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34332

SEAL

KIT - seal, Includes Refs. 7 - 11 and P/N G33151

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
