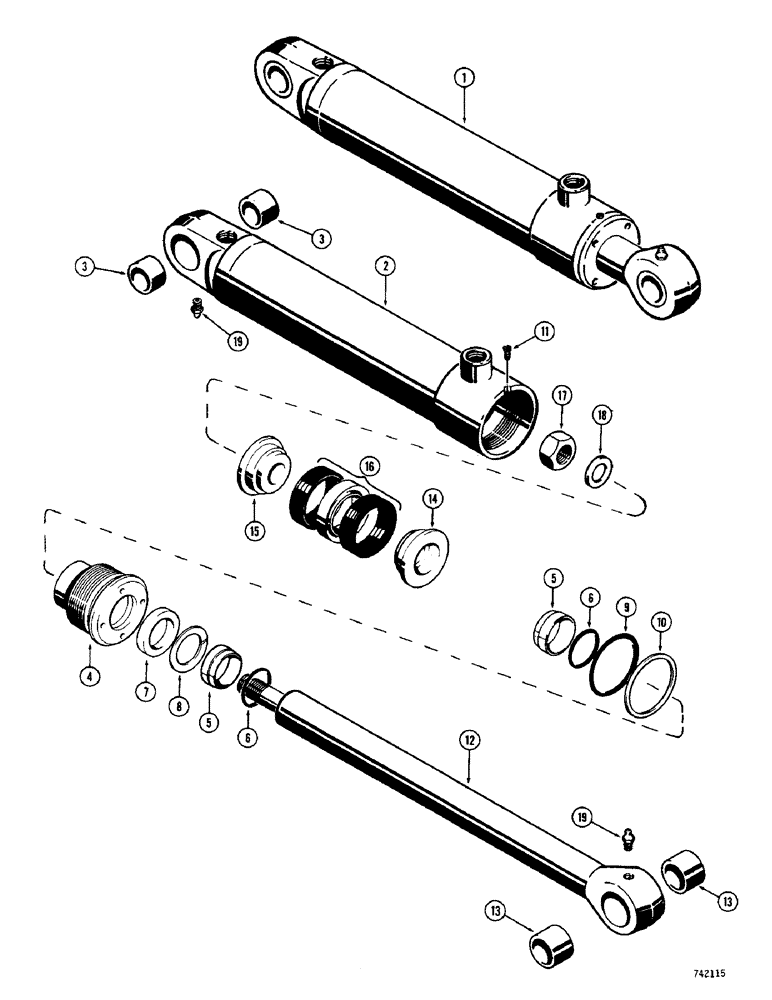

Запчасти Case 350 (290) - D28163 AND D29919 ANGLE CYLINDERS - ANGLE DOZER, HAS SPLIT INNER & OUTER ROD WIPERS (07) - HYDRAULIC SYSTEM

1

D28163

CYLINDER - LH, 3-1/2" (89 MM) ID x 9-5/8" (244 MM) stroke, service with G33528 cylinder, Includes: Ref. 2 - 19

1шт.

1

D29919

CYLINDER

- RH, 3-1/2" (89 MM) ID x 9-5/8" (244 MM) stroke, Includes: Ref. 2 - 19

1шт.

2

D28385

TUBE - D28163 cylinder, Includes: Ref. 3

1шт.

2

D29925

TUBE - D29919 cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

4

D45069

GLAND

- use G32743 gland, see figure 288

1шт.

D42873

GASKET KIT

PACKING KIT - gland, Includes: Ref. 5 - 11

1шт.

5

D27432

SHIM

- piston rod

2шт.

6

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- gland, small

2шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Service option P/N G100777 - severe heat or cold

1шт.

8

D28499

RING

- piston rod seal backup

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland, large

1шт.

10

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

D28167

ROD ASSY.

ROD - piston, 1-3/4" (45 MM) diameter, Includes: Ref. 13

1шт.

13

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

14

D28369

PISTON

- split, rod end

1шт.

15

D28367

PISTON

- split, nut end

1шт.

16

D36963

PACKING

- piston

1шт.

17

131-19

LOCK NUT,1"-14, GB

NUT - lock, 1-1/4" - NF

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.
