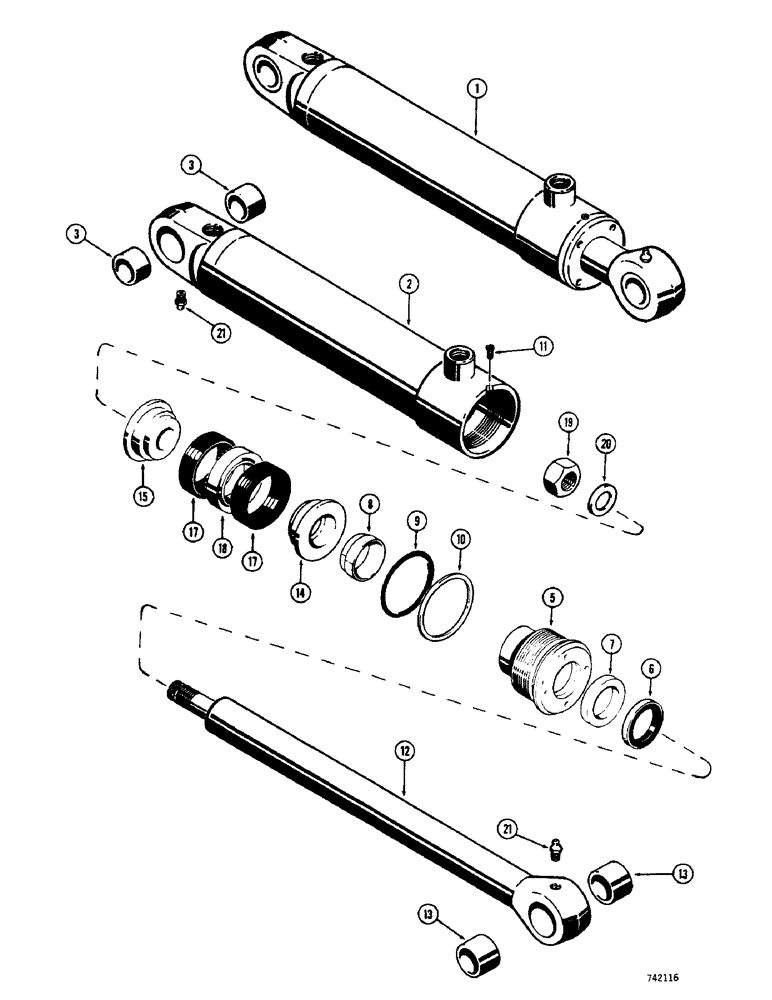

Запчасти Case 350 (288) - G32581 AND G32582 ANGLE CYLINDERS - ANGLE DOZER, HAS SPLIT INNER WIPER AND SOLID OUTER WIPER (07) - HYDRAULIC SYSTEM

1

G32581

CYLINDER

- LH, 3-1/2" (89 MM) ID x 9-5/8" (244 MM) stroke, service with G33528 cylinder, Includes: Ref. 2 - 21

1шт.

1

G32582

CYLINDER

- RH, 3-1/2" (89 MM) ID x 9-5/8" (244 MM) stroke, service with G33529 cylinder, Includes: Ref. 2 - 21

1шт.

2

D28385

TUBE - G32581 cylinder, Includes: Ref. 3

1шт.

2

D29925

TUBE - G32582 cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G32743

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G34622

1шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G34622

1шт.

Service option P/N G100777 - severe heat or cold

1шт.

8

D27432

SHIM

- piston rod, inner

1шт.

Part of Seal Kit P/N G34622

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G34622

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34622

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

D28167

ROD ASSY.

ROD - piston, 1-3/4" (45 MM) diameter, Includes: Ref. 13

1шт.

13

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

14

D28369

PISTON

- split, rod end

1шт.

15

D28367

PISTON

- split, nut end

1шт.

G33237

PACKING

- piston, Includes: Ref. 17 and 18

1шт.

Part of Seal Kit P/N G34622

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

131-19

LOCK NUT,1"-14, GB

NUT - hex, lock, 1-1/4" - NF

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G34622

SEAL

KIT - seal, Includes: Ref. 6 - 10 and P/N G33237

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.
