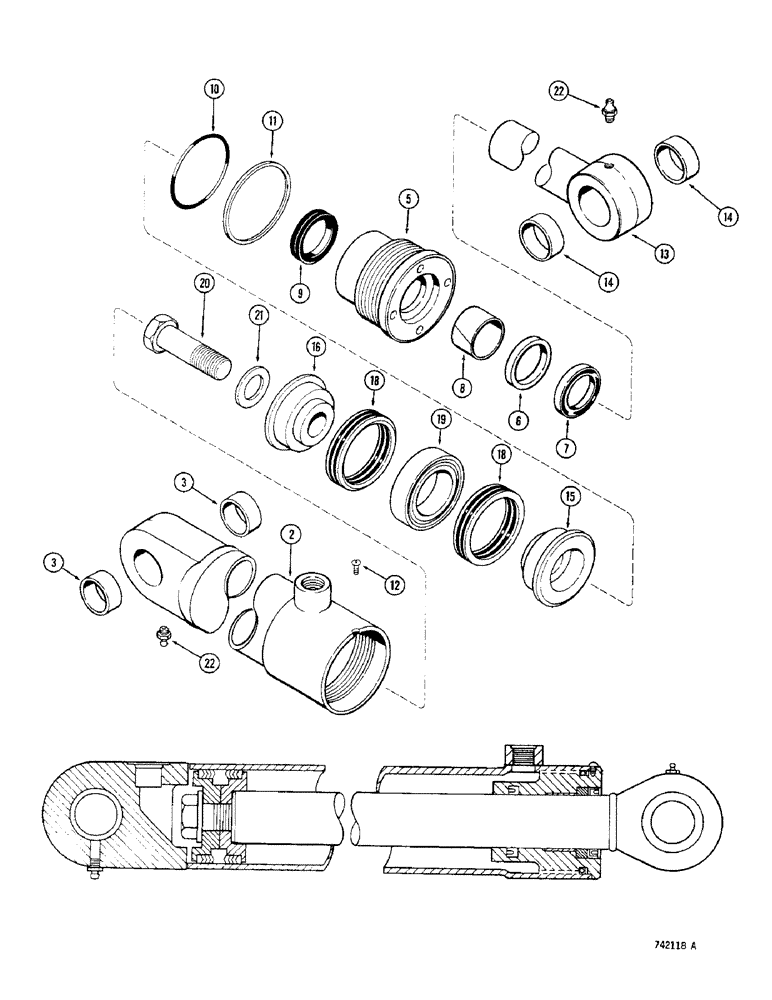

Запчасти Case 350 (284) - G33528 AND G33529 ANGLE CYLINDERS - ANGLE DOZER, HAS SOLID ROD WIPER & TWO PIECE PISTON (07) - HYDRAULIC SYSTEM

G33528

CYLINDER

- LH, 3-1/2" (89 MM) ID x 9-5/8" (244 MM) stroke, Includes: Ref. 2 - 22

1шт.

G33529

CYLINDER

- RH, 3-1/2" (89 MM) ID x 9-5/8" (244 MM) stroke, Includes: Ref. 2 - 22

1шт.

2

D28385

TUBE - G33528 cylinder, Includes: Ref. 3

1шт.

2

D29925

TUBE - G33529 cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G34623

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

G34600

RING

- center bearing

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G34622

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of Seal Kit P/N G34622

1шт.

9

D36970

CUP

SEAL - piston rod, see G100777 option

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G34622

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34622

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G33530

ROD

- piston, 1-3/4" (45 MM) diameter, Includes: Ref. 14

1шт.

14

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

15

G33520

PISTON

- split, rod end

1шт.

16

D28367

PISTON

- split, bolt end

1шт.

G33237

PACKING

- piston, Includes: Ref. 18 and 19

1шт.

Part of Seal Kit P/N G34622

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G34622

SEAL

KIT - seal, Includes: Ref. 7 - 11 and P/N G33237

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.
