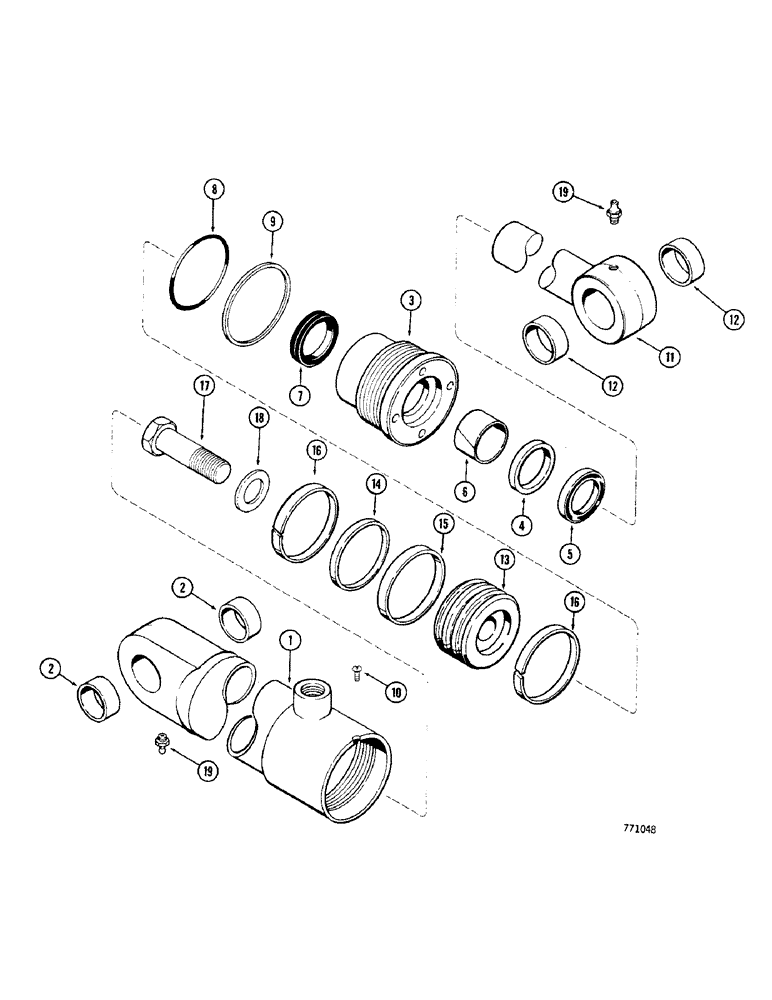

Запчасти Case 350 (282) - G101236 AND G101237 ANGLE CYLINDERS - ANGLE DOZER, HAS ONE PIECE PISTON & STRAIGHT HOSE CONNECTION (07) - HYDRAULIC SYSTEM

G101236

CYLINDER

- RH, 3-1/2" (89 MM) ID x 9-5/8" (244 MM) stroke

1шт.

G101237

CYLINDER

- LH, 3-1/2" (89 MM) ID x 9-5/8" (244 MM) stroke

1шт.

1

D29925

TUBE - G101236 cylinder, Includes: Ref. 2 - 19

1шт.

1

D28385

TUBE - G101237 cylinder, Includes: Ref. 2 - 19

1шт.

2

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- all tubes

2шт.

G34623

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G34600

RING

- center bearing

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod

1шт.

Part of Seal Kit P/N G102410

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - gland

1шт.

Part of Seal Kit P/N G102410

1шт.

7

D36970

CUP

SEAL - rod

1шт.

Part of Seal Kit P/N G102410

1шт.

Service option P/N G100777 - severe heat or cold

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G102410

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G102410

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G33530

ROD

- 1-3/4" (45 MM) diameter, Includes: Ref. 12

1шт.

12

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- rod

2шт.

13

G100698

PISTON

- cylinder

1шт.

14

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- rubber

1шт.

Part of Seal Kit P/N G102410

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G102410

1шт.

16

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit P/N G102410

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G102410

SEAL

KIT - seal, Includes: Ref. 5 - 9 and 14 - 16

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- rod, service option - severe heat or cold

1шт.
