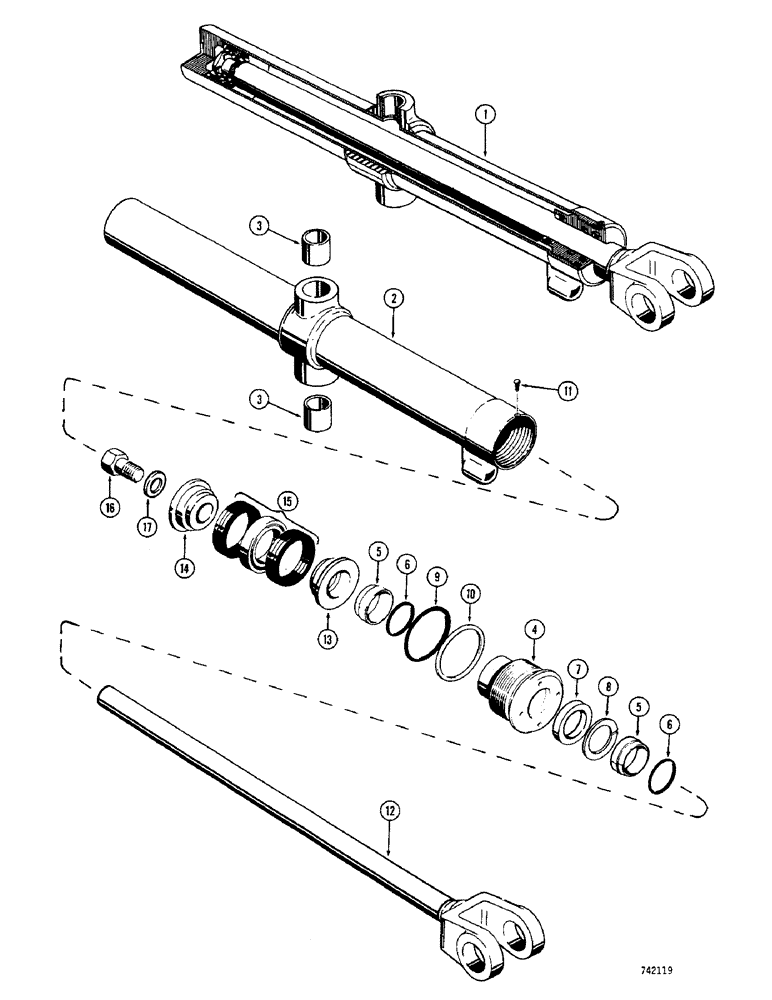

Запчасти Case 350 (280) - D46473 DOZER LIFT CYL. - ANGLE TILT DOZER USED BEFORE TRAC. S/N 6047966 (07) - HYDRAULIC SYSTEM

1

D46473

CYLINDER - lift, 2-1/2" (64 MM) ID x 25-1/2" (648 MM) stroke, service with G101244 cylinder, Includes: Ref. 2 - 17

2шт.

2

D46613

TUBE - cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnion

2шт.

4

D45065

GLAND

- use G32732 gland, figure 276

1шт.

D42867

GLAND

PACKING KIT - gland, Includes: Ref. 5 - 11

1шт.

5

D27705

WIPER

- piston rod, split type

2шт.

6

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- not used in this cylinder

2шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Service option P/N G100775 - severe heat or cold

1шт.

8

D28497

RING

- backup

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

10

D27856

RING

- backup

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

D46474

ROD ASSY.

ROD - piston, 1-1/4" (32 MM) diameter

1шт.

13

NLS

NO LONGER SERVICED

- split, rod end

1шт.

14

D28364

PISTON

- split, bolt end

1шт.

15

G33193

PACKING

- piston

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G100775

SEAL

- piston rod, service option - severe heat or cold

1шт.
