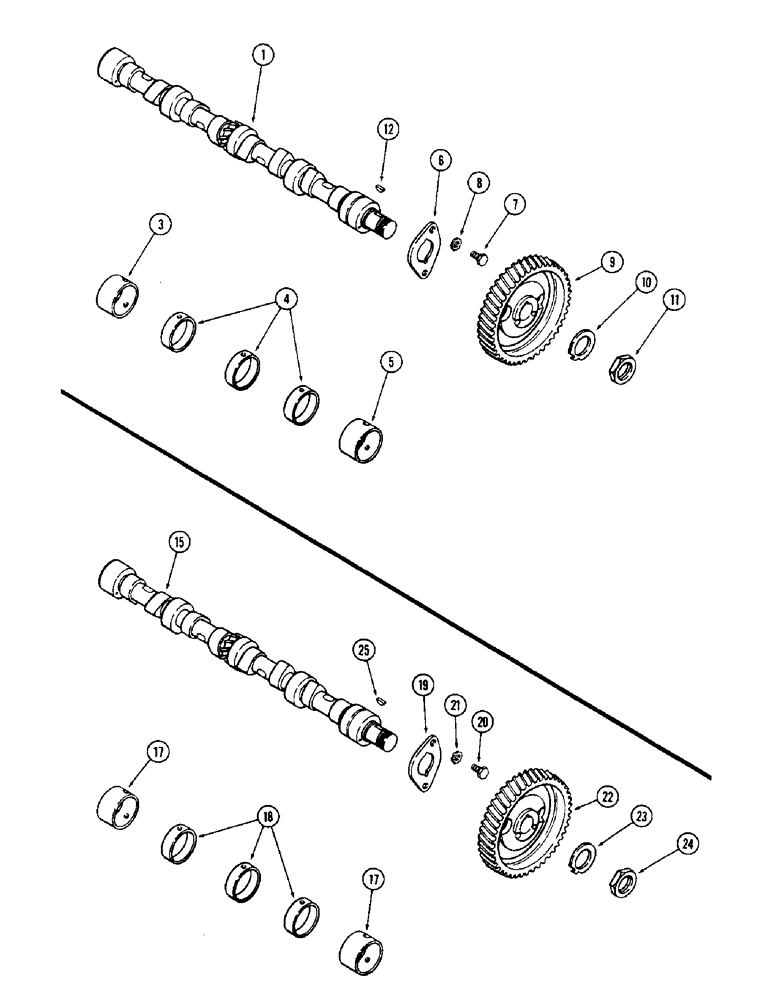

Запчасти Case 350 (020) - CAMSHAFT, 188 DIESEL ENGINE, USED ENGINE SERIAL NO. 2859526 AND AFTER (01) - ENGINE

1

A39013

CAM

SHAFT

1шт.

A151075

BUSHING

KIT - camshaft, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear, 1" wide (With two oil holes)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, 1/2" wide (With one oil hole)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front, 1-1/4" wide (With two oil holes)

1шт.

6

A29290

PLATE

- thrust, camshaft

1шт.

7

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate

2шт.

8

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

9

A38931

GEAR

- camshaft

1шт.

10

A29438

LOCK NUT

WASHER - lock, camshaft nut (Tab type)

1шт.

11

A30063

NUT

- camshaft gear retaining

1шт.

12

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

15

A39013

CAM

SHAFT, used before engine s/n 2859526

1шт.

A42746

CAM

BUSHING KIT - camshaft (Order A151075), used before engine s/n 2859526, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - front and rear, 1-1/4" wide (With two oil holes), used before engine s/n 2859526

2шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - center, 1/2" wide (With one oil hole), used before engine s/n 2859526

3шт.

19

A29290

PLATE

- thrust, camshaft, used before engine s/n 2859526

1шт.

20

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate, used before engine s/n 2859526

2шт.

21

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Used before engine S/N 2859526 Ext Tooth, 5/16"

2шт.

22

A38931

GEAR

- camshaft, used before engine s/n 2859526

1шт.

23

A29438

LOCK NUT

WASHER - lock, camshaft nut (Tab type), used before engine s/n 2859526

1шт.

24

A30063

NUT

- camshaft gear retaining, used before engine s/n 2859526

1шт.

25

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear, Used before engine S/N 2859526 #6, 5/32" x 5/8"

1шт.
