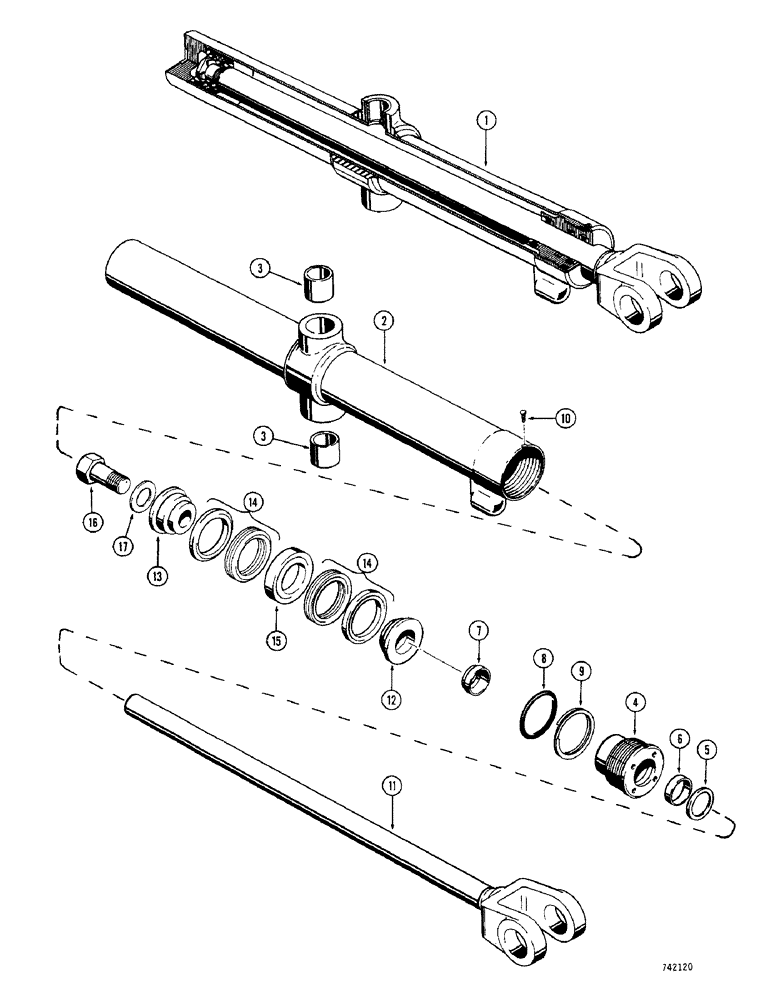

Запчасти Case 350 (276) - G32149 DOZER LIFT CYLINDER ANGLE TILT DOZER USED BEFORE TRACTOR SN 3047966, NO GLAND I.D. RING, (07) - HYDRAULIC SYSTEM

1

G32149

CYLINDER

- 2-1/2" (64 MM) ID x 25-1/2" (648 MM) stroke, service with G101244 cylinder, Includes: Ref. 2 - 17

2шт.

2

D46613

TUBE - cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnion

2шт.

4

G32732

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G32295

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Part of Seal Kit P/N G32295

1шт.

Service option P/N G100775 - severe heat or cold

1шт.

7

D27705

WIPER

- piston rod, inner

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G32295

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G32295

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

8 - 32 NC x 1/4"

14шт.

11

D46474

ROD ASSY.

ROD - piston, 1-1/4" (32 MM) diameter

1шт.

12

D28362

SCREW

- split, rod end

1шт.

13

D28364

PISTON

- split, bolt end

1шт.

14

G33193

PACKING

- piston, Includes: Ref. 14 and 15

1шт.

Part of Seal Kit P/N G32295

1шт.

14

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

15

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G32295

GASKET KIT

KIT - seal, Includes: Ref. 5 - 6, 8 - 9 and P/N G33193

1шт.

G100775

SEAL

- piston rod, service option - severe heat or cold

1шт.
