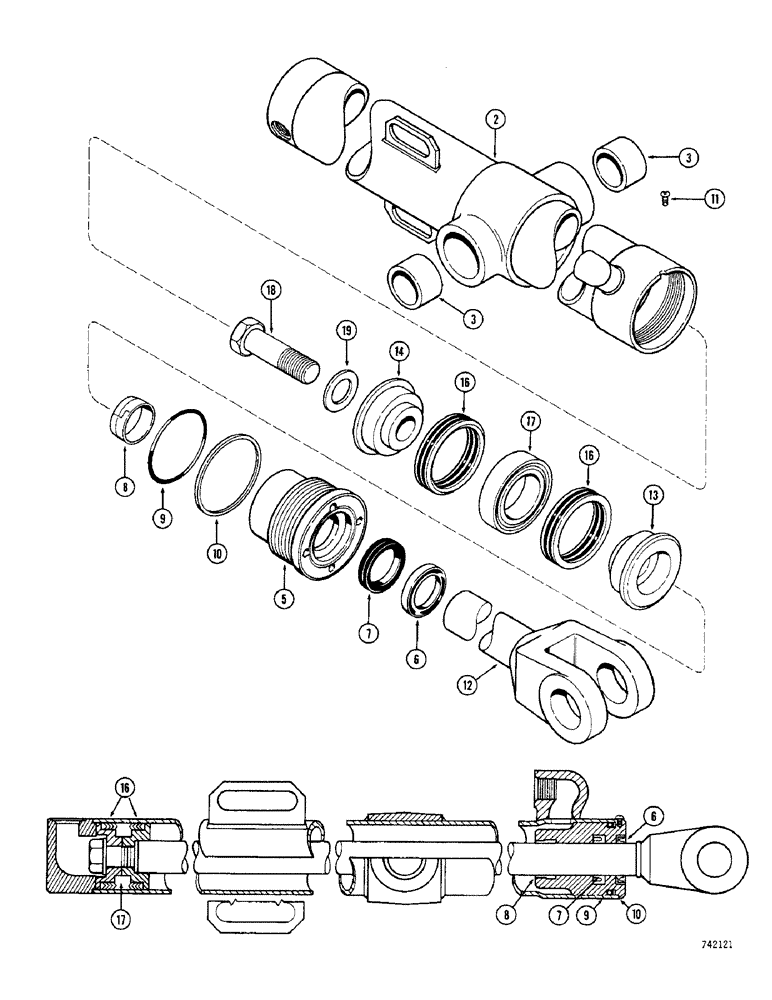

Запчасти Case 350 (274) - G33399 & G33400 DOZER LIFT CYL. - ANGLE TILT DOZER USED TRAC.SN3047966 & AFTER TWO PIECE PISTON (07) - HYDRAULIC SYSTEM

G33399

CYLINDER

- RH, 2-1/2" (64 MM) ID x 25-1/2" (648 MM), service with one G101244 cylinder, Includes: Ref. 2 - 19

1шт.

G33400

CYLINDER

- LH, 2-1/2" (64 MM) ID x 25-1/2" (648 MM), Includes: Ref. 2 - 19

1шт.

2

G33410

TUBE - G33399 cylinder, Includes: Ref. 3

1шт.

2

G33411

TUBE - G33400 cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnion

2шт.

5

G33578

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N G32295

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Part of Seal Kit P/N G32295

1шт.

Service option P/N G100775 - severe heat or cold

1шт.

8

D27705

WIPER

- piston rod, inner

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G32295

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G32295

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

8 - 32 x 1/4"

1шт.

12

G33407

ROD

- piston, 1-1/4" (32 MM) diameter

1шт.

13

G33347

PISTON ASSY.

PISTON - split, rod end

1шт.

14

D28364

PISTON

- split, bolt end

1шт.

16

G33193

PACKING

- piston, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit P/N G32295

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G32295

GASKET KIT

KIT - seal, Includes: Ref. 6 - 7, 9 - 10 and P/N G33193

1шт.

G100775

SEAL

- piston rod, service option - severe heat or cold

1шт.
