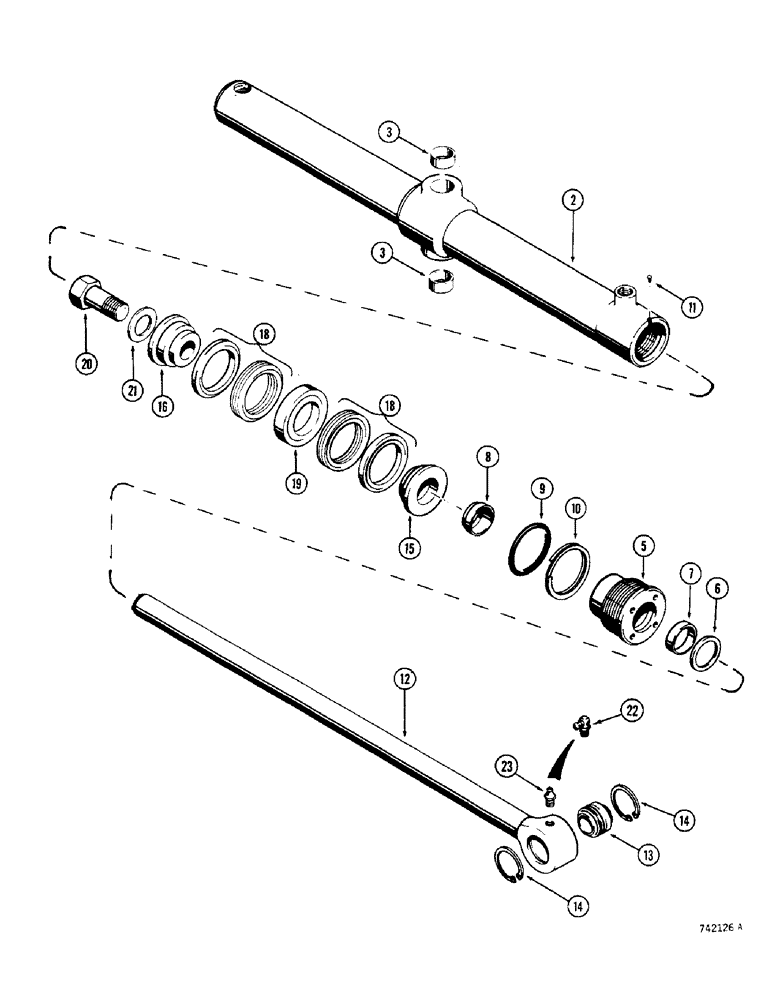

Запчасти Case 350 (266) - G33361 LIFT CYL.- PWR.TILT DOZER, G33357 LIFT CYL.-PWR.ANGLE DOZ.G33362 LIFT CYL. - MECH.ANGLE DOZER (07) - HYDRAULIC SYSTEM

G33361

CYLINDER

- power tilt dozer, lift 2-1/2" (64 MM) ID x 25-1/2" (648 MM) stroke, service with G101240 cylinder, Includes: Ref. 2 - 23

2шт.

G33357

CYLINDER

- power angle dozer, lift, 2-1/2" (64 MM) ID x 25-1/2" (648 MM) stroke, Includes: Ref. 2 - 23

2шт.

G33362

CYLINDER

- mechanical angle dozer, lift, 2-1/2" (64 MM) ID x 27-3/8" (696 MM) stroke, Includes: Ref. 2 - 23

2шт.

2

D30075

TUBE - G33361 cylinder, Includes: Ref. 3

1шт.

2

D28257

TUBE - G33357 cylinder, Includes: Ref. 3

1шт.

2

D27837

TUBE - G33362 cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- all tubes

2шт.

4

G33578

GLAND

ASSEMBLY - not shown, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G32295

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Part of Seal Kit P/N G32295

1шт.

Service option P/N G100775 - severe heat or cold

1шт.

8

D27705

WIPER

- piston rod, inner, split type

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G32295

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- gland, O-ring backup

1шт.

Part of Seal Kit P/N G32295

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

8 - 32 NC x 1/4"

1шт.

12

G33358

ROD

- piston, 1-1/4" (32 MM) diameter, G33361 and G33357 cylinder, Includes: Ref. 13 and 14

1шт.

12

G33363

ROD

- piston, 1-1/4" (32 MM) diameter, G33362 cylinder, Includes: Ref. 13 and 14

1шт.

13

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - both piston rods, self-aligning

1шт.

14

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , bushing 1.625", Int, #162

2шт.

15

G33347

PISTON ASSY.

PISTON - split, rod end

1шт.

16

D28364

PISTON

- split, bolt end

1шт.

17

G33193

PACKING

- piston, not shown, Includes: Ref. 18 and 19

1шт.

Part of Seal Kit P/N G32295

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

G33357 and G33361 cylinders, Not shown

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

straight, G33362 cylinder

1шт.

G32295

GASKET KIT

KIT - seal, Includes: Ref. 6 - 7, 9 - 10 and 17

1шт.

G100775

SEAL

- piston rod, service option - severe heat or cold

1шт.
