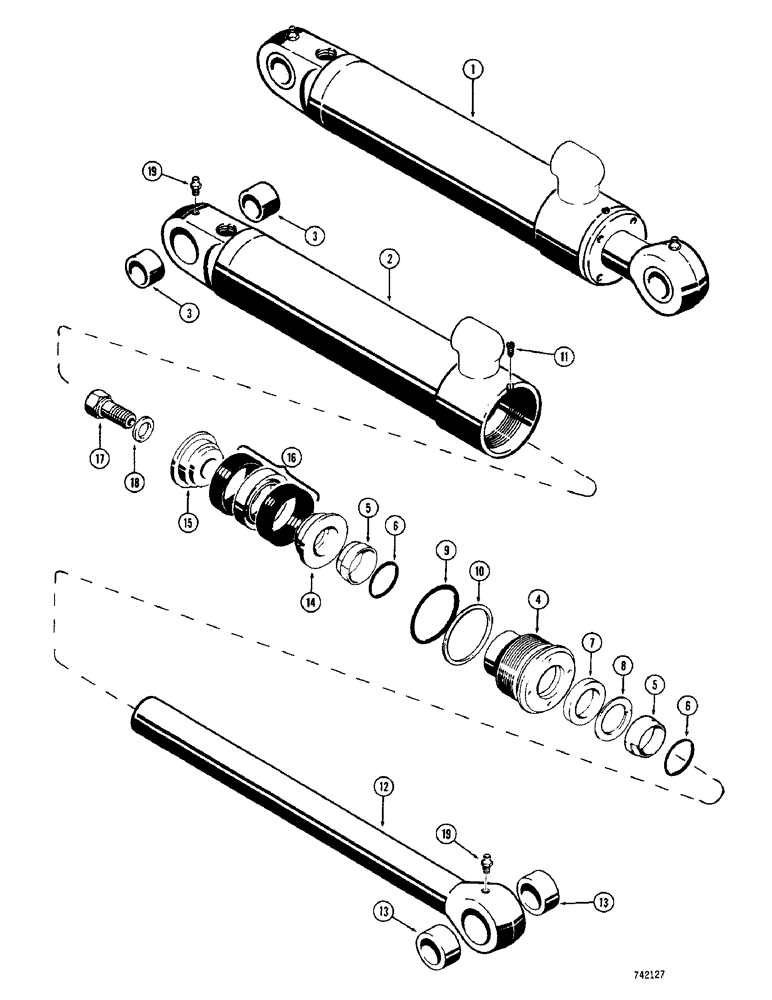

Запчасти Case 350 (262) - D46134 LOADER GRAPPLE CYLINDER, HAS SPLIT INNER AND OUTER WIPER (07) - HYDRAULIC SYSTEM

1

G46134

CYLINDER - 2-1/2" (64 MM) ID x 9" (229 MM) stroke, service with G34293 cylinder, Includes: Ref. 2 - 19

1шт.

2

D46135

TUBE - cylinder body, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

D45066

GLAND

- use G32733 gland, figure 260, ref 27

1шт.

D42869

GASKET KIT

PACKING KIT - gland, Includes: Ref. 5 - 11

1шт.

5

D27706

WIPER SEAL

WIPER - piston rod, inner and outer

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

- gland, small

2шт.

7

D36969

CUP

SEAL - piston rod, see G100776 option

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

8

D28498

RING

- piston rod seal backup

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland, large

1шт.

10

D27856

RING

- backup

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

D46137

ROD ASSY.

ROD ASSEMBLY - piston, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

D28363

PISTON

- split, rod end

1шт.

15

D28364

PISTON

- split, bolt end

1шт.

16

G33193

PACKING

- piston

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
