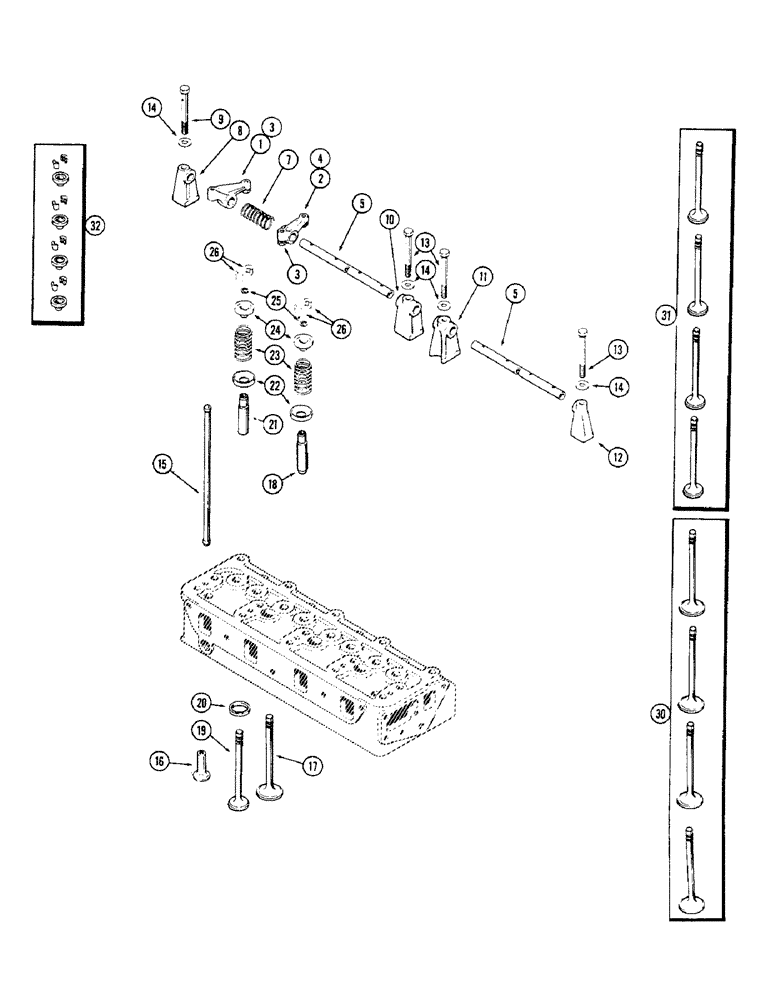

Запчасти Case 350 (018) - VALVE MECHANISM, 188 DIESEL ENGINE (01) - ENGINE

1

A51149

ARM

ASSEMBLY - rocker, left hand, with adjusting screw (Replaces G45771)

4шт.

2

A51148

ARM

ASSEMBLY - rocker, right hand, with adjusting screw (Replaces G45700)

4шт.

5

A38181

SHAFT

- rocker arm

2шт.

7

G48501

SPRING

- rocker arm shaft

4шт.

8

A36615

BRACKET

- rear, rocker arm shaft

1шт.

9

G49067

BOLT

- drilled, rear bracket

1шт.

10

G2101

BRACKET

- center, rocker arm shaft

1шт.

11

A51084

BRACKET

- intermediate (Replaces G2102)

2шт.

12

G2100

BRACKET

- front, rocker arm shaft

1шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 2-1/2" NC hex

4шт.

14

A30058

WASHER

- bracket bolt (3/8 x 7/8 x 1/8")

5шт.

15

G47079

ROD

- push

8шт.

16

G47077

TAPPET

LIFTER - push rod

8шт.

17

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 31)

4шт.

18

G2068

GUIDE

- intake valve stem

4шт.

19

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 30)

4шт.

20

A39268

INSERT

- exhaust valve seat

4шт.

21

G2069

GUIDE

- exhaust valve stem

4шт.

22

G49065

SEAT

- valve spring

8шт.

23

A30025

SPRING

- valve

8шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (Order ref. 32)

8шт.

25

G46851

SEAL

- rubber, valve stem

8шт.

26

A30004

RETAINER

LOCK - retainer

16шт.

30

A41727

VALVE

S - exhaust (Set of 4)

1шт.

31

A41726

VALVE

S - intake (Set of 4)

1шт.

32

G11927

RETAINER

S - valve spring (Set of 4 retainers and 8 locks)

2шт.
