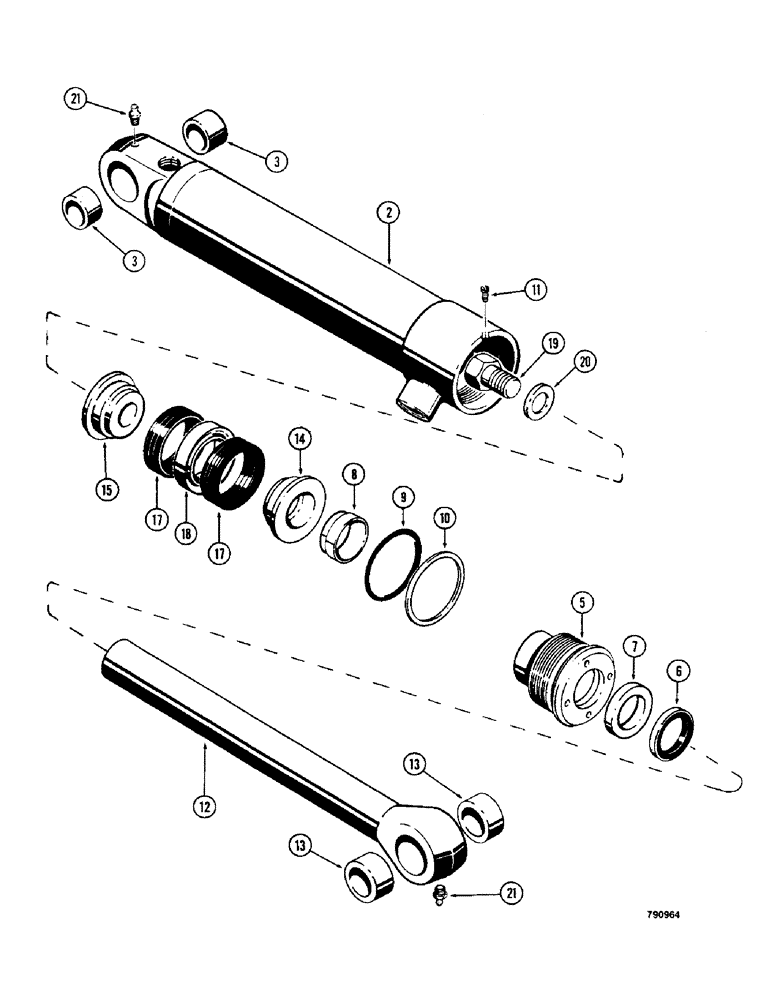

Запчасти Case 350 (257A) - G32286 & G32287 BUCKET CLAM CYLS., W/SOLID OUTER WIPER & SPLIT INNER WIPER W/O GLAND CENTER BEARING (07) - HYDRAULIC SYSTEM

1

G32287

CYLINDER - RH, 3" (76 MM) ID x 9" (229 MM) stroke, not shown, service with G101190 cylinder, Includes: Ref. 2 - 21

1шт.

1

G32286

CYLINDER

- LH, 3" (76 MM) ID x 9" (229 MM) stroke, not shown, service with G33799 cylinder, Includes: Ref. 2 - 21

1шт.

2

G32305

HYD TUBE,435.1 mm L

TUBE - G32287 cylinder, Includes: Ref. 3

1шт.

2

G32304

HYD TUBE

TUBE - G32286 cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

G32735

ASSEMBLY - not shown, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - see inset B

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G34642

1шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G34642

1шт.

Service option P/N G100777 - severe heat or cold

1шт.

8

D27432

SHIM

- piston rod, inner

1шт.

Part of Seal Kit P/N G34642

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G34642

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34642

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G32307

ROD

- piston, 1-3/4" (44 MM) diameter, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

D28897

PISTON

- split, rod end

1шт.

15

D28896

PISTON

- split, bolt end

1шт.

16

G33151

PACKING

- piston, Includes: Ref. 17 and 18

1шт.

Part of Seal Kit P/N G34642

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, hardened Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G34642

SEAL

KIT - seal, includes Refs. 6 - 10 and 16

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option, severe heat or cold

1шт.
