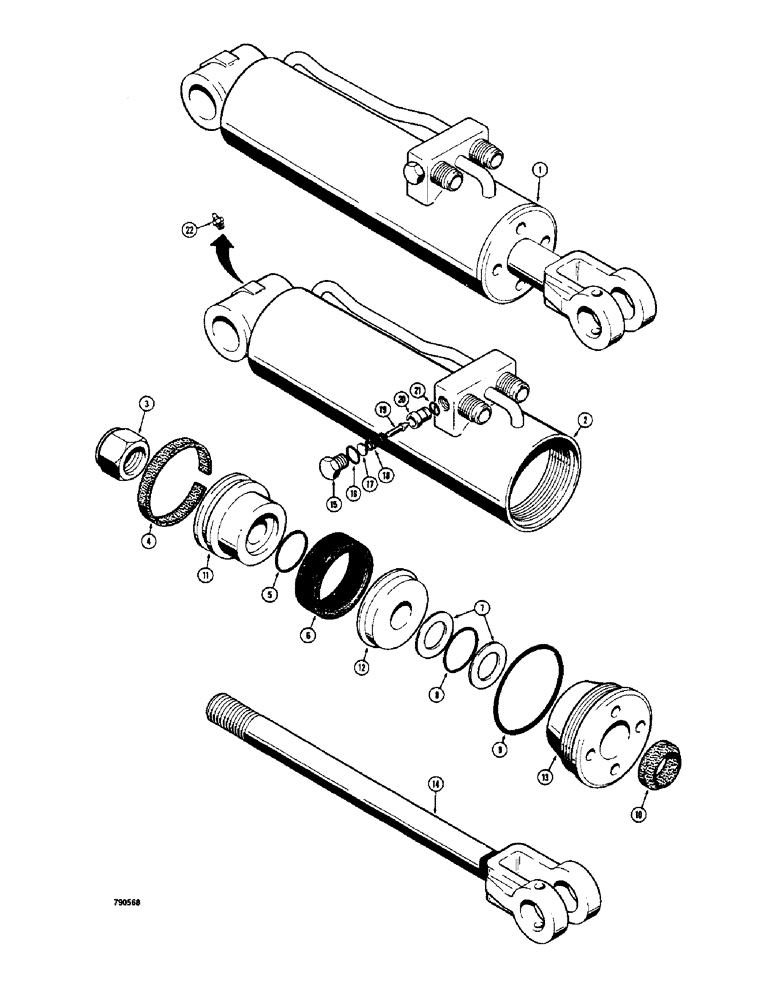

Запчасти Case 350 (250) - D35616 DROTT CLAM CYLINDER, WITH RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

D35616

CYLINDER

- clam, 3-1/2" (88.9 MM) ID x 9-3/4" (247.7 MM) stroke, service with G101190 cylinder, Includes: Ref. 2 - 22

1шт.

2

D34459

TUBE - cylinder

1шт.

D35644

CYLINDER

KIT - cylinder, Includes: Ref. 3 - 10

1шт.

3

131-21

LOCK NUT,1 1/8"-12, GB

NUT - nylon self-locking, 1-1/8" - 13 NF

1шт.

4

A18693

RING

- wear

1шт.

5

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- piston, nut end

1шт.

6

A18684

PACKING

- piston

1шт.

7

A18686

WASHER

- leather

2шт.

8

A18687

O-RING

- gland, small

1шт.

9

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

- gland, large

1шт.

10

A18690

RING

- wiper, piston rod

1шт.

11

A18682

PISTON

- half, nut end

1шт.

12

D35619

PISTON - half, rod end

1шт.

13

A18689

GLAND

- cylinder

1шт.

14

D34460

ROD

- piston

1шт.

15

D35624

CAP - relief valve

1шт.

16

D35651

X

O-RING - relief valve cap

1шт.

17

D35625

RING

SHIM - relief valve

1шт.

18

D35626

SPRING

- relief valve

1шт.

19

D26267

PLUNGER

- relief valve

1шт.

20

D35628

SEAT

- relief valve

1шт.

21

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- relief valve seat

1шт.

22

219-11

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" NPT, if used

1шт.
