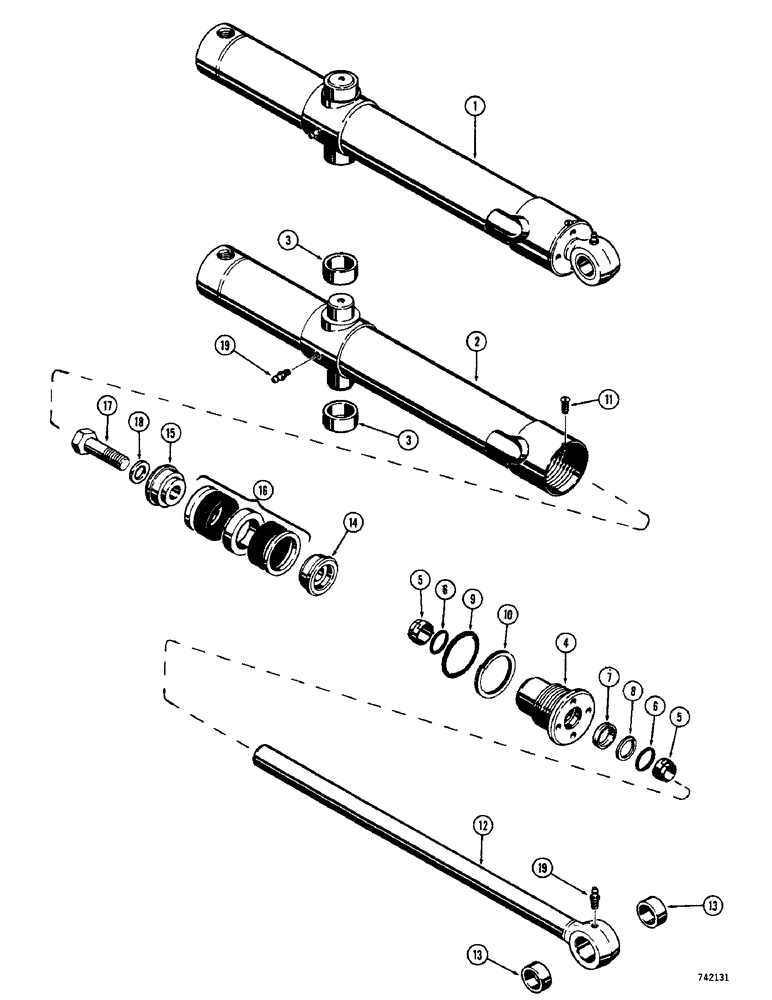

Запчасти Case 350 (248) - D49294 AND D49295 BUCKET TILT CYLINDERS, HAS SPLIT INNER AND OUTER WIPERS (07) - HYDRAULIC SYSTEM

1

D49294

CYLINDER - LH, 2-1/2" (64 MM) ID x 26" (660 MM) stroke, service with G33431 cylinder, Includes: Ref. 2 - 19

1шт.

1

D49295

CYLINDER

- RH, 2-1/2" (64 MM) ID x 26" (660 MM) stroke, service with G33432 cylinder, Includes: Ref. 2 - 19

1шт.

2

D49292

TUBE - D49294 cylinder, Includes: Ref. 3

1шт.

2

D49293

BODY

TUBE - D49295 cylinder, Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube

2шт.

4

D45066

GLAND

- use G32733 assembly, figure 246, ref 27

1шт.

D42869

GASKET KIT

PACKING KIT - gland, Includes: Ref. 5 - 11

1шт.

5

D27706

WIPER SEAL

WIPER - piston rod

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

- wiper

2шт.

7

D36969

CUP

SEAL - piston rod

1шт.

8

D28498

RING

- piston seal backup

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

14шт.

10

D27856

RING

- backup

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

D49290

PISTON ROD

ROD - piston, 1-1/2" (38 MM) diameter, Includes: Ref. 13

1шт.

13

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod

2шт.

14

D28363

PISTON

- split, rod end

1шт.

15

D28364

PISTON

- split, bolt end

1шт.

16

G33193

PACKING

ASSEMBLY - cylinder

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

2шт.
