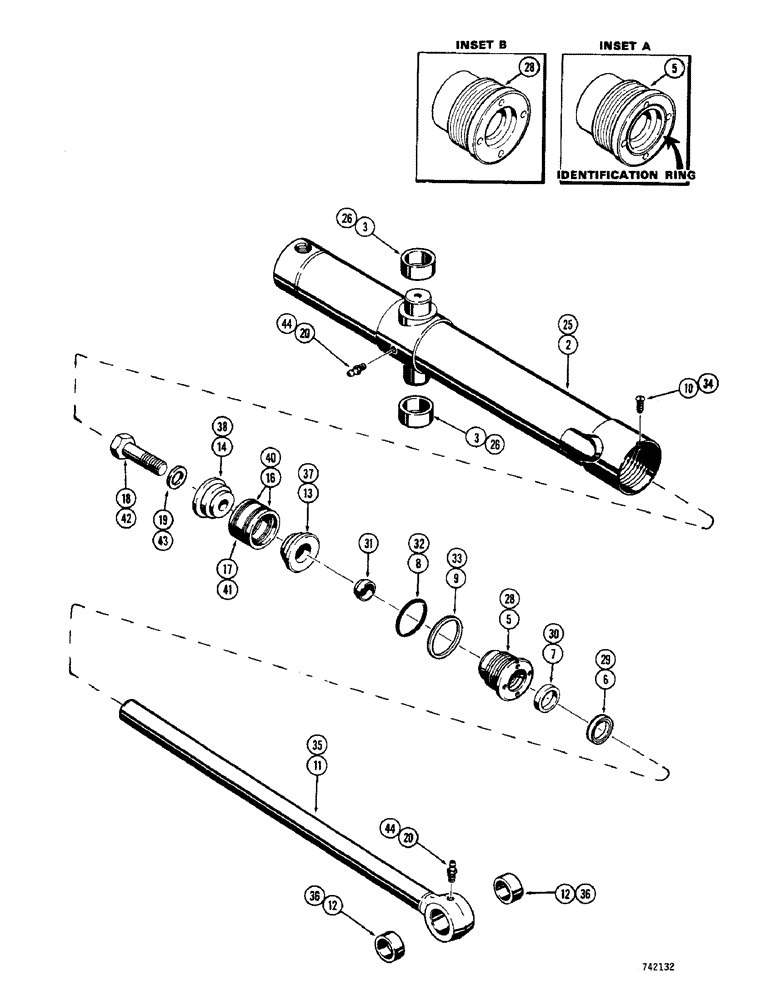

Запчасти Case 350 (246) - G33431, G33432, G32462 AND G32463 BUCKET TILT CYLINDERS (07) - HYDRAULIC SYSTEM

1

G33431

CYLINDER BLOCK

CYLINDER - LH, 2-1/2" (64 MM) ID x 26" (660 MM) stroke, has single, solid rod wiper, Includes: Ref. 2 - 20

1шт.

1

G33432

CYLINDER BLOCK

CYLINDER - RH, 2-1/2" (64 MM) ID x 26" (660 MM) stroke, has single, solid rod wiper, Includes: Ref. 2 - 20

1шт.

2

D49292

TUBE - G33431 cylinder, has single, solid rod wiper, Includes: Ref. 3

1шт.

2

D49293

BODY

TUBE - G33432 cylinder, has single, solid rod wiper, Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube trunnions, has single, solid rod wiper

2шт.

4

G33487

GLAND

ASSEMBLY - not shown, has single, solid rod wiper, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder, has single, solid rod wiper

1шт.

Look for identification ring on gland.

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, has single, solid rod wiper

1шт.

Part of Seal Kit P/N G32294

1шт.

7

D36969

CUP

SEAL - piston rod, has single, solid rod wiper

1шт.

Part of Seal Kit P/N G32294

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland, has single, solid rod wiper

1шт.

Part of Seal Kit P/N G32294

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, has single, solid rod wiper

1шт.

Part of Seal Kit P/N G32294

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4", has single, solid rod wiper

1шт.

11

G33433

ROD

- piston, 1-1/2" (38 MM) diameter, has single, solid rod wiper, Includes: Ref. 12

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod, has single, solid rod wiper

2шт.

13

G33419

PISTON

- split, rod end, has single, solid rod wiper

1шт.

14

D28364

PISTON

- split, bolt end, has single, solid rod wiper

1шт.

15

G33193

PACKING

ASSEMBLY - not shown, has single, solid rod wiper, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit P/N G32294

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type, has single, solid rod wiper

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing, has single, solid rod wiper

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8, has single, solid rod wiper

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, has single, solid rod wiper

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, has single, solid rod wiper

2шт.

23

G32462

CYLINDER

- LH, 2-1/2" (64 MM) ID x 26" (660 MM) stroke, service with G33431 cylinder, has split inner wiper and solid outer wiper, Includes: Ref. 25 - 44

1шт.

24

G32463

CYLINDER - RH, 2-1/2" (64 MM) ID x 26" (660 MM) stroke, service with G33432 cylinder, has split inner wiper and solid outer wiper, Includes: Ref. 25 - 44

1шт.

25

D49292

TUBE - G32462 cylinder, has split inner wiper and solid outer wiper, Includes: Ref. 26

1шт.

25

D49293

BODY

TUBE - G32463 cylinder, has split inner wiper and solid outer wiper, Includes: Ref. 26

1шт.

26

D31511

BUSHING

- tube trunnion, has split inner wiper and solid outer wiper

2шт.

27

G32733

GLAND

ASSEMBLY - not shown, has split inner wiper and solid outer wiper, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

GLAND - see inset B, has split inner wiper and solid outer wiper

1шт.

29

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer, solid type, has split inner wiper and solid outer wiper

1шт.

Part of Seal Kit P/N G32294

1шт.

30

D36969

CUP

SEAL - piston rod, has split inner wiper and solid outer wiper

1шт.

Part of Seal Kit P/N G32294

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

31

D27706

WIPER SEAL

WIPER - piston rod, inner, has split inner wiper and solid outer wiper

1шт.

32

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland, has split inner wiper and solid outer wiper

1шт.

Part of Seal Kit P/N G32294

1шт.

33

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, has split inner wiper and solid outer wiper

1шт.

Part of Seal Kit P/N G32294

1шт.

34

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 x 1/4", has split inner wiper and solid outer wiper

1шт.

35

D49290

PISTON ROD

ROD - piston, 1-1/2" (38 MM) diameter, has split inner wiper and solid outer wiper, Includes: Ref. 36

1шт.

36

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod, has split inner wiper and solid outer wiper

2шт.

37

D28363

PISTON

- split, rod end, has split inner wiper and solid outer wiper

1шт.

38

D28364

PISTON

- split, bolt end, has split inner wiper and solid outer wiper

1шт.

39

G33193

PACKING

ASSEMBLY - not shown, has split inner wiper and solid outer wiper, Includes: Ref. 40 and 41

1шт.

Part of Seal Kit P/N G32294

1шт.

40

NSS

NOT SOLD SEPARAT

PACKING - V-type, has split inner wiper and solid outer wiper

2шт.

41

NSS

NOT SOLD SEPARAT

RING - center bearing, has split inner wiper and solid outer wiper

1шт.

42

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8, has split inner wiper and solid outer wiper

1шт.

43

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, has split inner wiper and solid outer wiper

1шт.

44

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, has split inner wiper and solid outer wiper

2шт.

G32294

SEAL

KIT - seal, Includes: Ref. 6 - 9, 15, 29, 30, 32, 33 and 39, has split inner wiper and solid outer wiper

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold, has split inner wiper and solid outer wiper

1шт.
