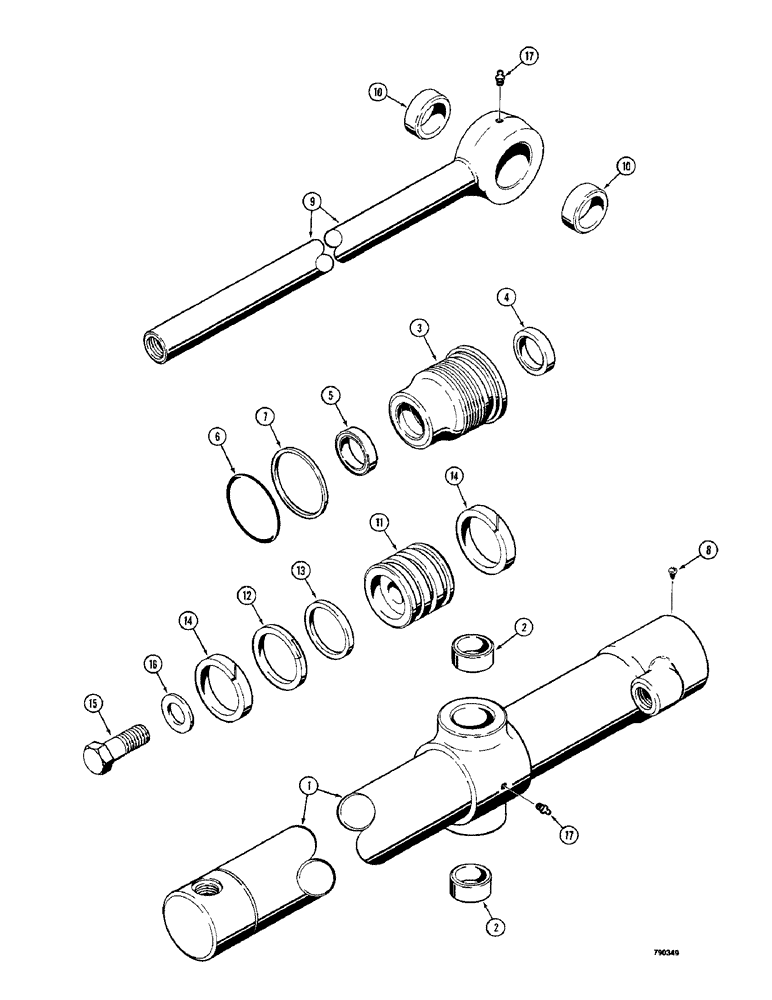

Запчасти Case 350 (244) - G101248 AND G101249 BUCKET TILT CYLINDERS, HAS ONE PIECE PISTON (07) - HYDRAULIC SYSTEM

G101249

CYLINDER BLOCK

CYLINDER - LH, 2-1/2" (64 MM) ID x 26" (660 MM) stroke, Includes: Ref. 1 - 17

1шт.

G101248

CYLINDER ASSY.

CYLINDER - RH, 2-1/2" (64 MM) ID x 26" (660 MM) stroke, Includes: Ref. 1 - 17

1шт.

1

D49292

TUBE - G101249 cylinder, Includes: Ref. 2

1шт.

1

D49293

BODY

TUBE - G101248 cylinder, Includes: Ref. 2

1шт.

2

D31511

BUSHING

- both tubes

2шт.

G33487

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, solid type

1шт.

Part of Seal Kit P/N G102406

1шт.

5

D36969

CUP

SEAL rod

1шт.

Part of Seal Kit P/N G102406

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

6

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G102406

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G102406

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

9

G33433

ROD

- 1-1/2" (38 MM) diameter, Includes: Ref. 10

1шт.

10

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- rod

2шт.

11

G100706

PISTON

- cylinder

1шт.

12

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING - rubber

1шт.

Part of Seal Kit P/N G102406

1шт.

13

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G102406

1шт.

14

G100714

RING

- wear

1шт.

Part of Seal Kit P/N G102406

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G102406

SEAL

KIT - seal, Includes: Ref. 4 - 7 and 12 - 14

1шт.

G100776

SEAL

- rod, service option - severe heat or cold

1шт.
