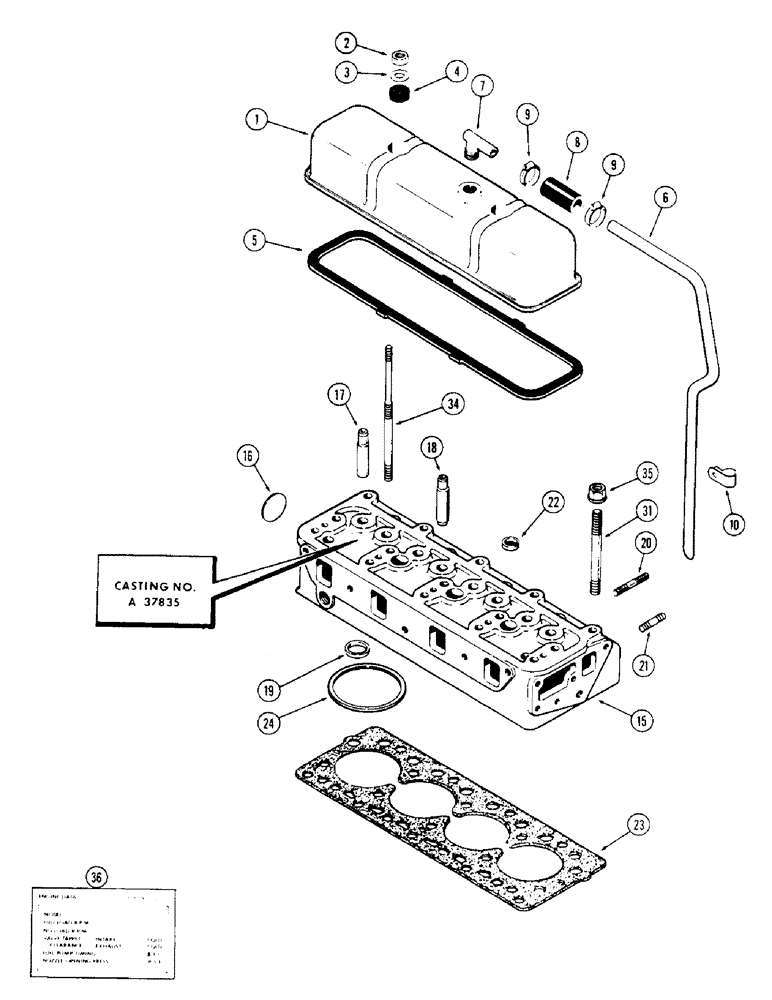

Запчасти Case 350 (016) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE, WITH CYLINDER HEAD STUDS USED PRIOR TO ENG. S/N27411005 (01) - ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

25-106

NUT,3/8"-16, G5

- cover (3/8" NC hex)

2шт.

3

G49400

WASHER

- cover nut (3/8 x 1-1/8 x 1/8")

2шт.

4

A142098

GROMMET

- cover (Rubber) (Replaces G46867)

2шт.

5

A43030

GASKET,3.05mm Thk

- cover to head (Replaces G46886)

1шт.

6

D35014

TUBE

- breather

1шт.

7

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

8

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

-, Serial Range: tube-engine

1шт.

15

A37856

CYLINDER HEAD

HEAD ASSEMBLY - cylinder (Casting no. A37835) (Order A150385) (See figure 14), Includes: Ref. 16 - 22

1шт.

16

A39242

PLUG

- rear (1-3/4" expansion type)

1шт.

17

G2069

GUIDE

- exhaust valves

4шт.

18

G2068

GUIDE

- intake valves

4шт.

19

A39268

INSERT

- exhaust valve seat

4шт.

20

A39129

STUD

- manifold, clamps (3/8" NC x 2-1/16")

6шт.

21

A29431

STUD

- manifold, ends (3/8" NC x 1-3/4")

4шт.

22

41-1016

PLUG,Cup, 1"

- top (1" cup type)

3шт.

23

A38640

- cylinder head (Order A148745)

1шт.

24

A38639

RING

- fire (Standard) (Order A148745, See figure 14)

4шт.

24

A38651

RING

- fire (Oversize) (Black color code)

4шт.

31

A36904

STUD

- cylinder head (1/2" NC x 4")

4шт.

31

A36902

STUD

- cylinder head (1/2" NC x 5-5/8")

11шт.

31

A36905

STUD

- cylinder head (1/2" NC x 6-1/8")

2шт.

34

A36903

STUD

- head and cover (1/2" NC and 3/8" NC x 9-7/16")

2шт.

35

A37030

FLANGE NUT

- head studs (1/2" NC hex, flanged)

1шт.

36

321-1635

DECAL - engine data

1шт.
