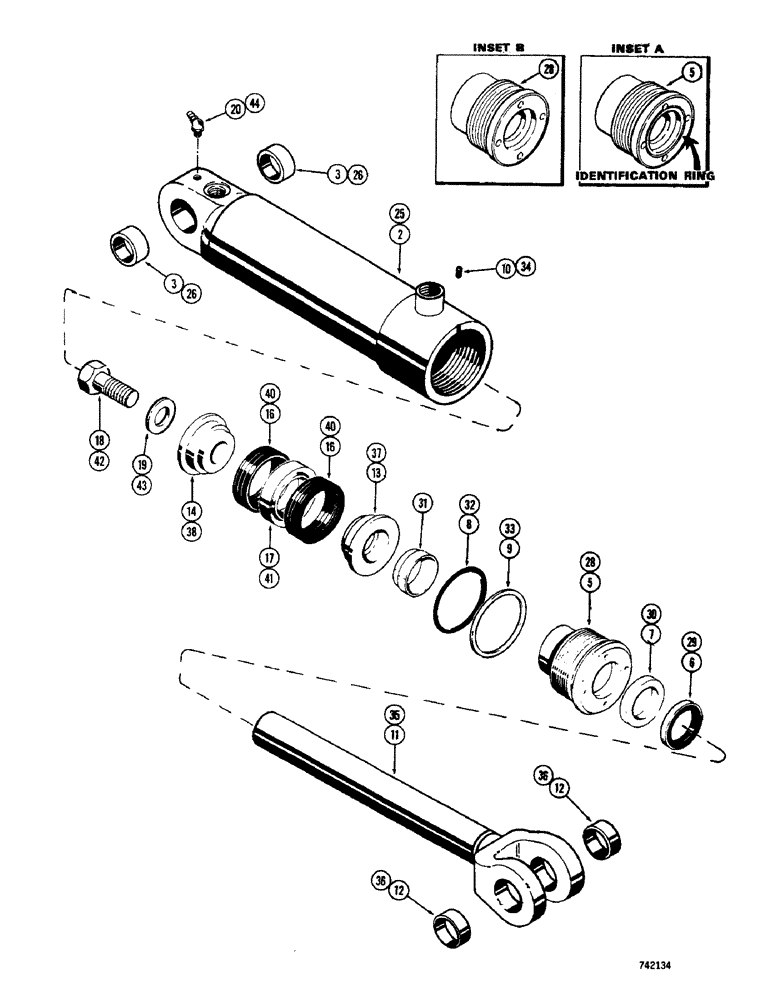

Запчасти Case 350 (238) - G33426 LOADER HYDRA-LEVELING CYLINDER, HAS SINGLE, SOLID ROD WIPER (07) - HYDRAULIC SYSTEM

1

G33426

HYD TUBE,20.25" L

CYLINDER - 2-1/2" (64 MM) dia x 9" (229 MM) stroke, not shown, Includes: Ref. 2 - 20

2шт.

2

D33197

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

4

G33487

GLAND

ASSEMBLY - not shown, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - see inset A

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, solid type

1шт.

Part of Seal Kit P/N G32294

1шт.

7

D36969

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G32294

1шт.

Service option P/N G100776 - severe heat or cold

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G32294

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G32294

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G33427

ROD

- piston, 1-1/2" (38 MM) diameter, Includes: Ref. 12

1шт.

12

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- piston rod

2шт.

13

G33419

PISTON

- split, rod end

1шт.

14

D28364

PISTON

- split, bolt end

1шт.

15

G33193

PACKING

ASSEMBLY - piston, not shown, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit P/N G32294

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

24

G32460

CYLINDER - 2-1/2" (64 MM) dia x 9" (229 MM) stroke, not shown, service with G33426 cylinder, Includes: Ref. 25 - 44

2шт.

25

D33197

TUBE

- cylinder, Includes: Ref. 26

1шт.

26

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

27

G32733

GLAND

ASSEMBLY - not shown, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

GLAND - see inset B

1шт.

29

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer, solid type

1шт.

Part of Seal Kit P/N G32294

1шт.

30

D36969

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G32294

1шт.

31

D27706

WIPER SEAL

WIPER - piston rod, inner, split type

1шт.

32

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G32294

1шт.

33

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G32294

1шт.

34

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

35

D33817

PISTON ROD

ROD - piston, 1-1/2" (38 MM) diameter, Includes: Ref. 36

1шт.

36

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- piston rod

2шт.

37

D28363

PISTON

- split, rod end

1шт.

38

D28364

PISTON

- split, bolt end

1шт.

39

G33193

PACKING

ASSEMBLY - piston, not shown, Includes: Ref. 40 and 41

1шт.

Part of Seal Kit P/N G32294

1шт.

40

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

41

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

42

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

43

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardended

1шт.

44

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

G32294

SEAL

KIT - seal, Includes: Ref. 6 - 9, 15, 29, 30, 32, 33 and 39

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
