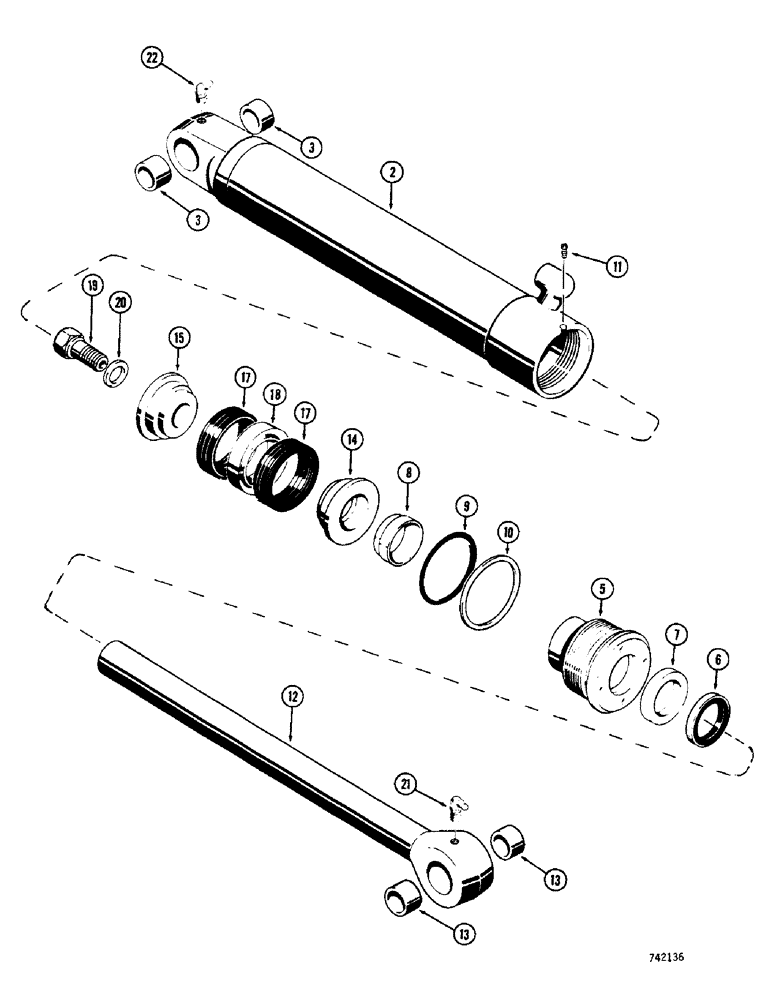

Запчасти Case 350 (232) - G32573 AND G32574 LOADER LIFT CYLINDERS, HAS SPLIT INNER WIPER AND SOLID OUTER WIPER (07) - HYDRAULIC SYSTEM

G32573

CYLINDER ASSY.

CYLINDER - RH, 3" (76 MM) dia x 31" (787 MM) stroke, service with G101242 cylinder, Includes: Ref. 2 - 22

1шт.

G32574

CYLINDER

- LH, 3" (76 MM) dia x 31" (787 MM) stoke, service with G33795 cylinder, Includes: Ref. 2 - 22

1шт.

2

D33272

TUBE

- G32573 cylinder, Includes: Ref. 3

1шт.

2

D33273

TUBE

- G32574 cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

NLS

NO LONGER SERVICED

ASSEMBLY - cylinder, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer, solid type

1шт.

Part of Seal Kit P/N G34642

1шт.

7

D36970

CUP

SEAL, piston rod

1шт.

Part of Seal Kit P/N G34642

1шт.

Service option P/N G100777 - severe heat or cold

1шт.

8

D27432

SHIM

- piston rod, inner, split type

1шт.

Part of Seal Kit P/N G34642

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G34642

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34642

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

D33267

ROD

- piston, 1-3/4" (44 MM) diameter, Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

14

D28897

PISTON

- split, rod end

1шт.

15

D28896

PISTON

- split, bolt end

1шт.

G33151

PACKING

- piston, Includes: Ref. 17 and 18

1шт.

Part of Seal Kit P/N G34642

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

G34642

SEAL

KIT - seal, Includes: Ref. 6 - 10 and P/N G33151

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or col

1шт.
