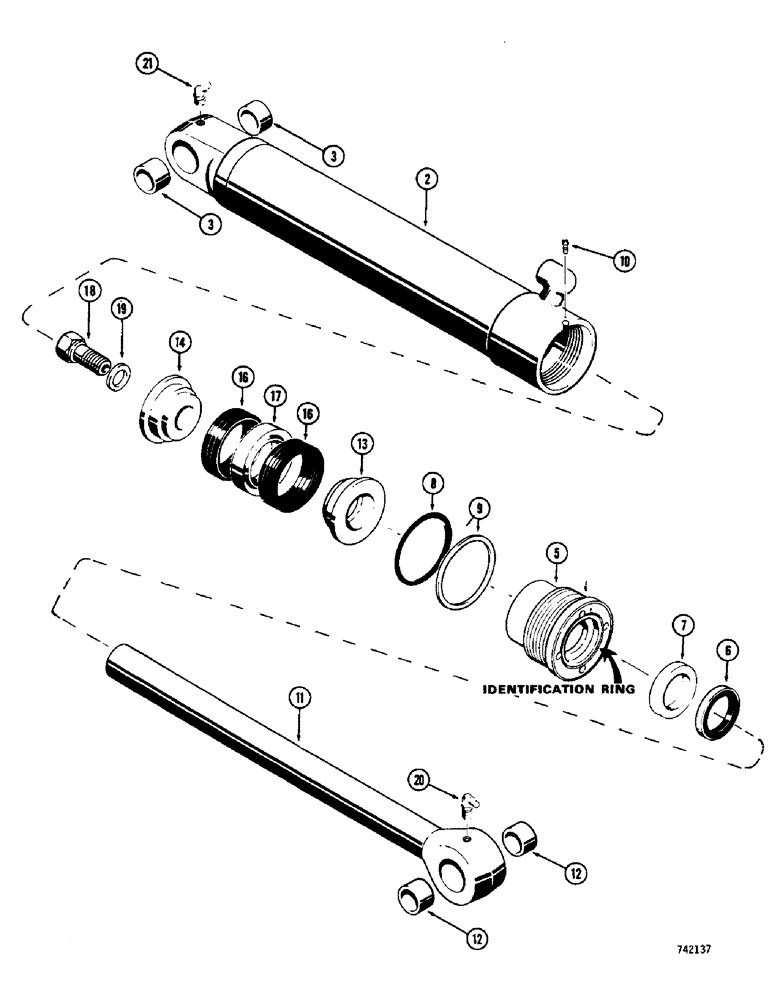

Запчасти Case 350 (230) - G33794 AND G33795 LOADER LIFT CYLINDERS, WITHOUT GLAND CENTER BEARING (07) - HYDRAULIC SYSTEM

G33794

CYLINDER BLOCK

CYLINDER - RH, 3" (76 MM) dia x 31" (787 MM) stroke, service with G101242 cylinder, Includes: Ref. 2 - 21

1шт.

G33795

CYLINDER BLOCK

CYLINDER - LH, 3" (76 MM) dia x 31" (787 MM) stroke, Includes: Ref. 2 - 21

1шт.

2

D33272

TUBE

- G33794 cylinder, Includes: Ref. 3

1шт.

2

D33273

TUBE

- G33795 cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G33570

GLAND

ASSEMBLY - replace with G34633 gland assembly, see figure 228, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G34643

1шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Part of Seal Kit P/N G34643

1шт.

Service option P/N G100777 - severe heat or cold

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G34643

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34643

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G33796

ROD

- piston, 1-3/4" (44 MM) diameter, Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

G33331

PISTON

- split, rod end

1шт.

14

D28896

PISTON

- split, bolt end

1шт.

G33151

PACKING

- piston, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit P/N G34643

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

20

218-55

GREASE FITTING - 90 degree, 1/8" NPT

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

G34643

GASKET KIT

KIT - seal, Includes: Ref. 6 - 9 and P/N G33151

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.
