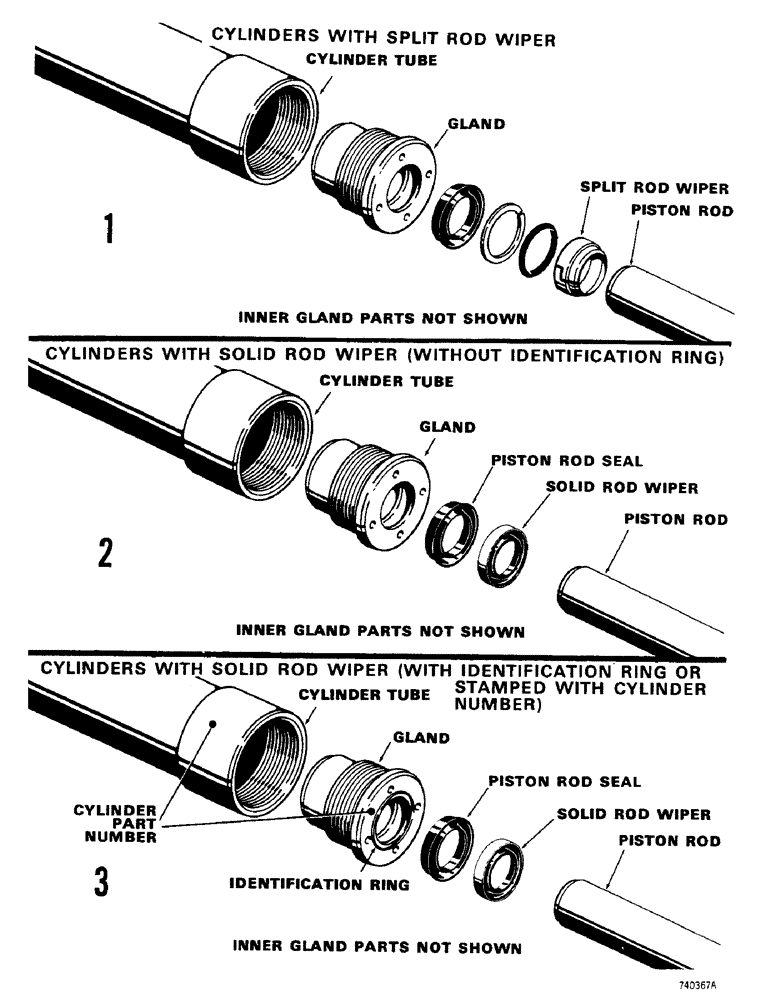

Запчасти Case 350 (226) - CYLINDER IDENTIFICATION (07) - HYDRAULIC SYSTEM

1

D28218

CYLINDER ASSY.

CYLINDER - tilt dozer, outer rod wiper is split, parts list figure 308, service with G101238 cylinder

2шт.

2

G32476

CYLINDER

- tilt dozer, outer rod wiper is solid, parts list figure 306, service with one G101238 cylinder

2шт.

3

G33353

CYLINDER

- tilt dozer, gland has identification ring or gland is stamped with cylinder number, parts list figure 304, service with G101238 cylinder

2шт.

3

G101238

JACK BODY

CYLINDER - tilt dozer, gland is stamped with cylinder number, parts list figure 302

2шт.

1

D46615

CYLINDER - angle tilt dozer, outer rod wiper is split, parts list figure 316, service with G32150 cylinder, Serial Range: -3047966

1шт.

2

G32150

CYLINDER ASSY.

CYLINDER - angle tilt dozer, outer rod wiper is solid, parts list figure 314, Serial Range: -3047966

1шт.

3

G102744

JACK BODY

CYLINDER - angle-tilt dozer model, gland is stamped with cylinder number, parts list figure 310, Serial Range: -3047966

1шт.

3

G33398

CYLINDER - angle tilt dozer, has self-aligning bushing, parts list figure 312, service with G34421 cylinder, Start Serial: 3047966

1шт.

3

G34421

CYLINDER

- angle tilt dozer, has press in bushings, gland has identification ring stamped with cylinder number, parts list figure 312, Start Serial: 3047966

1шт.

3

G101247

JACK BODY

CYLINDER - angle tilt dozer, gland is stamped with cylinder number, parts list figure 310, Start Serial: 3047966

1шт.

1

D31185

CYLINDER - outer rod wiper is split, parts list figure 324, service with G101241 cylinder, ripper

1шт.

2

G32480

CYLINDER ASSY.

CYLINDER - outer rod wiper is solid, parts list figure 322, service with G101241, ripper

1шт.

3

G33470

CYLINDER

- gland has identification ring or gland is stamped with cylinder number, parts list figures 320 and 322 with one G101241 cylinder, ripper

1шт.

3

G101241

CYLINDER ASSY.

CYLINDER - gland is stamped with cylinder number, parts list figure 318, ripper

1шт.
