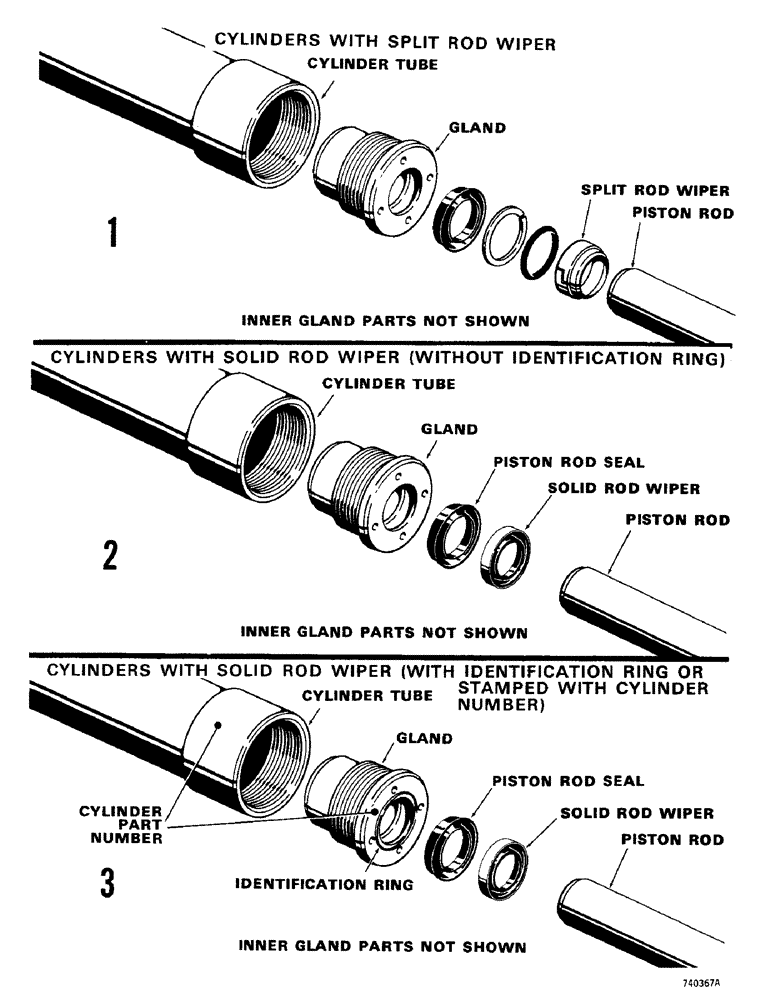

Запчасти Case 350 (222) - CYLINDER IDENTIFICATION (07) - HYDRAULIC SYSTEM

1

D46134

CYLINDER - outer rod wiper is split, parts list figure 262, service with G34293 cylinder, loader grapple cylinders

2шт.

2

G32151

CYLINDER - outer rod wiper is solid, parts list figure 260, service with G34293 cylinder, loader grapple cylinders

2шт.

3

G34293

FORK

CYLINDER - gland has identification ring or tube is stamped with cylinder number, parts list figure 260, loader grapple cylinders

2шт.

3

G101251

FORK

CYLINDER - gland is stamped with cylinder number, parts list figure 258, loader grapple cylinders

2шт.

1

A11231

CYLINDER

- three point hitch, parts list figure 326

1шт.

D35616

CYLINDER

- 3-1/2" ID, parts list figure 250, service with G101190 cylinder, not shown, bucket clam

2шт.

2

G32287

CYLINDER - 3" ID, RH, outer rod wiper solid, parts list figure 257A service with G101190 cylinder, bucket clam

1шт.

3

G33798

CYLINDER

- 3" ID, RH, gland has identification ring or is stamped with cylinder number, parts list figures 254 and 256, service with G101190 cylinder, bucket clam

1шт.

3

87454017R

REMAN-HYD CYLINDER

1шт.

3

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

3

G101190

CYLINDER ASSY.

CYLINDER - 3" ID, RH, tube is stamped with cylinder part number parts list figure 252, bucket clam

1шт.

3

87454017R

REMAN-HYD CYLINDER

1шт.

3

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

2

G32286

CYLINDER

- 3" ID, LH, outer rod wiper is solid, parts list figure 256, service with G33799 cylinders, bucket clam

1шт.

3

G33799

CYLINDER

- 3" ID, LH gland has identification ring or is stamped with cylinder number, parts list figures 254 and 256, bucket clam

1шт.

3

G101191

CYLINDER ASSY.

CYLINDER - 3" ID, LH, gland is stamped with cylinder number, parts list figure 252, bucket clam

1шт.

1

D27826

CYLINDER - mechanical angle dozer, outer rod wiper is split, parts list figure 270, service with G33362 cylinder, dozer lift

2шт.

2

G32477

CYLINDER - mechanical angle dozer, outer rod wiper is solid, parts list figure 268, service with G33362 cylinder, dozer lift

2шт.

3

G33362

CYLINDER

- mechanical angle dozer, gland has identification ring or is stamped with cylinder number, parts list figure 266, dozer lift

2шт.

3

G101235

JACK BODY

CYLINDER - mechanical angle dozer, gland is stamped with cylinder number, parts list figure 264, dozer lift

2шт.

1

D28219

CYLINDER

- power angle dozer, outer rod wiper is split, parts list figure 270, service with G33357 cylinder, dozer lift

2шт.

2

G32478

CYLINDER

- power angle dozer, outer rod wiper is solid, parts list figure 268, service with G33357 cylinder, dozer lift

2шт.

3

G33357

CYLINDER

- power angle dozer, gland has identification ring or is stamped with cylinder number, parts list figure 266, dozer lift

2шт.

3

G101239

JACK BODY

CYLINDER - power angle dozer, gland is stamped with cylinder number, parts list figure 264, dozer lift

2шт.

1

D30076

CYLINDER ASSY.

CYLINDER - tilt dozer, outer rod wiper is split, parts list figure 270, service with one G101240 cylinder, dozer lift

2шт.

2

G32467

CYLINDER

- tilt dozer, outer rod wiper is solid, parts list figure 268, service with G101240 cylinder, dozer lift

2шт.

3

G33361

CYLINDER

- tilt dozer, gland has identification ring or is stamped with cylinder number, parts list figure 266, service with G101240 cylinder, dozer lift

2шт.

3

G101240

JACK BODY

CYLINDER - tilt dozer, gland is stamped with cylinder part number parts list figure 264, dozer lift

2шт.

1

D46473

CYLINDER - angle tilt dozer, outer rod wiper is split, parts list figure 280, service with G101244 cylinder, dozer lift, Serial Range: -3047966

2шт.

2

G32149

CYLINDER

- angle tilt dozer, outer rod wiper is solid, parts list figure 276, service with G101244 cylinder, dozer lift, Serial Range: -3047966

2шт.

3

G102739

JACK BODY

CYLINDER - angle-tilt dozer model, outer rod wiper is solid parts list figure 278, dozer lift, Serial Range: -3047966

2шт.

3

G33399

CYLINDER

- angle tilt dozer, RH, gland has identification ring or is stamped with cylinder number, parts list figure 274, service with one G101244 cylinder, dozer lift, Start Serial: 3047966

1шт.

3

G33400

CYLINDER

- angle tilt dozer, LH, gland has identification ring, or is stamped with cylinder number, parts list figure 274, dozer lift, Start Serial: 3047966

1шт.

3

G101245

JACK BODY

CYLINDER - angle tilt dozer, LH, gland is stamped cylinder number, parts list figure 272, dozer lift, Start Serial: 3047966

1шт.

3

G101244

JACK BODY

CYLINDER - angle tilt dozer, RH, gland is stamped with cylinder number, parts list figure 272, dozer lift, Start Serial: 3047966

1шт.

1

D28163

CYLINDER - angle dozer, LH, outer rod wiper is split, parts list figure 290, service with G33528 cylinder

1шт.

2

G32581

CYLINDER

- angle dozer, LH, outer rod wiper is solid, parts list figure 288, service with G33528 cylinder

1шт.

2

G33528

CYLINDER

- angle dozer, LH, gland has identification ring or is stamped with cylinder number, parts list figures 284 and 286

1шт.

3

G101237

CYLINDER

- angle dozer, LH, gland is stamped with cylinder number, parts list figure 282

1шт.

1

D29919

CYLINDER

- angle dozer, RH, outer rod wiper is split, parts list figure 290

1шт.

2

G32582

CYLINDER

- angle dozer, RH, outer rod wiper is solid, parts list figure 288, service with G33529 cylinder

1шт.

3

G33529

CYLINDER

- angle dozer, RH, gland has identification ring or is stamped with cylinder number, parts list figures 284 and 286

1шт.

3

G101236

CYLINDER

- angle dozer, RH, tube is stamped with cylinder number, parts list figure 282

1шт.

1

D46626

CYLINDER - angle tilt dozer, self-aligning bushings and outer rod wiper is split, parts list figure 300, service with G101250 cylinder

2шт.

2

G32163

CYLINDER - angle tilt dozer, self-aligning bushings and outer rod wiper is solid, parts list figure 298, service with G10250 cylinder

2шт.

3

G33451

CYLINDER

- angle tilt dozer, self-aligning bushings and gland has identification ring, parts list figure 296, service with G101250 cylinder

2шт.

3

G34414

- angle tilt dozer, has press in bushings, gland has identification ring or is stamped with cylinder number, parts list figures 294 and 296, service with G101250 cylinder

2шт.

3

G101250

CYLINDER

- angle tilt dozer, tube is stamped with cylinder number, parts list figure 292

2шт.
