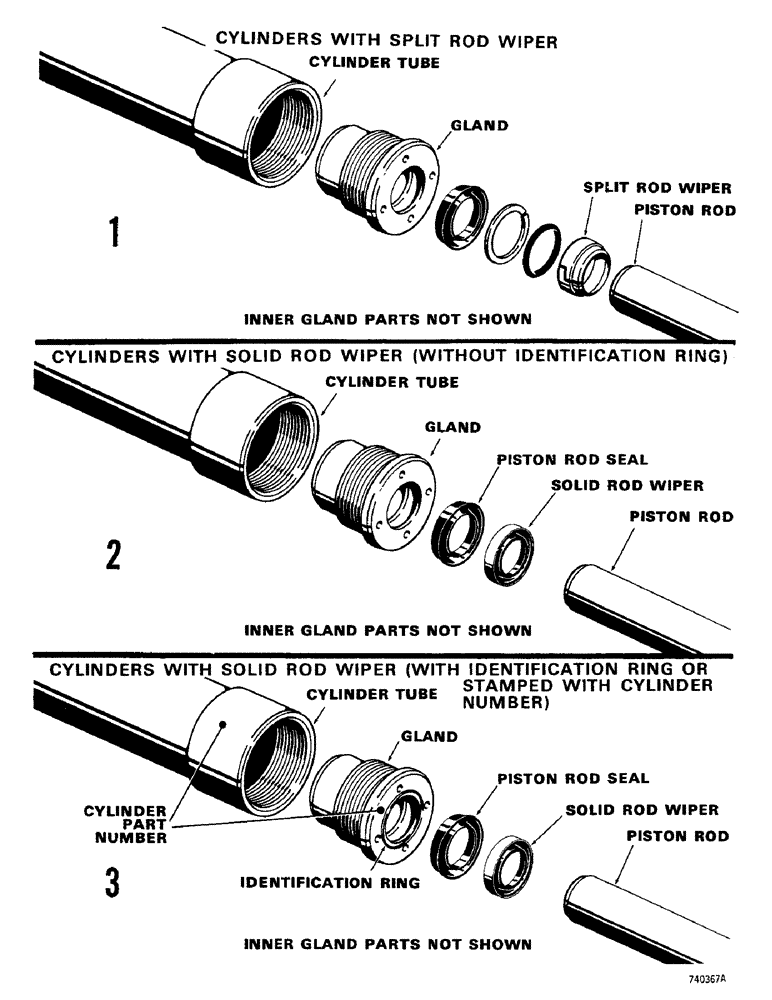

Запчасти Case 350 (220) - CYLINDER IDENTIFICATION (07) - HYDRAULIC SYSTEM

1

D33121

CYLINDER

- RH, outer rod wiper is split, parts list figure 234, service with G101242 cylinder, loader lift

1шт.

2

G32573

CYLINDER ASSY.

CYLINDER - RH, outer rod wiper is solid, parts list figure 232, service with G101242 cylinder, loader lift

1шт.

3

G33794

CYLINDER BLOCK

CYLINDER - RH, gland has identification ring and/or is stamped with cylinder number, parts list figures 228 and 230, service with G101242 cylinder, loader lift

1шт.

3

G101242

CYLINDER

- RH, gland is stamped with cylinder number, parts list figure 236, loader lift

1шт.

1

D33122

CYLINDER

- LH, outer rod wiper is split, parts list figure 234, service with G33795 cylinder, loader lift

1шт.

2

G32574

CYLINDER

- LH, outer rod wiper is solid, parts list figure 232, service with G33795 cylinder, loader lift

1шт.

3

G33795

CYLINDER BLOCK

CYLINDER - LH, gland has identification ring and/or is stamped with cylinder number, parts list figures 228 and 230, loader lift

1шт.

3

G101243

CYLINDER

- LH, gland is stamped with cylinder number, parts list figure 236, loader lift

1шт.

1

D49295

CYLINDER

- RH, outer rod wiper is split, parts list figure 248, service with G33432 cylinder, loader dump (bucket tilt)

1шт.

2

G32463

CYLINDER - RH, outer rod wiper is solid, parts list figure 246, service with G33432 cylinder, loader dump (bucket tilt)

1шт.

3

G33432

CYLINDER BLOCK

CYLINDER - RH, gland has identification ring or tube is stamped with cylinder number, parts list figure 246, loader dump (bucket tilt)

1шт.

3

G101248

CYLINDER ASSY.

CYLINDER - RH, tube is stamped with cylinder number, parts list figure 244, loader dump (bucket tilt)

1шт.

1

D49294

CYLINDER - LH, outer rod wiper is split, parts list figure 248, service with G33431 cylinder, loader dump (bucket tilt)

1шт.

2

G32462

CYLINDER

- LH, uter rod wiper is solid, parts list figure 246, service with G33431 cylinder, loader dump (bucket tilt)

1шт.

2

G32462

CYLINDER

- LH, uter rod wiper is solid, parts list figure 246, service with G33431 cylinder, loader dump (bucket tilt)

1шт.

3

G33431

CYLINDER BLOCK

CYLINDER - LH, gland has identification ring or tube is stamped with cylinder number, parts list figure 246, loader dump (bucket tilt)

1шт.

3

G101249

CYLINDER BLOCK

CYLINDER - LH, gland is stamped with cylinder number, parts list figure 244, loader dump (bucket tilt)

1шт.

1

D33123

CYLINDER BLOCK

CYLINDER - outer rod wiper is split, parts list figure 242, service with G33426 cylinder, loader hydra-leveling

2шт.

2

G32460

CYLINDER - outer rod wiper is solid, parts list figure 238, service with G33426 cylinder, loader hydra-leveling

2шт.

3

G33426

HYD TUBE,20.25" L

CYLINDER - gland has identification ring or tube is stamped with cylinder number, parts list figure 238, loader hydra-leveling

2шт.

3

G101246

CYLINDER

- gland is stamped with cylinder number, parts list figure 240, loader hydra-leveling

2шт.
