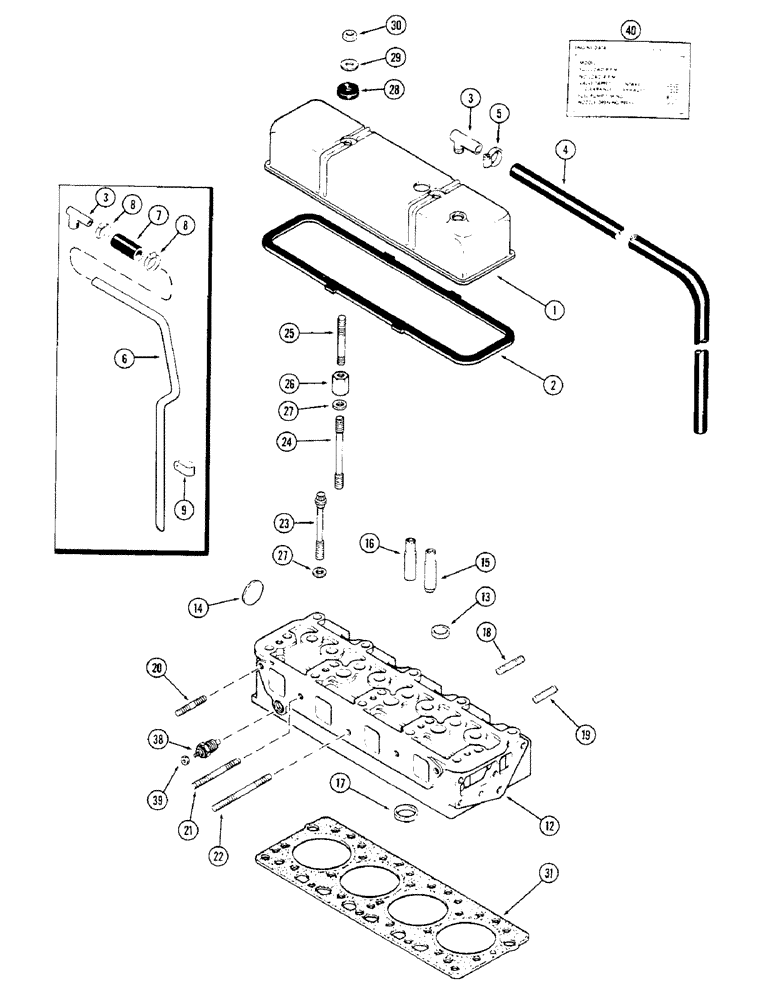

Запчасти Case 350 (014) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE, USED ENG.S/N 2711005 & AFTER W/CYLINDER HEAD BOLTS (01) - ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

- cover to cylinder head

1шт.

3

A9155

90 ELBOW

- breather

1шт.

4

A39570

HOSE

HOSE - breather (1st used engine serial no. 2706480)

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - 9/16" to 1-1/16" (Used with A39570 hose)

2шт.

6

D35014

TUBE

- breather (Used prior to engine serial no. 2706480)

1шт.

7

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 1-3/16" to 1-3/4" (Used with A21234 hose)

2шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- breather tube to engine

1шт.

12

A150385

HEAD

ASSEMBLY - cylinder (Casting no. A150384) (Replaces A37856), Includes: Ref. 13 - 22

1шт.

13

41-1016

PLUG,Cup, 1"

- top, 1" cup type

3шт.

14

41-1028

PLUG,Cup, 1 3/4"

- rear, 1-3/4" cup type

1шт.

15

G2069

GUIDE

- exhaust valves

4шт.

16

G2068

GUIDE

- intake valves

4шт.

17

A39268

INSERT

- exhaust valve seat

4шт.

18

A39129

STUD

- exhaust manifold, clamps (3/8" NC x 2-1/16")

3шт.

19

A29431

STUD

- exhaust manifold, ends (3/8" NC x 1-3/4")

2шт.

20

A140924

STUD

- intake manifold, ends (3/8" NC x 2-7/16")

2шт.

21

A51499

STUD

- intake manifold, intermediate (3/8" NC x 4-5/16")

2шт.

22

A51500

STUD

- intake manifold, center (3/8" NC x 5-5/16")

1шт.

23

A39047

12 PT SCREW

BOLT - cylinder head (1/2 x 3-1/2" NC, 12 point head)

4шт.

23

A39048

12 PT SCREW

BOLT - cylinder head (1/2 x 5-1/8" NC, 12 point head)

11шт.

23

A39049

12 PT SCREW

BOLT - cylinder head (1/2 x 5-5/8" NC, 12 point head)

2шт.

24

A36902

STUD

- cylinder head, lower (1/2" NC x 5-5/8")

2шт.

25

A51271

STUD

- cylinder head cover (3/8" NC x 3-3/4")

2шт.

26

A51114

NUT

- head studs (1/2" NC and 3/8" NC)

2шт.

27

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8""

19шт.

28

A142098

GROMMET

- cover (Rubber) (Replaces G46867)

2шт.

29

G49400

WASHER

- cover nut (3/8 x 1-1/8 x 1/8")

2шт.

30

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

31

A148745

CYLINDER HEAD GASKET

- cylinder head (Replaces A39279)

1шт.

38

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

39

193-1000

NUT,Keps, w/LW,#10-32

- unit termnal (#10 NF hex)

1шт.

40

321-2557

DECAL - engine date (Used with A51234 nozzle) (1st used engine serial no. 2726393)

1шт.

40

321-1635

DECAL - engine data (Used with A37836 nozzle) (Used prior to engine serial no. 2726393)

1шт.
