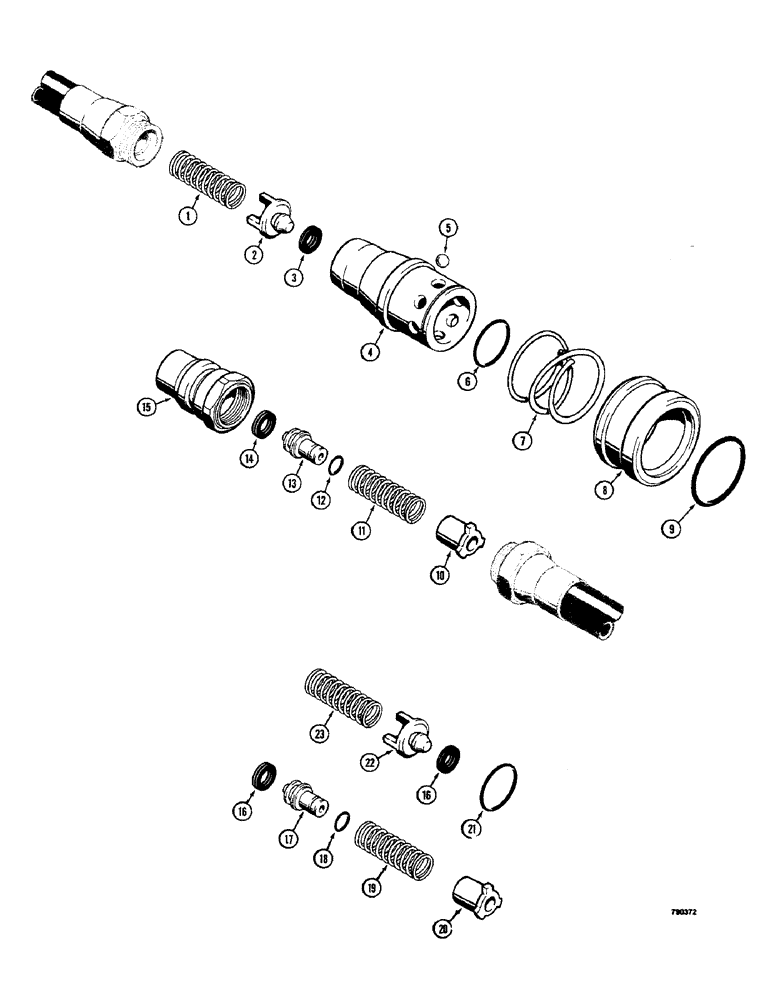

Запчасти Case 350 (218) - HYDRAULIC COUPLINGS (07) - HYDRAULIC SYSTEM

A28542

COUPLING, QUICK, FEM

COUPLING - pull behind, female, service kit parts listed below, Includes: Ref. 1 - 9

2шт.

1

A11324

SPRING

- piston, female coupling

1шт.

2

A26215

PISTON

- coupling, female

1шт.

3

A33964

SEAL

- piston, female coupling

1шт.

4

A27349

BODY

- female coupling

1шт.

5

211-7

BALL,1/4" Dia

- steel, body, female coupling 1/4" Dia

8шт.

6

A34848

O-RING

- body, female coupling

1шт.

7

A27354

SPRING

- ball retaining sleeve, female coupling

1шт.

8

A27353

SLEEVE

SLEEVE - ball retaining, female coupling

1шт.

9

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - retaining, female coupling

1шт.

A28541

COUPLING, BREAK AWAY

COUPLING - pull behind, male, service kit parts listed below, Includes: Ref. 10 - 15

2шт.

10

51200858

SLEEVE

- piston, male coupling

1шт.

11

A27351

SPRING

- piston, male coupling

1шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- piston sleeve, male coupling

1шт.

13

A27508

PISTON

- coupling, male

1шт.

14

A33964

SEAL

- piston, male coupling

1шт.

15

A27356

PIPE FITTING

BODY - male coupling

1шт.

A40459

KIT

- service, A28541 and A28542 couplings, service kit for hydraulic couplings, Includes: Ref. 16 - 23

1шт.

16

A33964

SEAL

- piston, service kit for hydraulic couplings

2шт.

17

A27508

PISTON

- coupling, service kit for hydraulic

1шт.

18

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- piston sleeve, service kit for hydraulic couplings

1шт.

19

A27351

SPRING

- piston, service kit for hydraulic couplings

1шт.

20

51200858

SLEEVE

- piston, service kit for hydraulic couplings

1шт.

21

A34848

O-RING

- body, service kit for hydraulic couplings

1шт.

22

A26215

PISTON

- coupling, service kit for hydraulic

1шт.

23

A11324

SPRING

- piston, service kit for hydraulic couplings

1шт.

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- connecting, Case hydraulic hose to 1/2" female pipe cnnection, 1/2" male pipe x 7/8" - 18 NF female, pull behind

1шт.

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- connecting, Case pull behind couplings to hydraulic hose lines 1/2" pipe thread, 1/2" female pipe x 7/8" - 18 NF male

1шт.
