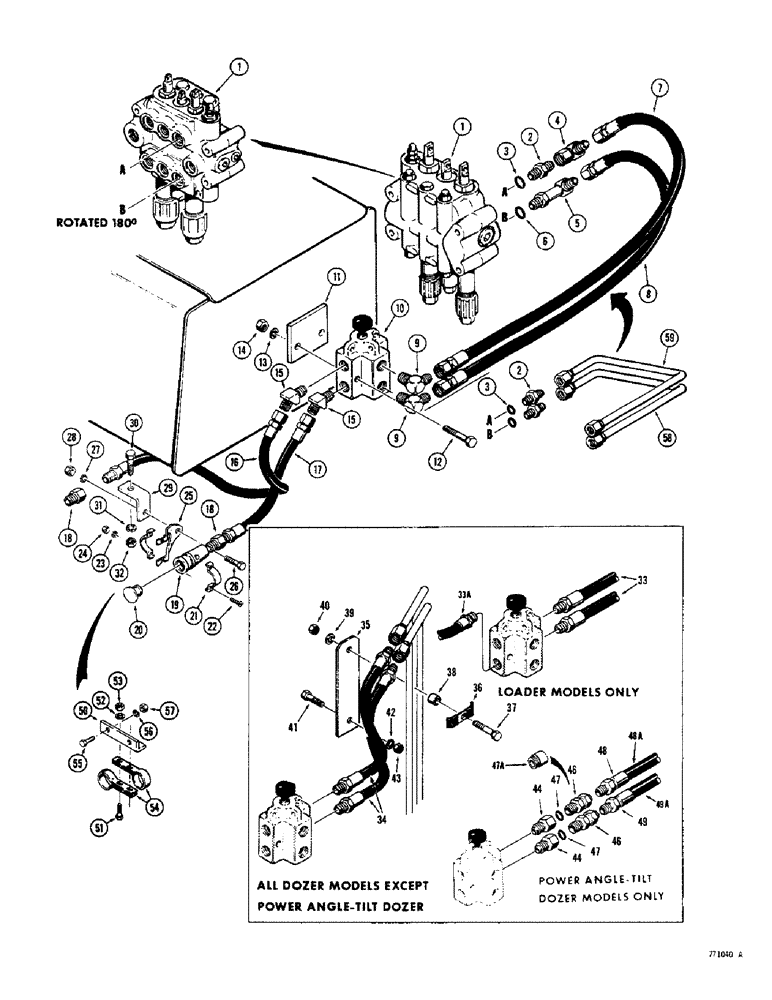

Запчасти Case 350 (214) - PULL BEHIND HYDRAULIC CIRCUIT, MODELS WITH DIVERSION VALVE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for proper valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, Includes: Ref. 3

1-2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Adjustable 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

5

D23143

FITTING

ELBOW - special, 90 degree, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

7

D39222

HOSE - 17-1/2" (445 MM) long

1шт.

8

L50840

HOSE

- 24" (610 MM) long

1шт.

9

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, female

2шт.

10

D34424

VALVE

- diversion, parts list figure 188(1)

1шт.

11

D34426

PLATE - mounting, diversion valve

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8" - 16 NC x 3"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degree

2шт.

16

D28106

HOSE - diversion valve to pull behind, 19-1/2" (495 MM) long

2шт.

18

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- special

2шт.

19

A28542

COUPLING, QUICK, FEM

COUPLING - pull behind, female, parts list figure 218

2шт.

A28541

COUPLING, BREAK AWAY

COUPLING - pull behind, male, parts list figure 218

2шт.

20

A65044

PLUG

- dust

2шт.

21

A27423

CLAMP

- coupling, if used

4шт.

22

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- machine, no 8 - 32 NC x 5/8"

4шт.

23

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

24

129-6

NUT,#8-32

4шт.

25

A27360

BRACKET

CLAMP - coupling, if used

2шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

29

D39226

BRACKET - coupling mounting, if used

1шт.

30

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

31

92-7

LOCK WASHER,7/16"

14шт.

32

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

1шт.

33

D20193

HOSE - 26" (660 MM) long, loader models only

2шт.

33a

D39223

HOSE - diversion valve to outside pull behind, 13-3/4" (349 MM) long, loader models only, Start Serial: 3049343

1шт.

34

D39224

HOSE - 12-1/2" (316 MM) long, all dozer models except angle-tilt dozer

2шт.

35

D39225

BRACKET - mounting, tube clamp

1шт.

36

R17319

CLAMP

PLATE - clamp, tube

1шт.

37

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

If used Hex, 5/16"-18 x 2", G5

1шт.

37

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16" - 18 NC x 1-3/4", if used

1шт.

38

D33552

BUSHING

SPACER - tube clamp

1шт.

39

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

40

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, Includes: Ref. 44

1шт.

44

218-5040

ADAPTER

CONNECTOR - straight

2шт.

46

D37118

ADAPTER

CONNECTOR - special, Includes: Ref. 47

2шт.

47

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.

47a

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight

2шт.

48

D46472

HOSE

- upper, 124" (3150 MM) long, power angle-tilt dozer models only, Serial Range: -3049343

1шт.

48a

D39220

HOSE ASSY.

HOSE - upper, 43" (1092 MM) long, power angle-tilt dozer models only, Start Serial: 3049343

1шт.

49

D46471

TUBE ASSY.

HOSE - lower, 124" (3150 MM) long, angle-tilt dozer models only, Serial Range: -3049343

1шт.

49a

D39221

HOSE - lower, 47-1/2" (1206.5 MM) long, angle-tilt dozer models only, Start Serial: 3049343

1шт.

50

F42371

FLEETING PULLEY

BRACKET - coupling mounting, if used

1шт.

51

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

52

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

53

25-104

NUT,1/4"-20, G5

2шт.

54

A57662

CLAMP

- coupling, if used

2шт.

55

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

56

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

57

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

58

D38149

TUBE

- lower, if used

1шт.

59

D38151

TUBE

- upper, if used

1шт.
