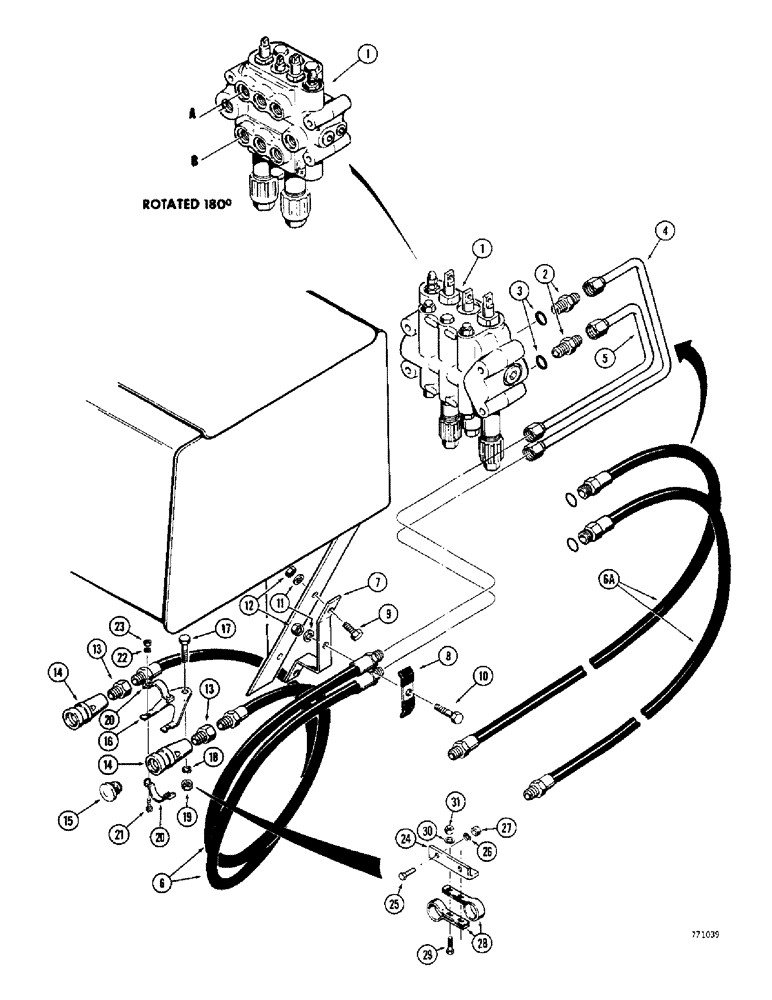

Запчасти Case 350 (212) - PULL BEHIND HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for proper valves, models without diversion valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, models without diversion valve, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector, models without diversion valve

1шт.

4

D38145

TUBE - models without three point hitch, models without diversion valve

1шт.

5

D38147

TUBE - models without three point hitch, models without diversion valve

1шт.

6

D28119

HOSE - models without three point hitch, 26-1/2" (673 MM) long, models without diversion valve

2шт.

6a

D40257

HOSE

- models iwth three point hitch, 41" (1041 MM) long, models without diversion valve

2шт.

7

D38331

BRACKET - mounting, hose clamp, models without diversion valve

1шт.

8

D33316

CLAMP

PLATE - clamp, hose, models without diversion valve

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Models without diversion valve Hex, 5/16"-18 x 3/4", G5, Full Thd

25шт.

10

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Models without diversion valve Hex, 5/16"-18 x 2", G5

1шт.

11

92-5

LOCK WASHER,5/16"

WASHER - lock, , models without diversion valve 5/16"

3шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, models without diversion valve

3шт.

13

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- special, models without diversion valve

2шт.

14

A28542

COUPLING, QUICK, FEM

COUPLING - pull behind, female, parts list figure 218, models without diversion valve

2шт.

A28541

COUPLING, BREAK AWAY

COUPLING - pull behind, male, parts list figure 218, not illustrated, models without diversion valve

2шт.

15

A65044

PLUG

- dust, models without diversion valve

2шт.

16

A27360

BRACKET

- mounting, pull behind coupling, except ROPS models, Serial Range: -3050472

2шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

except ROPS models Hex, 5/16"-18 x 1", G5, Full Thd, Serial Range: -3050472

2шт.

18

92-5

LOCK WASHER,5/16"

WASHER - lock, , except ROPS models 5/16", Serial Range: -3050472

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, except ROPS models, Serial Range: -3050472

2шт.

20

A27423

CLAMP

- pull behind coupling, except ROPS models, Serial Range: -3050472

4шт.

21

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- machine, no. 8 - 32 NC x 5/8", except ROPS models, Serial Range: -3050472

4шт.

22

192-6

LOCK WASHER,#8

WASHER, LOCK, , Except ROPS models #8, Serial Range: -3050472

4шт.

23

129-6

NUT,#8-32

Except ROPS models #8-32, Serial Range: -3050472

4шт.

24

F42371

FLEETING PULLEY

BRACKET - coupling mounting, or previous ROPS models, Start Serial: 3050472

1шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

or previous ROPS models Hex, 5/16"-18 x 1", G5, Full Thd, Start Serial: 3050472

2шт.

26

92-5

LOCK WASHER,5/16"

WASHER - lock, , or previous ROPS models 5/16", Start Serial: 3050472

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, or previous ROPS models, Start Serial: 3050472

2шт.

28

A57662

CLAMP

- mounting, or previous ROPS models, Start Serial: 3050472

2шт.

29

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

SCREW - machine, 1/4" - 20 NC x 1", or previous ROPS models, Start Serial: 3050472

2шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , or previous ROPS models 1/4", Start Serial: 3050472

2шт.

31

25-104

NUT,1/4"-20, G5

or previous ROPS models 1/4"-20, G5, Start Serial: 3050472

2шт.
