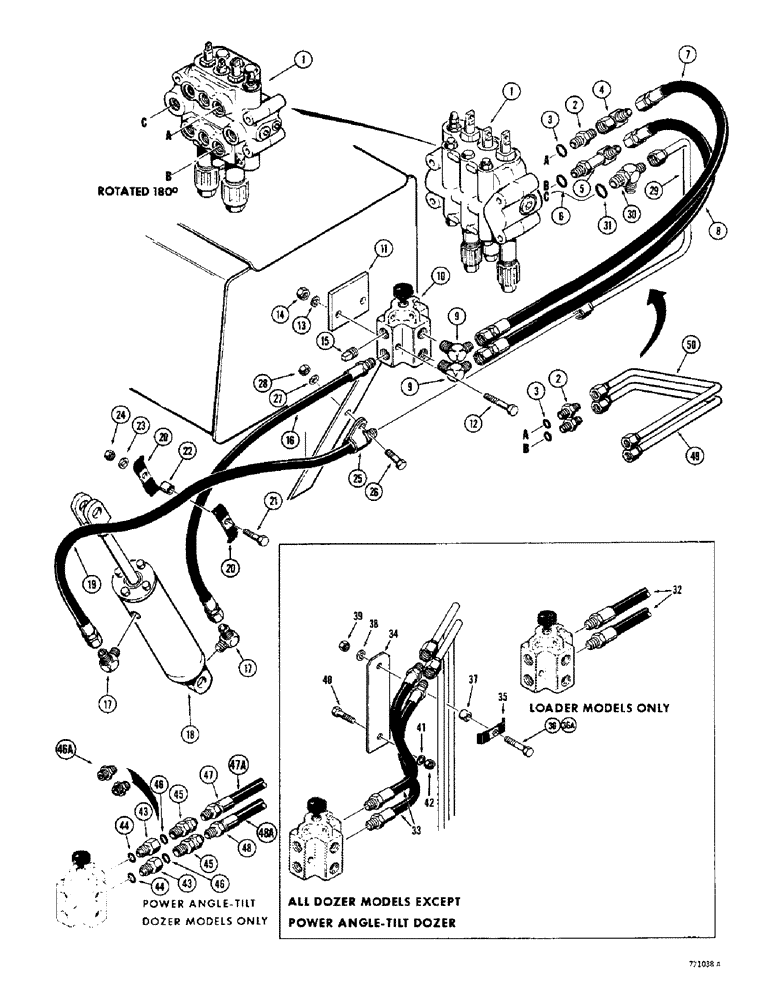

Запчасти Case 350 (210) - THREE POINT HITCH HYDRAULIC CIRCUITS, MODELS WITH DIVERSION (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for proper valves

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, Includes: Ref. 3

1-2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Adjustable 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

5

D23143

FITTING

- special, 90 degree, if used, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

D39222

HOSE - 17-1/2" (445 MM) long, if used

1шт.

8

L50840

HOSE

- 24" (610 MM) long, if used

1шт.

9

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

FITTING - 90 degree

2шт.

10

D34424

VALVE

- diversion, parts list figure 188(1)

1шт.

11

D34426

PLATE - mounting, diversion valve

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8" - 16 NC x 3"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

221-15

PLUG,Sq Hd, 3/4"-14

- square head, 3/4" NPT

1шт.

16

D34462

HOSE

- 43-3/4" (1105 MM) long

1шт.

17

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

FITTING - 90 degree

2шт.

18

A11231

CYLINDER

- three point hitch, see figure 222 for cylinder

1шт.

19

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- 40" (1016 MM) long

1шт.

20

D33316

CLAMP

PLATE - clamp, hose

2шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

22

D33829

BUSHING

SPACER - hose clamp

1шт.

23

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

24

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

25

R11405

CLAMP

- hose

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

27

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

28

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

29

D33934

TUBE - hydraulic cylinder, rod end to control valve

1шт.

30

218-5247

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 1 5/16"-12

FITTING - tee, adjustable, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

D20193

HOSE - 26" (660 MM) long, loader models only

2шт.

33

D39224

HOSE - 12-1/2" (318 MM) long, all dozer models except angle-tilt dozer

2шт.

34

D39225

BRACKET - mounting, tube clamp

1шт.

35

R17319

CLAMP

PLATE - clamp, tube

1шт.

36

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

If used Hex, 5/16"-18 x 2", G5

1шт.

36a

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16" - 18 NC x 1-3/4", if used

1шт.

37

D33552

BUSHING

SPACER - tube clamp

1шт.

38

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

39

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

40

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

1шт.

42

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

43

218-5040

ADAPTER

FITTING - straight, Includes: Ref. 44

2шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

45

D37118

ADAPTER

FITTING - special, Includes: Ref. 46

2шт.

46

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

46a

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight, with D39220 and D39221 hoses only

2шт.

47

D46472

HOSE

ASSEMBLY - angle-tilt dozer models only, Serial Range: -3049343

1шт.

47a

D39220

HOSE ASSY.

HOSE - upper, 43" (1092 MM) long, angle-tilt dozer models only, Start Serial: 3049343

1шт.

48

D46471

TUBE ASSY.

HOSE ASSEMBLY - angle-tilt dozer models only, Serial Range: -3049343

1шт.

48a

D39221

HOSE - lower, 47-1/2" (1206.5 MM) long, angle-tilt dozer models only, sn 3049343 only

1шт.

49

D38149

TUBE

- lower, if used

1шт.

50

D38151

TUBE

- upper, if used

1шт.
