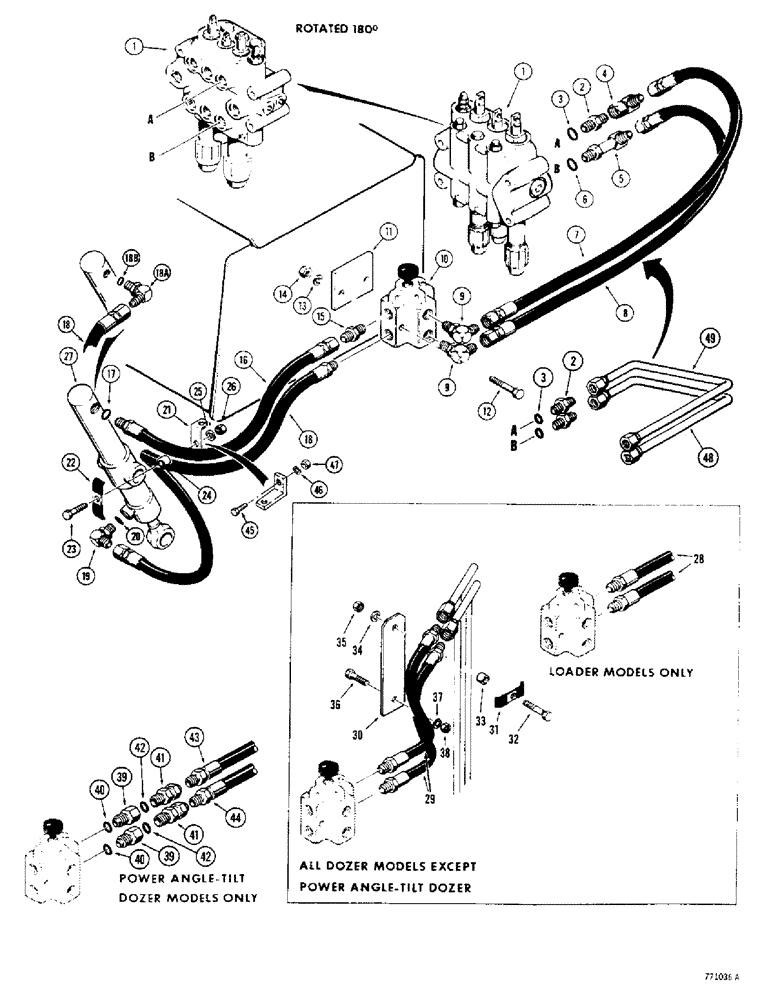

Запчасти Case 350 (204) - RIPPER HYDRAULIC CIRCUIT, MODELS WITH DIVERSION VALVE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for valves

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, Includes: Ref. 3

1-2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Adjustable 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

5

D23143

FITTING

ELBOW - special, 90 degree, if used, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

7

D39222

HOSE - 17-1/2" (445 MM) long, if used

1шт.

8

L50840

HOSE

- 24" (610 MM) long, if used

1шт.

9

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree

2шт.

10

D34424

VALVE

- diversion, parts list figure 188(1)

1шт.

11

D34426

PLATE - mounting, diversion valve

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8" - 16 NC x 3'

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight, D34427 hose only

1шт.

16

D34427

HOSE - 37-1/2" (923 MM) long, except ROPS models, Includes: Ref. 17, Serial Range: -3050472

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

18

D34462

HOSE

- 43-1/2" (1105 MM) long, 1 used before sn 3050472 except ROPS models, 2 used sn 3050472 and after and all ROPS models

1-2шт.

18a

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, male, adjustable D34462 hose only, Incl. Ref 18B

1шт.

18b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk - Elbow

1шт.

19

R20839

FITTING

ELBOW - special, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk - Elbow

1шт.

21

D34425

BRACKET - mounting, hose clamp

1шт.

22

D33316

CLAMP

PLATE - clamp, hose

1шт.

23

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

24

D33829

BUSHING

SPACER - clamp

1шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

26

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

27

REF

INSTRUCTION

CYLINDER - ripper, see page 226 for cylinders

1шт.

28

D20193

HOSE - loader models, 26" (660 MM) long

2шт.

29

D39224

HOSE - use on all dozer models except angle-tilt dozer, 12-1/2" (318 MM) long

2шт.

30

D39225

BRACKET - mounting, tube clamp

1шт.

31

R17319

CLAMP

PLATE - clamp, tube

1шт.

32

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

33

D33552

BUSHING

SPACER - tube clamp

1шт.

34

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

35

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

37

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

39

218-5040

ADAPTER

CONNECTOR - straight, Includes: Ref. 40

2шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

41

D37118

ADAPTER

CONNECTOR - special, Includes: Ref. 42

2шт.

42

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.

43

D46472

HOSE

ASSEMBLY - power angle-tilt dozers only

1шт.

44

D46471

TUBE ASSY.

HOSE ASSEMBLY - power angle-tilt dozers only

1шт.

45

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

46

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

48

D38149

TUBE

- lower, if used

1шт.

49

D38151

TUBE

- upper, if used

1шт.
