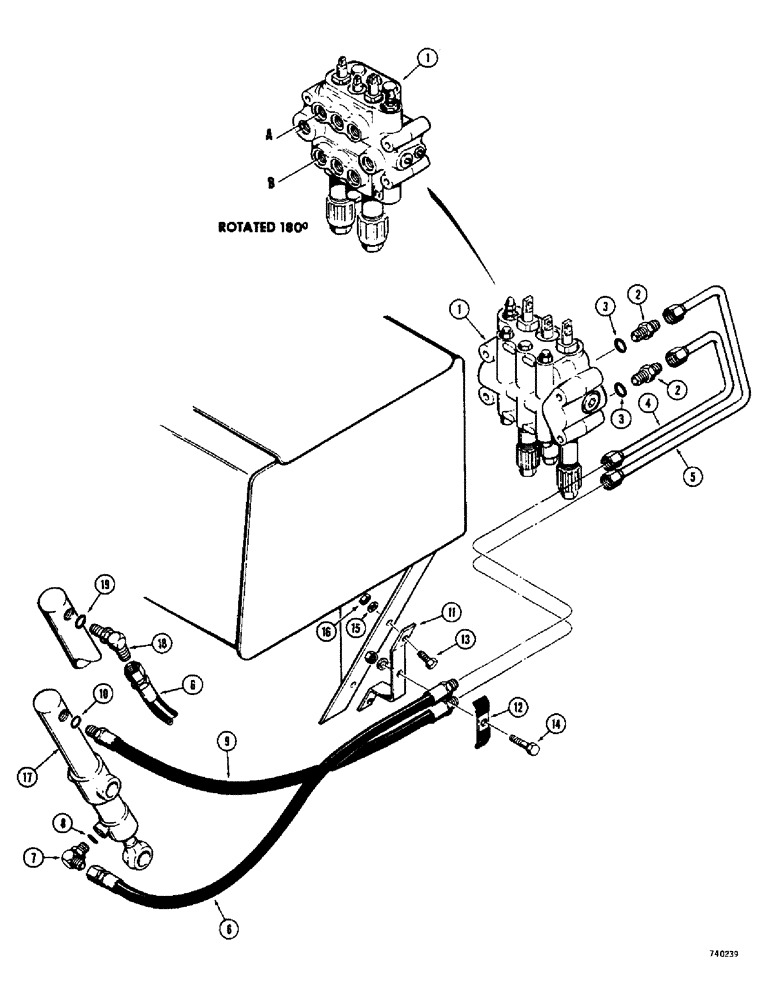

Запчасти Case 350 (202) - RIPPER HYDRAULIC CIRCUIT, MODELS WITHOUT DIVERSION VALVE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for proper valves

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

D38147

TUBE - lower control valve port to ripper cylinder, rod end

1шт.

5

D38145

TUBE - upper control valve port to ripper cylinder, closed end

1шт.

6

D23030

HOSE

- lower valve port, 36-1/2" (927 MM) long, 1 used before sn 3050472 except for ROPS models, 2 used sn 3050472 and after and all ROPS models

1-2шт.

7

R20839

FITTING

ELBOW - special, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

9

D33516

HOSE ASSY.

HOSE - upper valve port,k 27" (686 MM) long, used with D31185 cylinder

1шт.

9

R52261

DRIVE SPROCKET

HOSE - 32" (813 MM) long, used with G32480 cylinder and before sn 3050472 except ROPS models, use D23030 hose and 218-5137 elbow for service, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

11

D38331

BRACKET - mounting, hose clamp

1шт.

12

D33316

CLAMP

PLATE - clamp, hose

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

15

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

3шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

3шт.

17

REF

INSTRUCTION

CYLINDER - ripper, see figure 226 for cylinders

1шт.

18

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, male, adjustable, D23030 hose only, Incl. Ref 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.
