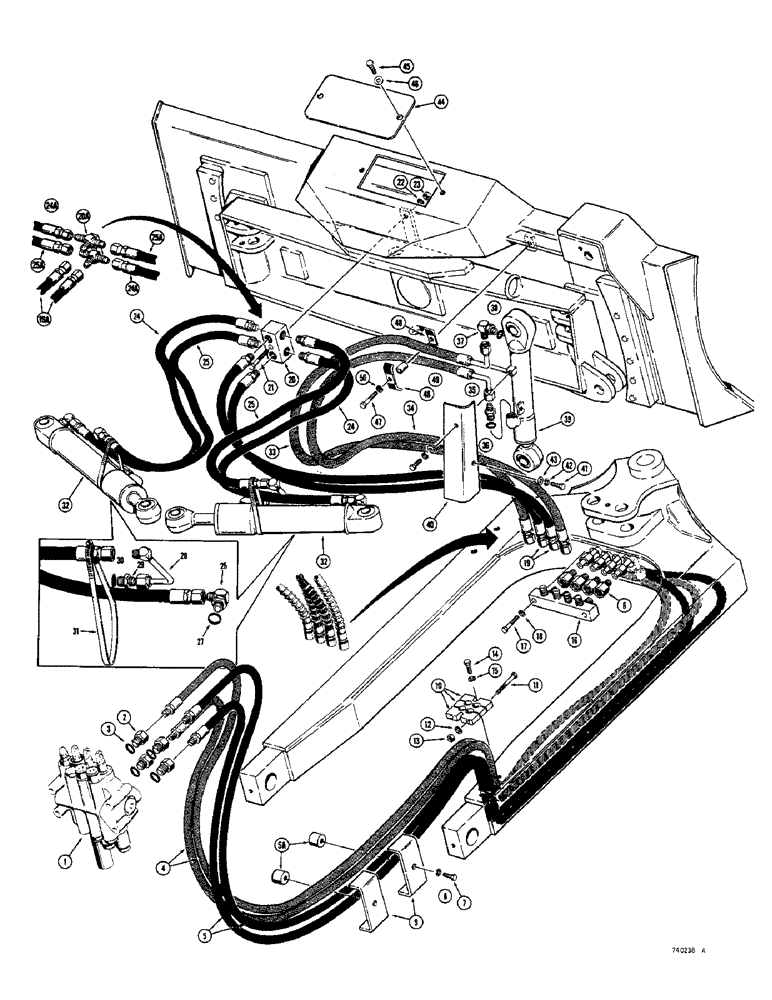

Запчасти Case 350 (200) - ANGLE-TILT DOZER - ANGLE TILT HYDRAULIC CIRCUIT, USED SN. 3047966 AND AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figure 338 for proper valve

1шт.

2

D37118

ADAPTER

CONNECTOR - angle and tilt ports, Includes: Ref. 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

D46471

TUBE ASSY.

HOSE ASSEMBLY - angle port

2шт.

5

D46472

HOSE

ASSEMBLY - tilt port

2шт.

5a

D33265

NUT

BLOCK - spacer

2шт.

6

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

BUSHING - reducer

4шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

D36134

CLAMP

- hose

2шт.

10

D36131

SET

BLOCK - clam, hose

1шт.

11

13-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- hex, 1/4" - 20 NC x 4-1/2"

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

25-104

NUT,1/4"-20, G5

2шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

D36130

BLOCK

- manifold, at C-frame

1шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

R26160

HOSE

- D36142 manifold 22" (559 MM) long

2шт.

19a

R30894

HOSE

- R30914 manifold, 19" (483 MM) long

2шт.

20

D36142

MANIFOLD - front, early production - female ports

1шт.

20a

R30914

MANIFOLD

- front, late production - male ports

1шт.

21

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2" - 13 NC x 3", D36142 manifold

1шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex 1/2" - 13 NC x 1-3/4", R30914 manifold

1шт.

22

92-8

LOCK WASHER,1/2"

1шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

24

R26163

HOSE

- D36142 manifold, 29-1/2" (749 MM) long

2шт.

24a

R30836

HOSE

- R30914 manifold, 28" (711 MM) long

2шт.

25

R26164

HOSE ASSY.

HOSE - D36142 manifold, 20" (508 MM) long

2шт.

25a

R30835

HOSE ASSY.

HOSE - R30914 manifold, 19" (483 MM) long

2шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Includes: Ref. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

28

D28205

PIPE

TUBE - angling cylinder, rod end

2шт.

29

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 30 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

31

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - tube

2шт.

32

REF

INSTRUCTION

CYLINDER - angle, see figure 224 for cylinders

2шт.

33

R26162

HOSE

- upper, 42-1/4" (1073 MM) long

1шт.

34

R26161

HOSE ASSY.

HOSE - lower, 46-1/2" (1181 MM) long

1шт.

35

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

37

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- adjustable, 90 degree, Includes: Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

39

REF

INSTRUCTION

CYLINDER - tilt, see figure 226 for cylinder

1шт.

40

R24680

GUARD

- tilt cylinder

1шт.

41

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

42

92-8

LOCK WASHER,1/2"

2шт.

43

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

44

R24647

COVER - hose guard

1шт.

45

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

46

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

47

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

48

D40236

CLAMP

- hose

2шт.

49

D33829

BUSHING

SPACER - clamp

1шт.

50

92-6

LOCK WASHER,3/8"

1шт.
