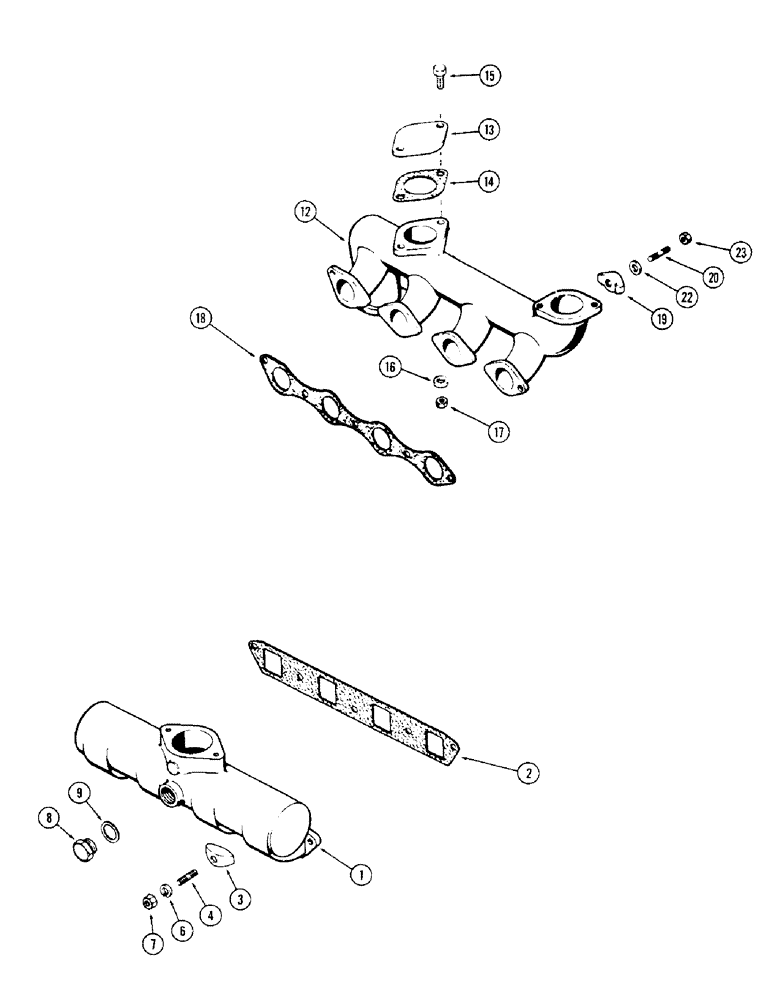

Запчасти Case 350 (012) - INTAKE MANIFOLD, 188 DIESEL ENGINE, CAST IRON, USED PRIOR TO ENGINE SN 2741545 (01) - ENGINE

1

A35782

MANIFOLD

- intake

1шт.

2

G46871

GASKET

- intake manifold

1шт.

3

A35028

CLAMP

- intake manifold

3шт.

4

A39129

STUD

- manifold clamps, 3/8" NC x 2-1/16"

3шт.

4

A29431

STUD

- manifold ends, 3/8" NC x 1-3/4"

2шт.

6

92-6

LOCK WASHER,3/8"

5шт.

7

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seez-Pruf

5шт.

8

A20917

PLUG

- heater hole

1шт.

9

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

12

A39233

MANIFOLD

ASSEMBLY - exhaust (Replaces G2113), Includes: Ref. 13 - 17

1шт.

13

A38188

PLATE

- cover, exhaust manifold

2шт.

14

G46853

MANIFOLD GASKET

- cover plate, exhaust manifold

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover plate, exhaust manifold Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

16

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - 13/32 x 13/16 x 1/16", exhaust manifold

4шт.

17

131-903

NUT,3/8"-16

NUT - 3/8" NC hex , exhaust manifold

4шт.

18

G46872

MANIFOLD GASKET

- exhaust, Serial Range: manifold-head

1шт.

19

A35028

CLAMP

- exhaust, Serial Range: manifold-head

3шт.

20

A39129

STUD

- manifold clamp, 3/8" NC x 2-1/16", exhaust

3шт.

20

A29431

STUD

- manifold ends, 3/8" NC x 1-3/4", exhaust

2шт.

22

195-25

WASHER,3/8"

- 3/8 x 13/16 x 11/16", exhaust manifold

5шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, exhaust manifold

5шт.
