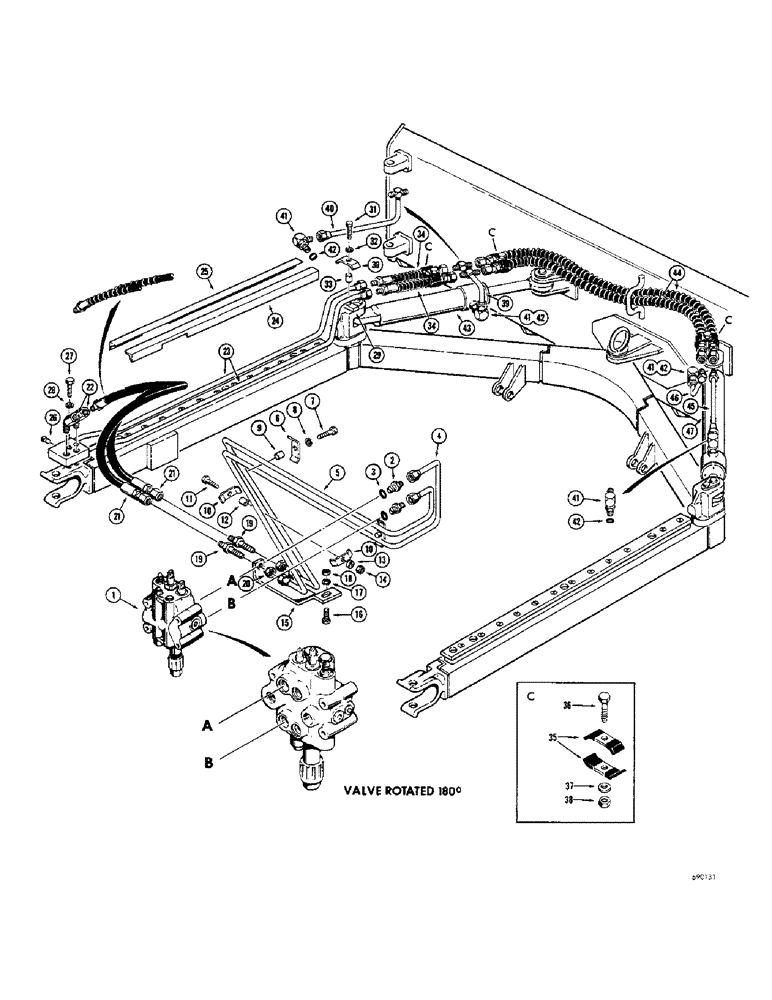

Запчасти Case 350 (194) - ANGLE DOZER - ANGLE HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for proper valves

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

F93478

TUBE - upper control valve port to angling cylinder 0.5" OD

1шт.

5

F93477

TUBE - lower control valve port to angling cylinder

1шт.

6

38331

PLATE

CLAMP - tube

2шт.

7

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

8

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

9

D33551

BUSHING

SPACER - tube clamp

2шт.

10

38331

PLATE

CLAMP - tube

2шт.

11

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16"-18 NC x 1-1/2"

1шт.

12

D33551

BUSHING

SPACER - tube clamp

1шт.

13

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

14

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

15

D30602

GUARD - tubing

1шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

17

92-8

LOCK WASHER,1/2"

1шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

19

50883

UNION - special bulkhead

2шт.

20

25-1112

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF

2шт.

21

D30603

HOSE

- 21-1/4" (5398 MM) long

2шт.

22

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

2шт.

23

D28039

BLOCK

JUNCTION BLOCK AND TUBE ASSEMBLY - on C-frame

1шт.

24

39610

GUARD - tubing, inside

1шт.

25

39611

FINGER

GUARD - tubing, outside

1шт.

26

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT

1шт.

27

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- hex, 1/2" - 20 NF x 1-3/4"

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

39607

SPACER - tube

1шт.

30

36801

GEAR

PLATE - clmap, tube

1шт.

31

214-836

BOLT - hex, 1/2" - 20 NF x 2-1/4"

1шт.

32

92-8

LOCK WASHER,1/2"

1шт.

33

D34003

SPACER - tube clamp

1шт.

34

38614

CLIP

HOSE - tube assembly to LH angling cylinder, 12-5/8" (321 MM) long

2шт.

35

D33316

CLAMP

PLATE - clamp, hose

6шт.

36

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16" - 18 NC x 1-3/4"

3шт.

37

195-21

WASHER,5/16"

- flat, 5/16"

3шт.

38

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

3шт.

39

D28201

TUBE - LH angling cylinder, rod end

1шт.

40

D28203

TUBE ASSY.

TUBE - LH angling cylinder, closed end

1шт.

41

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- special, Includes: Ref. 42

4шт.

42

218-52007

O-RING - elbow

1шт.

43

REF

INSTRUCTION

CYLINDER - angling, LH see figure 224 for cylinders

1шт.

44

D29915

HOSE - 48" (1219.2 MM) long

2шт.

45

D28207

TUBE - RH angling cylinder, rod end

1шт.

46

D28205

PIPE

TUBE - RH angling cylinder, closed end

1шт.

47

REF

INSTRUCTION

CYLINDER - angling, RH, see figure 224 for cylinders

1шт.
