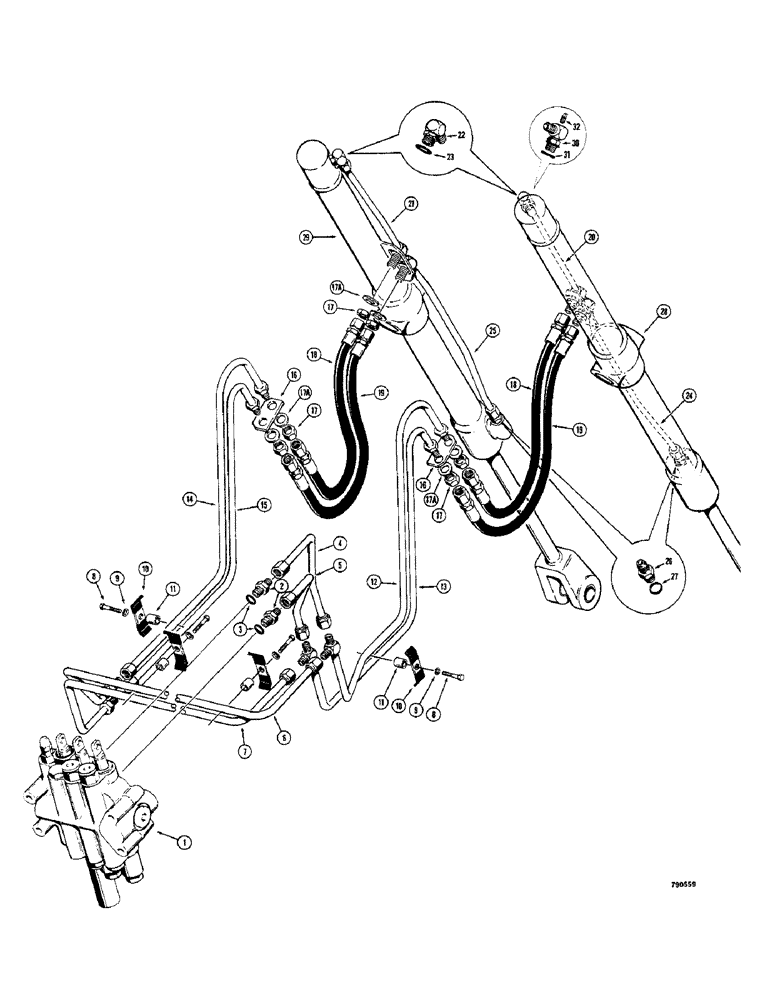

Запчасти Case 350 (192) - DOZER LIFT HYDRAULIC CIRCUIT, USED ON POWER ANGLE TILT DOZER SN 3047966 AND AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for proper valves

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

R24657

TUBE - upper, at valve

1шт.

5

R24655

TUBE - lower, at valve

1шт.

6

R24667

TUBE

- upper, crossover

1шт.

7

R24669

TUBE

- lower, crossover

1шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4"

4шт.

9

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

10

R17319

CLAMP

- tube

4шт.

11

D33552

BUSHING

SPACER - tube

4шт.

12

R24665

TUBE - hydraulic, upper right hand

1шт.

13

R24659

TUBE,0.625" OD

- hydraulic, lower right hand

1шт.

14

R24663

TUBE,668.02, 360.68 mm L

- hydraulic, upper left hand

1шт.

15

R24661

TUBE

- hydraulic, lower left hand

1шт.

16

R24648

BRACKET - hose and tube mounting

2шт.

17

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

8шт.

17a

D49345

WASHER

- special

12шт.

18

D28524

HOSE

- upper, 21" (533 MM) long

2шт.

19

L50840

HOSE

- lower, 24" (610 MM) long

2шт.

20

R24649

TUBE - closed end of cylinder, right hand

1шт.

21

R24650

TUBE - closed end of cylidner, left hand

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree

1-2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

R24652

TUBE - rod end of cylinder, right hand

1шт.

25

R24653

TUBE - rod end of cylinder, left hand

1шт.

26

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

28

REF

INSTRUCTION

CYLINDER - lift, right hand, see figure 222 for cylinder

1шт.

29

REF

INSTRUCTION

CYLINDER - lift, left hand, see figure 222 for cylinder

1шт.

30

R19576

FITTING

ELBOW - special, 90 degree, if used

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

32

221-11

PLUG,Sq Hd, 1/8"-27

- elbow, if used

1шт.
