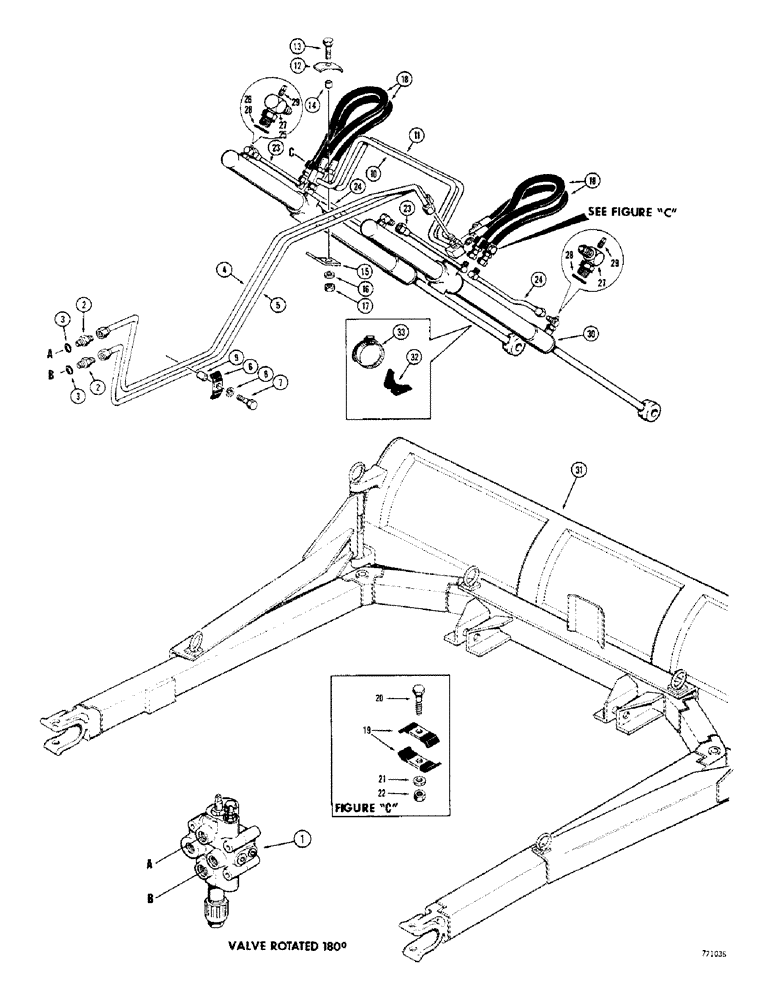

Запчасти Case 350 (190) - DOZER LIFT HYD.CIRCUIT USED ON ALL MODEL EXCEPT PWR.ANGLE TILT DOZ.,PWR.ANGLE TILT DOZ.BEF.SN3047966 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for proper valves

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D38158

TUBE - upper control valve port to lift cylinder - closed end

1шт.

5

D38156

TUBE - lower control valve port to lift cylinder - rod end

1шт.

6

R17319

CLAMP

PLATE - clamp, tube

1шт.

7

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4"

1шт.

8

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

9

D33552

BUSHING

SPACER - clamp

1шт.

10

D36077

TUBE

- crossover, lift cylinder - closed end

1шт.

11

D36078

TUBE

- crossover, lift cylinder - rod end

1шт.

12

R17319

CLAMP

PLATE - clamp, tube

2шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16" - 18 NC x 1-3/4"

2шт.

14

D33552

BUSHING

SPACER - clamp

2шт.

15

D36751

BRACKET - mounting

2шт.

16

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

17

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

2шт.

18

D26792

HOSE - 26" (660 MM) long

4шт.

19

D33316

CLAMP

PLATE - clamp, hose, all models except power angle-tilt models

4шт.

20

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16" - 18 NC x 1-3/4"

2шт.

21

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

22

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

2шт.

23

D27785

TUBE - cylinder, closed end, mechanical angling dozer

2шт.

23

D28214

TUBE - cylinder, closed end, power angling dozer

2шт.

23

D30605

TUBE - cylinder, closed end, power tilt dozer

2шт.

23

D46639

TUBE - cylinder, closed end, power angle-tilt dozer

2шт.

24

D27783

TUBE - cylinder, rod end, mechanical angling dozer

2шт.

24

D28216

TUBE - cylinder, rod end, power angling dozer

2шт.

24

D30607

TUBE - cylinder, rod end, power tilt dozer

2шт.

24

D46637

TUBE - cylinder, rod end, power angle-tilt dozer

2шт.

25

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 degree, Incl. Ref. 26

2-3шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

R19576

FITTING

- special, 90 degree, Includes: Ref. 26

1-2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8" NPT, square head

1-2шт.

30

REF

INSTRUCTION

CYLINDER - lift, see figure 222 for cylinders

2шт.

31

16741

MOLDBOARD - mechanical angling dozer, see figure 366

1шт.

31

D51971

MOLDBOARD - power angling dozer, see figure 368

1шт.

31

D25701

MOLDBOARD - power tilt dozer, see figure 372

1шт.

31

D45867

MOLDBOARD - power angle-tilt dozer, see figure 376

1шт.

32

D38648

BLOCK

CUSHION - rubber, power angle-tilt dozer

4шт.

33

214-34

X

CLAMP - tube, power angle-tilt dozer

4шт.
