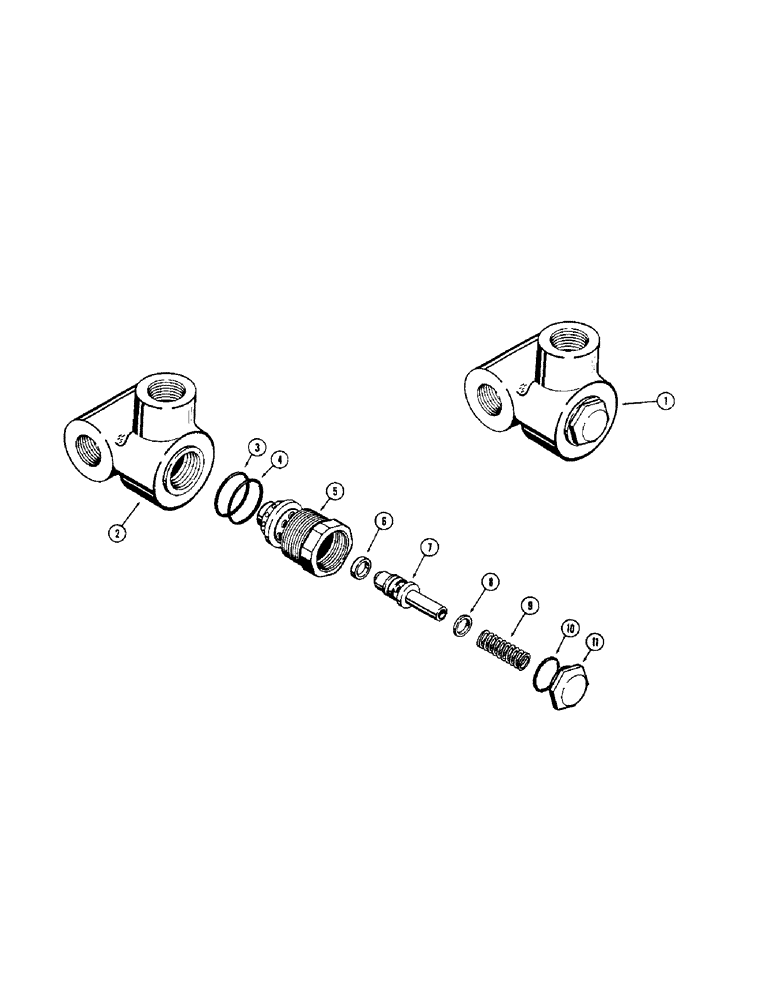

Запчасти Case 350 (188) - D40200 RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

D40200

VALVE - relief, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - valve, relief

1шт.

3

D39718

O-RING,0.989" ID x 1.129" OD

- inner

1шт.

4

D39717

O-RING,1.051" ID x 1.191" OD

- body

1шт.

5

D39715

BODY - relief

1шт.

6

D39714

RING

- piston

1шт.

7

D66490

VALVE POPPET

POPPET - relief

1шт.

8

D39712

SHIM

- .010" (.254 MM)

1шт.

8

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

8

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

9

D39709

SPRING

- valve

1шт.

10

D32110

O-RING

- cap

1шт.

11

D39716

PLUG

CAP - valve

1шт.
