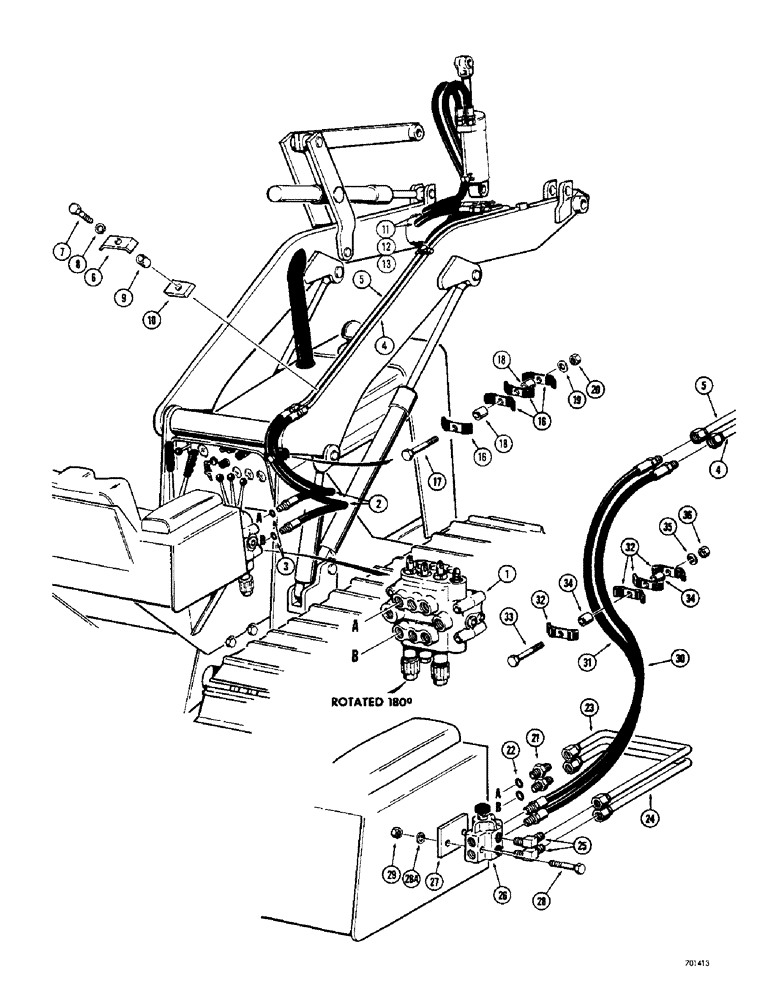

Запчасти Case 350 (186) - LOADER ARM AUXILIARY HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figure 340 for proper valve

1шт.

2

D34415

HOSE

- 35-1/2" (902 MM) long, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

4

D34417

TUBE

- upper valve, Serial Range: port-cylinder

1шт.

5

D34419

TUBE

- lower valve, Serial Range: port-cylinder

1шт.

6

38331

PLATE

- clamp

3шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

8

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

3шт.

9

D33551

BUSHING

SPACER - clamp

3шт.

10

D24663

BLOCK

- mounting, clamp

3шт.

11

D34401

HOSE ASSY.

HOSE - 60" (1540 MM) long, use with D34421 Drott bucket only

2шт.

12

D31366

HOSE ASSY.

HOSE - 30" (762 MM) long, use with D51664 4-in-1 bucket

2шт.

13

D39919

HOSE - 39" (991 MM) long, use with grapple attachment only

2шт.

16

D33316

CLAMP

PLATE - clamp, hose

4шт.

17

13-554

BOLT - hex, 5/16" - 18 NC x 3-3/8"

1шт.

18

D33829

BUSHING

SPACER - clamp

2шт.

19

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, used on models with ripper, three point hitch & pull behind hydraulics, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector, used on models with ripper, three point hitch & pull behind hydraulics

1шт.

23

D38151

TUBE

- upper control valve port to upper diversion valve port, used on models with ripper, three point hitch & pull behind hydraulics

1шт.

24

D38149

TUBE

- lower control valve port to lower diversion valve port, used on models with ripper, three point hitch & pull behind hydraulics

1шт.

25

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, used on models with ripper, three point hitch & pull behind hydraulics

2шт.

26

D34424

VALVE

- diversion, parts list figure 188, used on models with ripper, three point hitch & pull behind hydraulics

1шт.

27

D34426

BRACKET - diversion valve mounting, used on models with ripper, three point hitch & pull behind hydraulics

1шт.

28

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8" - 16 NC x 3", used on models with ripper, three point hitch & pull behind hydraulics

2шт.

28a

92-6

LOCK WASHER,3/8"

used on models with ripper, three point hitch & pull behind hydraulics 3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used on models with ripper, three point hitch & pull behind hydraulics

2шт.

30

D34466

HOSE - 40-1/2" (1029 MM) long, used on models with ripper, three point hitch & pull behind hydraulics

1шт.

31

D34464

HOSE - 42-1/2" (1080 MM) long, used on models with ripper, three point hitch & pull behind hydraulics

1шт.

32

D33316

CLAMP

PLATE - clamp, hose, used on models with ripper, three point hitch & pull behind hydraulics

4шт.

33

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16" - 18 NC x 3-1/4", used on models with ripper, three point hitch & pull behind hydraulics

1шт.

34

D33829

BUSHING

SPACER - clamp, used on models with ripper, three point hitch & pull behind hydraulics

2шт.

35

92-5

LOCK WASHER,5/16"

WASHER - lock, , used on models with ripper, three point hitch & pull behind hydraulics 5/16"

1шт.

36

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, used on models with ripper, three point hitch & pull behind hydraulics

1шт.
