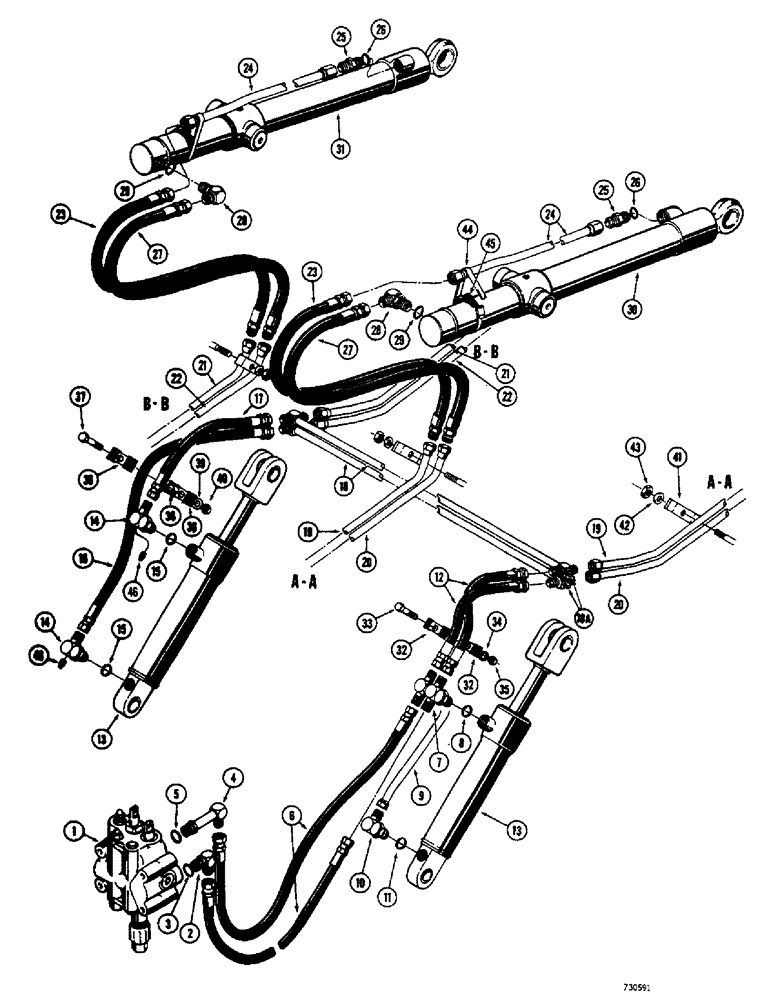

Запчасти Case 350 (182) - LOADER HYDRA-LEVELING AND BUCKET TILT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for proper valve

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - male, 90 degree, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D25136

FITTING

- special, 90 degree, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

D27478

HOSE ASSY.

HOSE - 22" (559 MM) long

2шт.

7

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

D35688

TUBE

- valve to RH cylinder

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - male, 90 degree, Incl. Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

D33346

HOSE

- 25" (635 MM) long, except ROPS models, Serial Range: -3050472

2шт.

12

F93300

HOSE

- 29" (737 MM) long, or previous ROPS models, Start Serial: 3050472

2шт.

13

REF

INSTRUCTION

CYLINDER - hydra-leveling, see page 220 for cylinders

2шт.

14

R19576

FITTING

- male, 90 degree, Includes: Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

D37186

HOSE - 37-1/2" (953 MM) except ROPS models, Serial Range: -3050472

1шт.

16

F93302

HOSE ASSY.

HOSE - 42" (1067 MM) long, or previous ROPS models, Start Serial: 3050472

1шт.

17

D37187

HOSE - 25" (635 MM) long, except ROPS models, Serial Range: -3050472

1шт.

17

F93301

HOSE ASSY.

HOSE - 29" (737 MM) long, or previous ROPS models, Start Serial: 3050472

1шт.

18

D36843

TUBE - crossover, except ROPS models, Includes: Ref. 18A, Serial Range: -3050472

2шт.

18

F93299

TUBE,0.625" OD x 27" L

- crossover, or previous ROPS models18A, Start Serial: 3050472

2шт.

18a

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT if used

1шт.

19

D33334

TUBE ASSY.

TUBE - RH upper, except ROPS models, Serial Range: -3050472

1шт.

19

F93294

TUBE,0.625" OD

- RH upper, or previous ROPS models, Start Serial: 3050472

1шт.

20

D33336

TUBE

- RH lower, except ROPS models, Serial Range: -3050472

1шт.

20

F93296

HYD TUBE,0.625" OD

TUBE - RH lower, or previous ROPS models, Start Serial: 3050472

1шт.

21

D33338

TUBE - LH upper, except ROPS models, Serial Range: -3050472

1шт.

21

F93295

TUBE,0.625" OD

- LH upper, or previous ROPS models, Start Serial: 3050472

1шт.

22

D33340

TUBE - LH lower, except ROPS models, Serial Range: -3050472

1шт.

22

R93297

TUBE - LH lower, or previous ROPS models, Start Serial: 3050472

1шт.

23

D32288

HOSE ASSY.

HOSE - 29-1/2" (749 MM) long

2шт.

24

D33328

TUBE ASSY.

TUBE - crossover to dump cylinder, rod end

2шт.

25

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

D24571

HOSE

- 30-3/4" (781 MM) long

2шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - male, 90 degree, Incl. Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

REF

INSTRUCTION

CYLINDER - bucket, dump, see figure 220 for cylinders

1шт.

31

REF

INSTRUCTION

CYLINDER - bucket, dump, see figure 220 for cylinders

1шт.

32

D33316

CLAMP

PLATE - clamp, hose

2шт.

33

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

35

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

36

D33316

CLAMP

PLATE - clamp, hose

2шт.

37

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

38

D36524

BUSHING

SPACER - clamp, 31/32" (25 MM) long, except ROPS models, Serial Range: -3050472

1шт.

38

A19177

SPACER

- clamp, 13/16" (21 MM) long, or previous ROPS models, Start Serial: 3050472

1шт.

39

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

40

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

41

R17319

CLAMP

PLATE - clamp, tube

4шт.

42

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

4шт.

44

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - tube, adjustable

2шт.

45

D38648

BLOCK

CUSHION - rubber

2шт.

46

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

2шт.
