(178[1]) - D43567 HYDRAULIC OIL FILTER

Запчасти Case 350 (178[1]) - D43567 HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

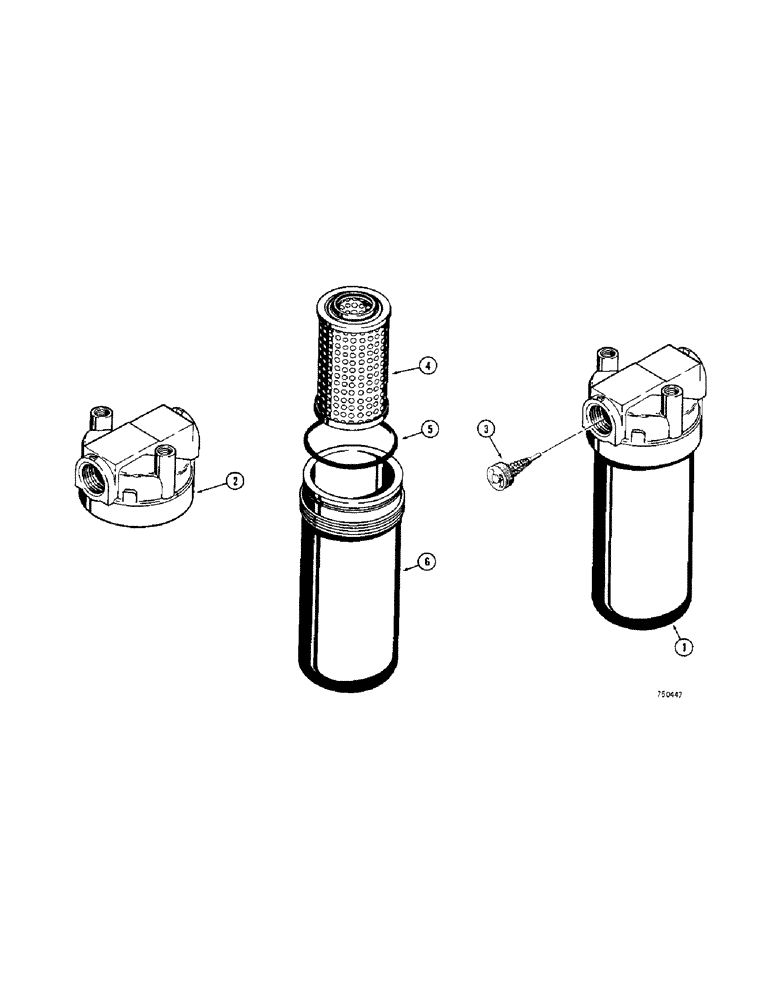

Схема запчастей Case 350 - (178[1]) - D43567 HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM
5
3
2
6
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D43567

FILTER ASSY

- hydraulic oil, Includes: Ref. 2 - 6

1шт.

2

D61903

HEAD

- filter, Includes: Ref. 3

1шт.

3

D58199

VALVE

- bypass

1шт.

D43800

FILTER, ELEMENT

KIT - filter, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

5

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- element

1шт.

6

D42439

HOUSING

- filter

1шт.
