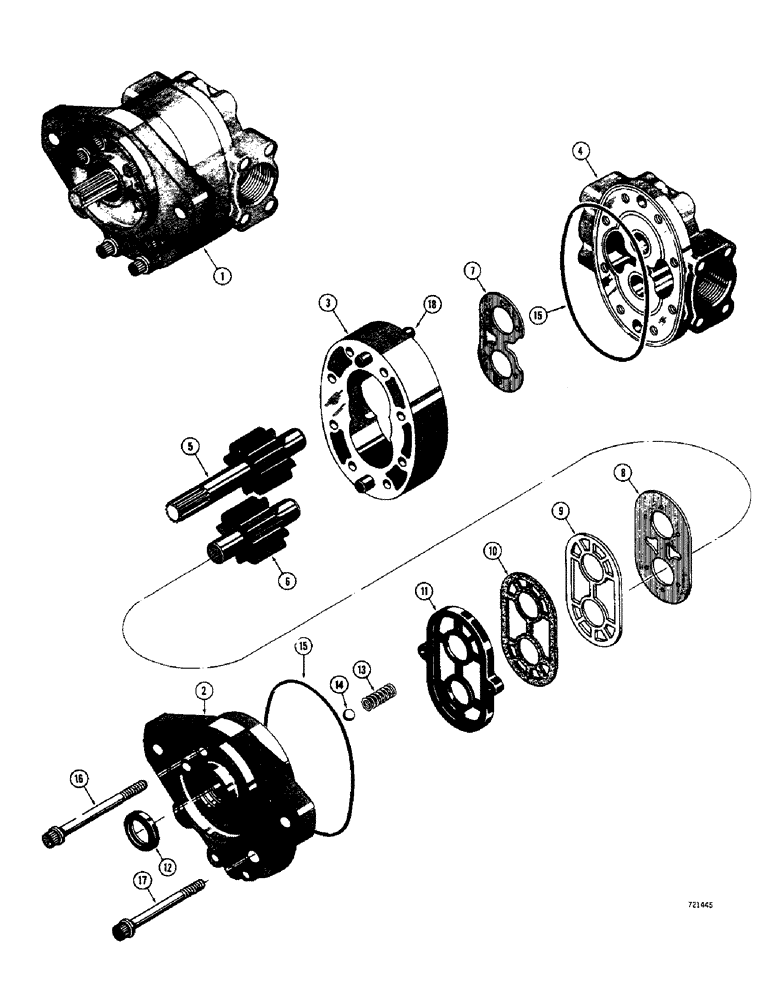

Запчасти Case 350 (176) - R24624 HYDRAULIC PUMP, POWER ANGLE TILT DOZER, TRACTOR SN 3047966 AND AFTER (07) - HYDRAULIC SYSTEM

1

R24624

PUMP

- hydraulic, Cessna no. 24502-LAN, Includes: Ref. 2 - 18

1шт.

1

RR24624

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - N.A. Only

1шт.

1

RC24624

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

2

R25505

COVER

- drive shaft end

1шт.

3

R25508

BODY

- cover

1шт.

4

R26378

LARGE PLATE

COVER - port end

1шт.

R25512

GEAR SET

- drive and driven, Includes: Ref. 5 and 6

1шт.

5

R25513

GEAR

AND SHAFT ASSEMBLY - drive

1шт.

6

R25514

GEAR WHEEL

GEAR AND SHAFT ASSEMBLY - idler

1шт.

D59656

GASKET KIT

KIT - seal, Includes: Ref. 7 - 15

1шт.

7

A45358

PLATE

- thrust

1шт.

8

H335331

DIAPHRAGM

- pump

1шт.

9

H260935

GASKET

- protector

1шт.

10

H260927

GASKET

GAKSET - backup

1шт.

11

H273912

SEAL

- diaphragm

1шт.

12

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- drive shaft

1шт.

13

D31403

SPRING

- ball retaining, R24624 pump uses 1

2шт.

14

211-312

BALL,13/32" Dia

- steel, R24624 pump uses 1

2шт.

15

H756221

O-RING,4.987" ID x 5.193" OD

- cover

2шт.

16

166-53

SCREW,Flg, 3/8" - 16 x 3", Gr 8

- ferry cap, 3/8" - 16 NC x 3"

4шт.

17

166-52

12 PT SCREW,Flg, 3/8" - 16 x 2 3/4", Gr 8

SCREW - ferry cap, 3/8" - 16 NC x 2-3/4"

4шт.

18

A40785

AXLE PIN,12.7mm OD x 63.5mm L

DOWEL - body

2шт.
