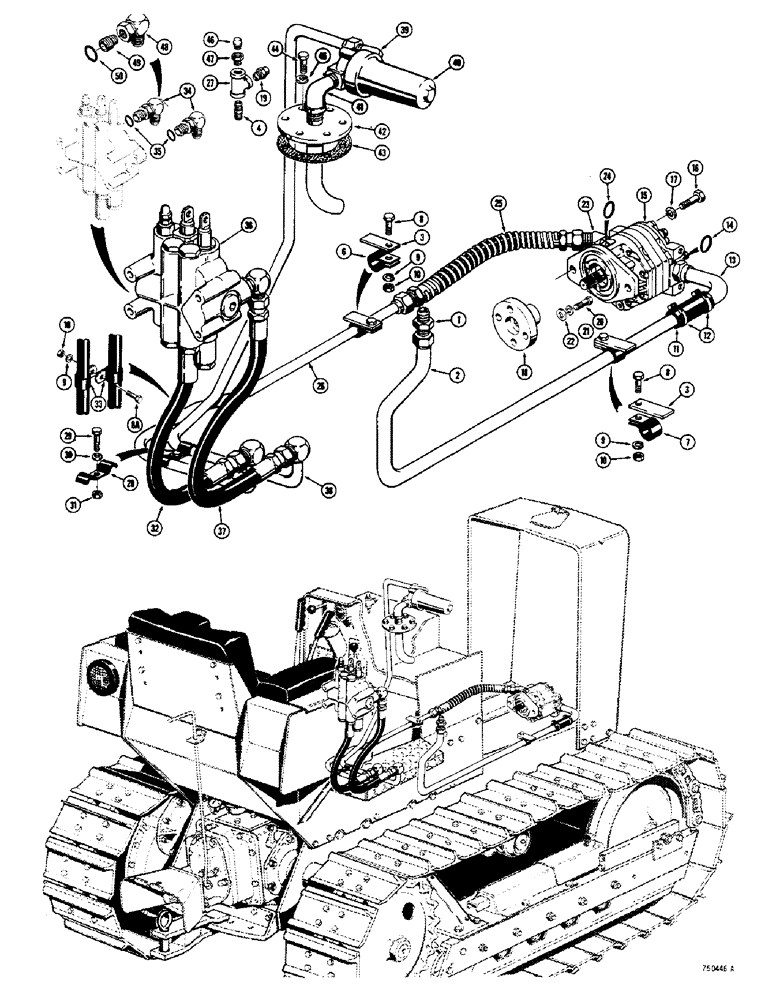

Запчасти Case 350 (170) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO RESERVOIR AND VALVE (07) - HYDRAULIC SYSTEM

1

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

CONNECTOR - straight, male

1шт.

2

D48521

TUBE - reservoir to pump, rear section

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - tube clamp, on engine frame

2шт.

4

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe

1шт.

6

R14668

CLAMP

- tube

1шт.

7

D40471

CLAMP

- tube

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

8a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

9

92-6

LOCK WASHER,3/8"

3шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

11

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- reservoir to pump 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

12

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

13

D48514

CONNECTOR - hose, stem, used on D39525 and D52444 pumps, Includes: Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

13

R24621

TUBE,1.25" OD x 4.8, 3.2" L

CONNECTOR - hose, stem, used on R24623 and R24624 pumps, Includes: Ref. 14

1шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- R24621 stem

1шт.

15

REF

INSTRUCTION

PUMP - hydraulic, see figures 172 thru 176 for pumps

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

REF

INSTRUCTION

HUB - pump drive coupling, see figure 178 for proper hub

1шт.

19

R15538

VALVE

- breather

1шт.

20

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

21

92-7

LOCK WASHER,7/16"

4шт.

22

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- special

4шт.

23

D48530

CONNECTOR - 45 degree, adjustable, used on D39525 and D52444 pump, Includes: Ref. 24

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- connector

1шт.

23

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - 45 degree, adjustable, used on R24623 and R24624 pump, Includes: Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

25

D49001

HOSE - 18-1/2" (470 MM) long, Serial Range: -3046501

1шт.

25

D52405

HOSE ASSY.

HOSE - 17-1/32" (433 MM) long, Start Serial: 3046501

1шт.

26

D48517

TUBE

- pump to control valve

1шт.

27

221-431

TEE

- pipe

1шт.

28

D42833

CLAMP

- tube

2шт.

29

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

30

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

31

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex, lock, 7/16" - 14 NC

1шт.

32

D49224

HOSE

- 28" (711 MM) long

1шт.

33

D40471

CLAMP

- hose

2шт.

34

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 35 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1-2шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

36

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for valves

1шт.

37

D49223

HOSE

- 36" (914 MM) long

1шт.

38

D48519

TUBE - control, Serial Range: valve-reservoir

1шт.

39

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree, male

1шт.

40

D43567

FILTER ASSY

- hydraulic oil, parts list figure 178

1шт.

41

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

FITTING - 90 degree, male

1шт.

42

D36898

PIPE CLAMP

RETURN TUBE AND COVER ASSEMBLY - hydraulic oil

1шт.

43

36321

GASKET

- return tube and cover

1шт.

44

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex, 3/8" - 24 NF x 1", used on D48503 cowl

6шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used on D51345 cowl Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

45

D32117

COPPER WASHER

WASHER, COPPER, Special

6шт.

46

R15536

VALVE

- relief

1шт.

47

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducing, 1/4" x 1/8"

1шт.

48

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree

1шт.

49

D28890

CONNECTOR, ELEC

CONNECTOR - straight, Includes: Ref. 50

1шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.
