Запчасти Case 350 (110) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

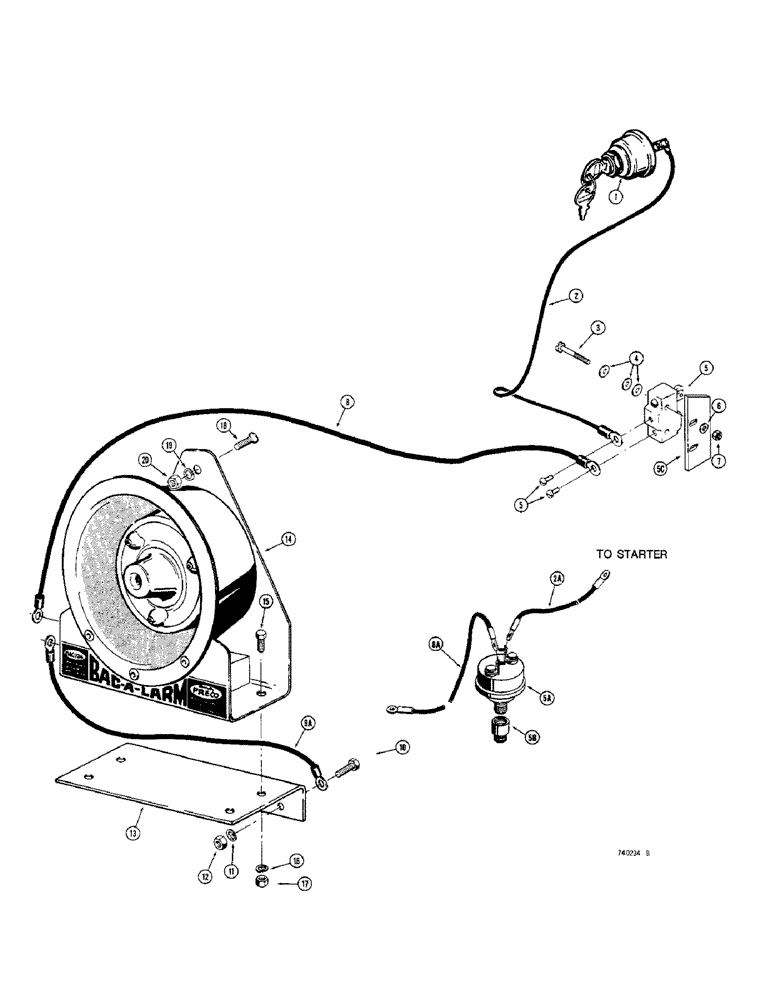

Схема запчастей Case 350 - (110) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS
6
5c
2
9a
13
5b
7
12
2a
16
18
10
1
11
8a
5a
15
5
20
5
4
3
8
17
19
14

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

SWITCH - key, see figures 90 and 92

1шт.

2

R34960

ELECTRICAL WIRE

WIRE - key switch to L54683 alarm switch, 40" (1016 MM) long

1шт.

2a

R41005

WIRE - starter to L57459 switch, 24" (607 MM) long

1шт.

3

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- fillister head, slotted, no. 6-32 NC x 1-1/4"

2шт.

4

195-7

WASHER,#6

- flat, no. 6

6шт.

5

L54683

SWITCH

- alarm, roller actuated, if used

1шт.

5a

L57459

SWITCH

- alarm, oil pressure actuated, if used

1шт.

5b

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" NPT to 1/8" NPT

1шт.

5c

R30312

PLATE - switch mounting

1шт.

6

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

7

129-15

NUT,#6-32

2шт.

8

R34963

ELECTRICAL WIRE

WIRE - L54683 alarm switch to alarm, 72" (1829 MM) long

1шт.

8a

R41004

WIRE - L57459 switch to alarm, 784" (2134 MM) long

1шт.

9

G44009

WIRE - ground, use with L54683 switch

1шт.

9a

R41006

ELECTRICAL WIRE

WIRE - ground, use with L57459 switch, 4" (102 MM) long

1шт.

10

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

R30310 bracket Hex, 1/4"-20 x 1 1/4", G5

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

13

R30310

BRACKET - mount, early production models

1шт.

14

S223033

BUZZER

ALARM - backup

1шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

R30310 bracket Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

25-104

NUT,1/4"-20, G5

4шт.

18

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- machine, flat head, 1/4" - 20 NC x 3/4"

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

25-104

NUT,1/4"-20, G5

3шт.

Выбрано товаров: 26
