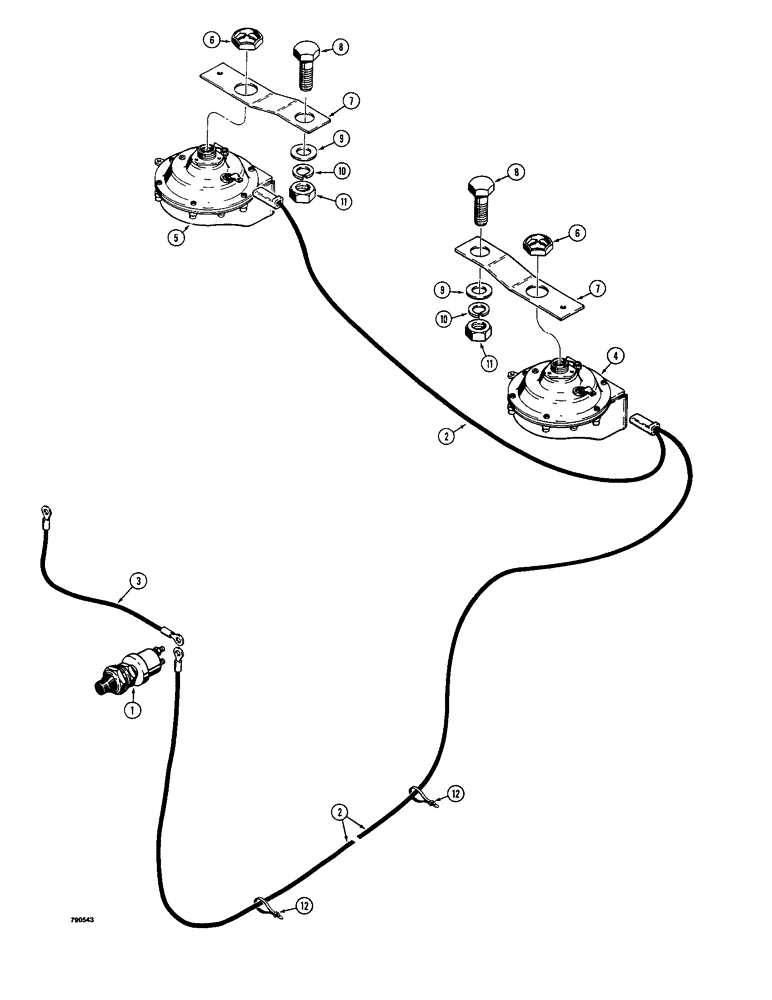

Запчасти Case 350 (108) - HORN (06) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- horn, push button

1шт.

2

R41111

ELECTRICAL WIRE

WIRE -, Serial Range: switch-horn

1шт.

3

F21342

ELECTRICAL WIRE

WIRE -, Serial Range: ground-ammeter

1шт.

4

S203189

HORN

- A-note

1шт.

5

S203187

HORN - F-note

1шт.

6

L30866

LOCK NUT

- special, 7/8" - 20 NC

2шт.

7

R39064

BRACKET, SUPPORTING

BRACKET - horn

2шт.

8

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

9

195-34

WASHER - flat, 1/2"

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

12

R40745

STRAP

TIE - wire

1шт.
