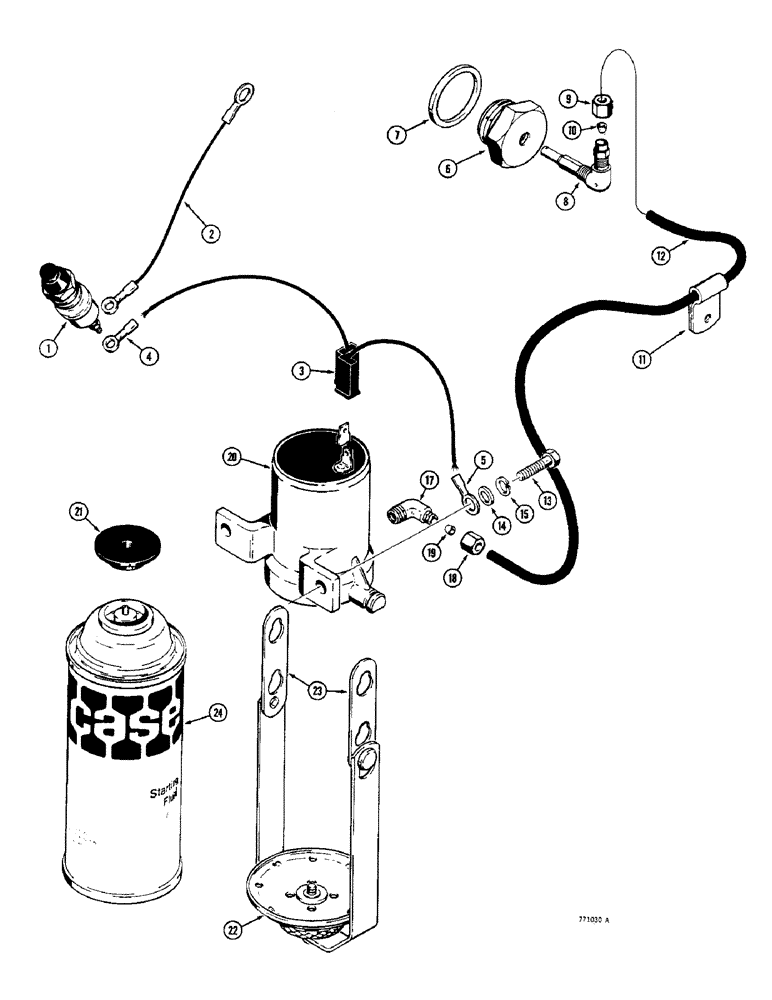

Запчасти Case 350 (106) - COLD START SYSTEM (06) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- push button

1шт.

2

F21342

ELECTRICAL WIRE

WIRE - jumper

1шт.

3

R29794

CABLE

-, Serial Range: switch-solenoid

1шт.

4

223-325

TERMINAL - eyelet, no. 10

1шт.

5

223-326

TERMINAL - eyelet, 5/16"

1шт.

6

L10283

PLUG

- manifold

1шт.

7

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

8

R36920

INJECTOR ASSY.

INJECTOR - ether, Includes: Ref. 9 and 10

1шт.

9

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

10

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

11

D43839

CLAMP

- tube

1шт.

12

D35275

TUBE

- nylon, 24" (610 MM) long, Serial Range: cut-fit

1шт.

12

D43836

TUBE

- nylon, 16" (406 MM) long

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

15

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

A143381

SOLENOID

- ether injector, Includes: Ref. 17 - 22

1шт.

17

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1шт.

18

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

19

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

20

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

21

R30786

GASKET

- can

1шт.

22

R30785

BAIL

- can

1шт.

23

R30812

LINK

- bail extension

2шт.

24

B17072

START SPRAY FLUID

CAN - ether, 16 oz. (473.18 ML)

1шт.
