Запчасти Case 350 (104) - LIGHTS, USED BEFORE SN 3054401 (06) - ELECTRICAL SYSTEMS

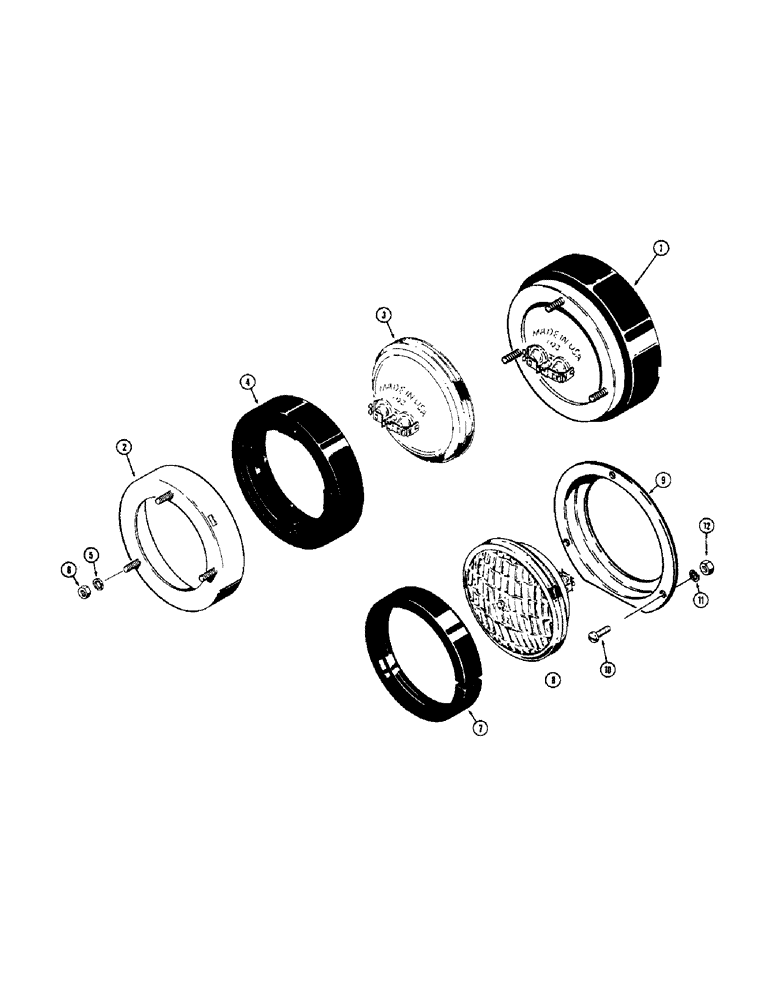

Схема запчастей Case 350 - (104) - LIGHTS, USED BEFORE SN 3054401 (06) - ELECTRICAL SYSTEMS
11
5
12
6
8
9
7
10
1
4
3
2

Артикул

Название

Примечание

Количество

1

D30243

LAMP

LIGHT ASSEMBLY - complete, Includes: Ref. 2 - 4

3шт.

2

NSS

NOT SOLD SEPARAT

FRAME - lamp retaining

1шт.

3

A42294

SEALED BEAM UNIT

LAMP - sealed unit

1шт.

4

D31441

RETAINER

- rubber, guide lamp

1шт.

4

A25213

RETAINER

- rubber, Hobbs

1шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

9шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10-24 NC, plated

9шт.

7

D57287

RETAINER

SEAL - light, rubber retainer, as service replacement, Start Serial: 3054401

3шт.

8

A42294

SEALED BEAM UNIT

LAMP - sealed unit, as service replacement, Start Serial: 3054401

3шт.

9

D57288

RING

RETAINER - light, as service replacement, Start Serial: 3054401

3шт.

10

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head, no. 10-24 NC x 1/2", as service replacement, Start Serial: 3054401

9шт.

11

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , As service replacement #10, Start Serial: 3054401

9шт.

12

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC, plated, as service replacement, Start Serial: 3054401

9шт.

Выбрано товаров: 13
